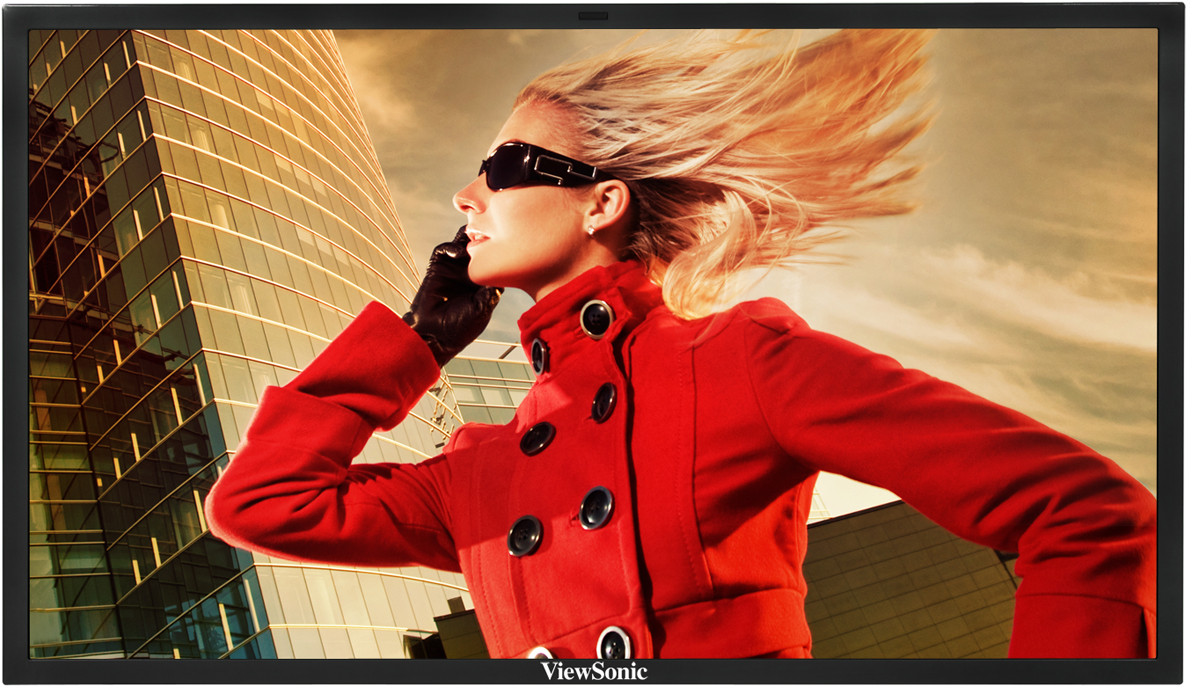

CDP6530
Основні особливості
Опис товару
ViewSonic’s new CDP6530 full HD commercial display with 1920 x 1080p, 500 nits (typ) panel with 20,000:1 dynamic contrast ratio. Additional features include versatile inputs – HDMI, DVI, VGA, S-video and composite, YPbPr (BNC) with built in 12Wx2 speakers and 12Wx2 speaker output connections. The CDP6530 can be used to make up to a 10x10 display video wall applications and automatic scheduler. RS232 daisy chain and DDC/CI is also provided for remote control. VGA and composite video output is also provided for video loop through applications.
Відвідайте нас
- www.viewsonic.com
-
COLORS
Black -
LCD
Тип: 65" (64.6" viewable) colour TFT active matrix, wide LCD Коефіцієнт контрастності: 5000:1 (typ) Кути перегляду: 178º horizontal, 178º vertical Яскравість: 500 cd/m2 (typ) Display Area: 56.2" horizontal x 31.6" vertical; 64.6" diagonal Optimum Resolution: 1920 x 1080, 600mm dot pitch Час відповіді: 8ms Джерело світла: Long life, 50,000 hrs. (typ) Співвідношення сторін: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Фізичні (ШxВxГ): 59.3" x 35.4" x 5.3" (W x H x D) (1500mm x 900mm x 136mm) -
ВМІСТ УПАКОВКИ
LCD display, power cable, remote control with batteries,
User Guide CD -
AUDIO
Amplifier: 12-watt / 8 ohm -
INPUT
Відео вхід: HDMI, DVI, component, VGA, S-video, CVBS (BNC) Video Output: VGA, component, DVI (Loop through) Control Input/Output: RS-232 -
INPUT SIGNAL
TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p -
CONNECTOR
Digital: HDMI, DVI, S-video YPbPr, CVBS Живлення: 3-pin plug Analog: 15-pin mini D-sub (VGA) -
POWER
Напруга: AC 100–240V (universal), 50–60Hz Споживання: 520W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, colour temperature,
temperature adjust, sharpnessFront Panel: Power, Exit, +, –, Menu/Enter Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, resetАудіо: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position -
OPTIONAL ACCESSORIES AVAILABLE
Stand (optional), Wall Mount (WMK-013),
Wall Mount with Locking Media Player Cradle (WMK-028) -
VESA MOUNT COMPLIANT
VESA 200mm x 400mm, 400mm x 400mm -
WEIGHT
Брутто: 176.4 lb. (80.0 kg) Нетто: 154.3 lb. (70.0 kg) -
OPERATING CONDITIONS
Вологість: 20–90% (non-condensing) Temperature (landscape): 32–104ºF (0–40ºC) Temperature (portrait): 41–95ºF (5–35ºC) -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws. -
AUDIO OUT
Speakers: Internal 12-watt (x2) -
RESOLUTIONS
640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, SECAM, 4.43 NTSC
Component: 480i,480p,720p,1080i,1080p -
Модульний ПК
Open Pluggable Specification slot (OPS) ready
