Комерційні дисплеї

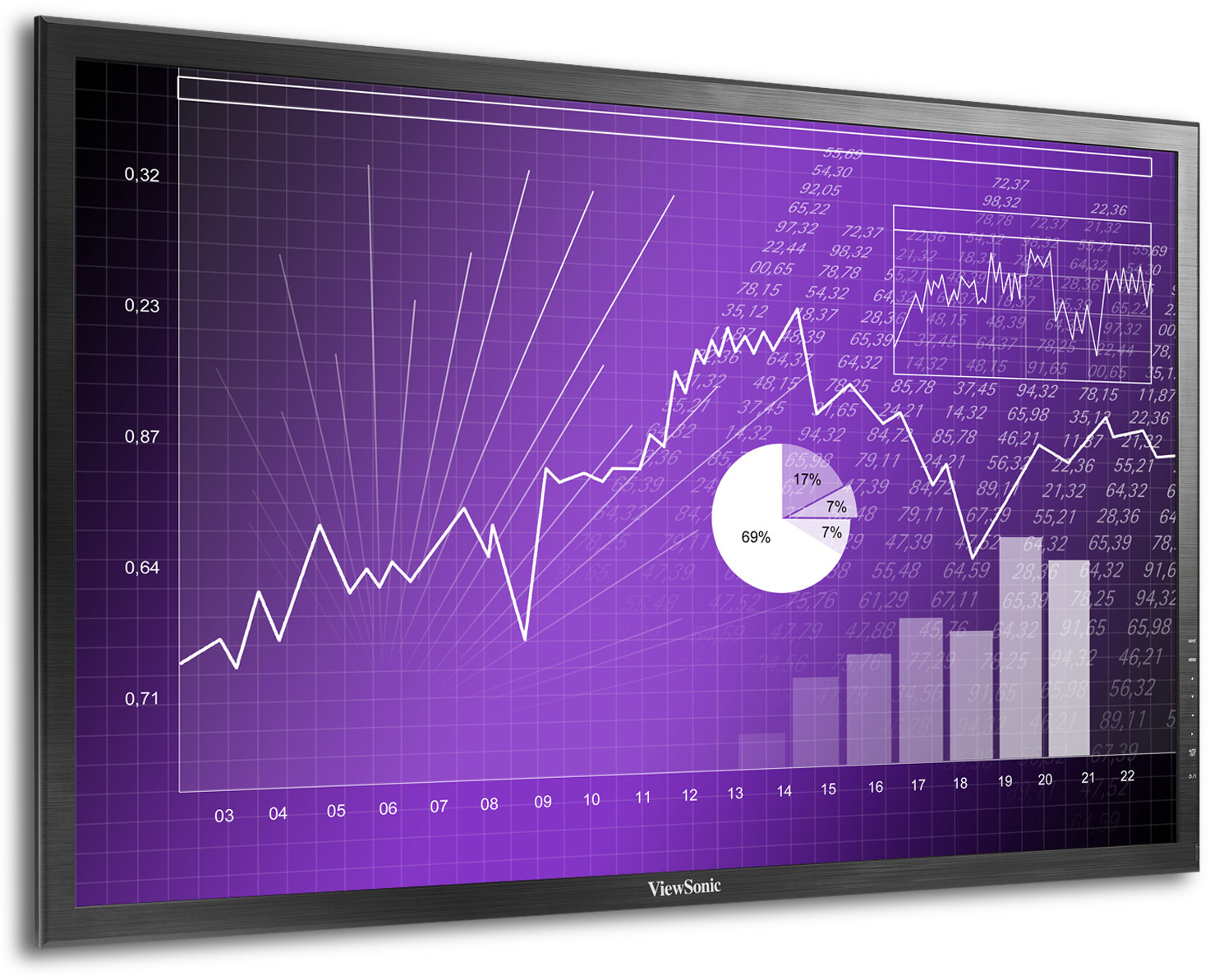

CDP5537-L
Основні особливості
Опис товару
The ViewSonic® CDP5537-L commercial display features Full HD 1920 x 1080p IPS panel technology, fast 120Hz response time and 50,000:1 dynamic contrast ratio. Slim ID design, combined with 33.5mm bezel width makes the CDP5537-L an ideal large screen solution for your digital signage application. Additional features include versatile inputs – HDMI, DVI, VGA, YPbPr and built-in media player utilizing USB storage. Other key features include up to 5x5 tiling for video walls and VGA and DVI loop through support.
Відвідайте нас
- www.viewsonic.com
-
COLORS
Black -
LCD
Тип: 55" (54.6" viewable) colour TFT active matrix, wide LED Коефіцієнт контрастності: 1300:1 (typ) Кути перегляду: 178º horizontal, 178º vertical Яскравість: 450 cd/m2 (typ) Display Area: 47.6" horizontal x 26.7" vertical; 54.6" diagonal Optimum Resolution: 1920x1080, .630mm dot pitch Час відповіді: 12ms Співвідношення сторін: 16:9 Panel Surface: Anti-glare, hard coating (3H) Динамічний коефіцієнт контрастності: 50,000:1 -
DIMENSIONS
Фізичні (ШxВxГ): 50.5" x 29.6" x 1.5" (1281.6mm x 752.4mm x 37.8mm) -
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state, or federal laws. -
INPUT
Відео вхід: HDMI, DVI, component, VGA, DP (Display Port) Video Output: VGA, component, DVI (Loop through) Control Input/Output: RS-232 -
INPUT SIGNAL
TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p -
CONNECTOR
Analogue: 9-pin mini D-sub (VGA) Digital: HDMI, DVI, DP, RGB, A/V, Component Живлення: 3-pin plug -
POWER
Напруга: AC 100–240V (universal), 50–60Hz Споживання: 140W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness Front Panel: Power, Exit, +, –, Menu/Enter Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset Аудіо: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Вхід: ** VGA, DVI, HDMI, YPbPr, DP OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. Position -
OPTIONAL ACCESSORIES
Stand....................................................STND-019
Wall Mount.............................................WMK-013 -
VESA MOUNT COMPLIANT
400mm x 400mm -
WEIGHT
Брутто: 51.2 lb. (45.0 kg) Нетто: 48.1 lb. (21.8 kg) -
OPERATING CONDITIONS
Вологість: 10–80% (non-condensing) Temperature (landscape): 32–104ºF (0–40ºC) Temperature (portrait): 41–95ºF (5–35ºC) -
AUDIO OUTPUT
Amplifier: 10-watt / 8 ohm x 2 -
ВМІСТ УПАКОВКИ
CDP5537-L display, power cable, remote control with batteries, User Guide CD
