CDE5502
Основні особливості
Опис товару

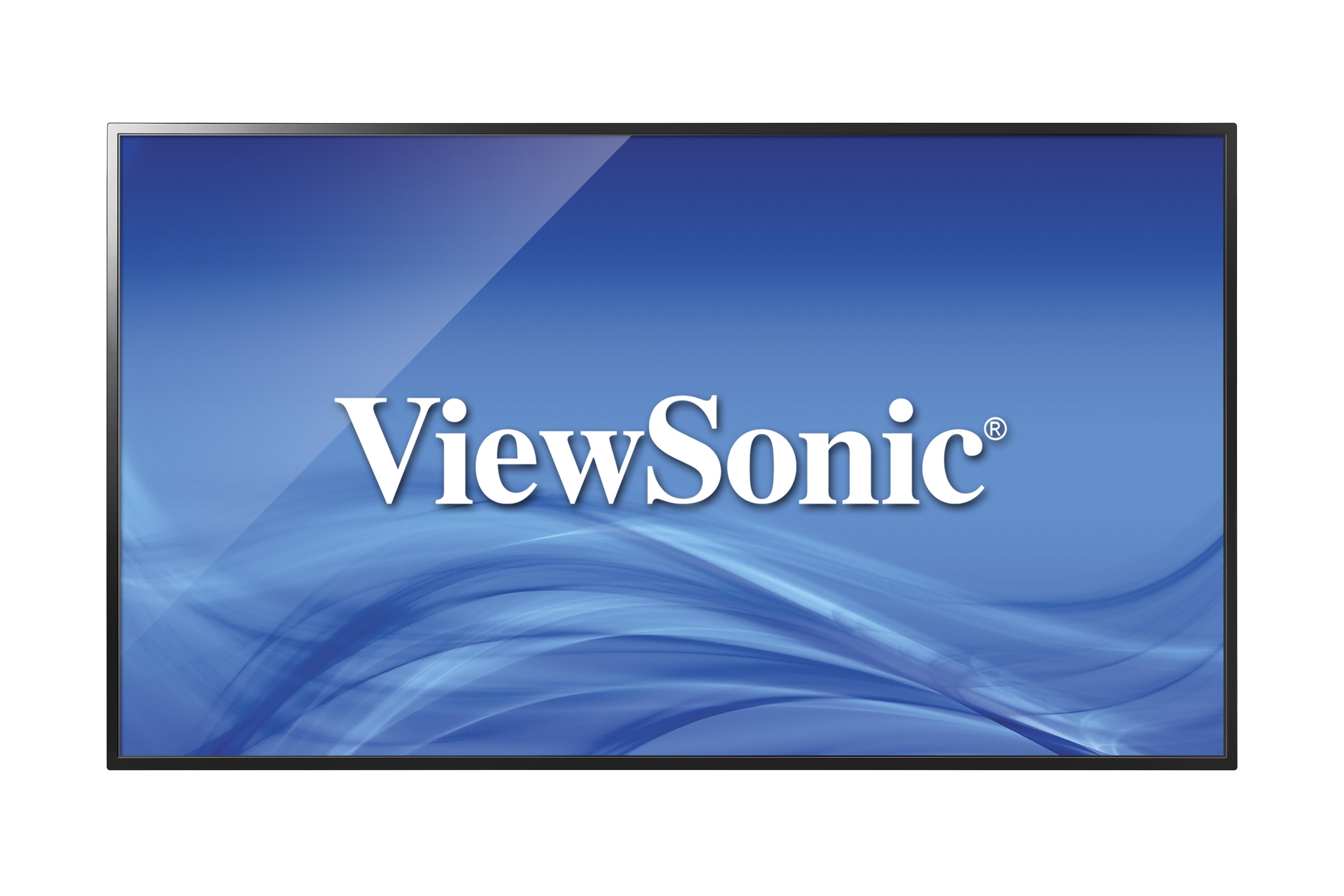

The ViewSonic CDE5502 is a 55’’ (54.6” viewable) Full HD commercial display, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. Integrated with an embedded media player, the CDE5502 is able to easily playback high definition messaging via USB port. Versatile connectivity options also include 2 HDMI ports, VGA, RS232 and SPDIF. With Full HD resolution, 350-nit brightness, and wide viewing angles, the slim-bezel CDE5502 delivers sharp and vivid images to ensure crisp pictures and smooth content playback. HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
Відвідайте нас
- www.viewsonic.com
-
LCD PANEL
Розмір панелі: 55" (54.64") Тип/ Технологія: TFT LCD Module. (IPS, DLED backlight) Площа екрана (мм): 1209.6(H) x 680.4 (V) (54.64” diagonal) Співвідношення сторін: 16:9 Роздільна здатність: 1920x1080 Colors: 16.7M colors Яскравість: 350 nits (typ.) Коефіцієнт контрастності: 1200:1 (typ.) Час відповіді: 9 ms Кути перегляду: H = 178, V = 178 (typ.) Backlight: DLED Термін служби підсвітки: 30,000 Hours (typ.) Обробка поверхні: Anti-Glare, 3H, Haze 2% (typ) -
INPUT
HDMI: x2 (1.4) RGB / VGA: x1 Аудіо: x1 (3.5mm jack) RS232: x1 -
OUTPUT
Аудіо: x1 (Earphone out) (3.5mm jack) SPDIF: x1 -
USB
Type A: x1 (2.0) -
ДИНАМІКИ
10W x2 -
COMPATIBILITY
ПК RGB/HDMI ПК: 480i, 480p,720p,1080i,1080p HDMI: 480i, 480p,720p,1080i,1080p -
CONTROLS
Physical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
PICTURE: Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting
SOUND: Auto sound, Equalizer, Balance, Reset sound settings
CLOCK: Sleep timer, Date/Time.
FEATURES: Language, PC settings, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features
USB MENU: Photo, Music, Movie -
POWER
Напруга: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Споживання: "On" 105W
"Off" (Suspend) < 0.5 W -
ERGONOMICS
Wall Mount (VESA® ): 200x400mm / 400x400mm ; Screw: M6*10mm -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C (Landscape) Вологість: 20% ~ 80% non-condensing -
DIMENSIONS
(W X H X D)Фізичні (дюйми / мм): 1238.6 x 711.1 x 59.9 mm / 48.76 x 28.0 x 2.36 in. Упаковка (дюйм / мм): 1365 x864 x185 mm / 53.74 x 34.02 x 7.28 in. -
WEIGHT
Нетто (фунт/кг): 16.0 kg / 35.27 lbs Брутто (фунт/кг): 23.0 kg / 50.71 lbs -
WARRANTY
**Warranty offered may differ from market to market -
WHAT'S IN THE BOX?
1. CDE5502 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232
*Actual content may differ from market to market
