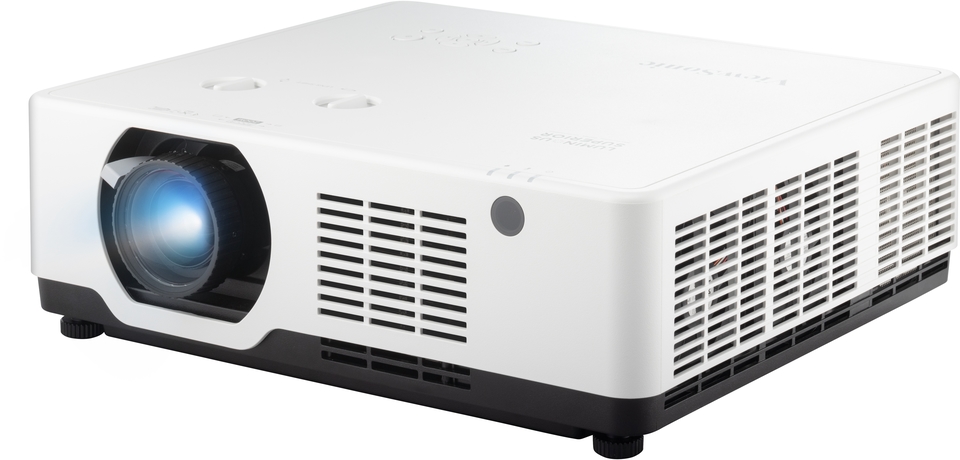

ViewSonic LSC601-4K 6,000 ANSI Lumens 4K Laser Installation Projector - Datasheet

關鍵功能

4K HDR professional-quality visuals
6,000 ANSI Lumens offering bright images in any environment
Up to a 300" ultra-large screen with a lower cost-per-inch
Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
2nd generation laser phosphor technology with a lifespan up to 30,000 hours
Centralized LAN control for efficient management

產品說明

The LSC601-4K is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Equipped with 4K resolution and HDR/HLG support, it delivers professional-quality presentations and stunning visuals. Utilizing 2nd generation laser phosphor technology, this projector offers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300”. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601-4K offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Zoom Ring
Focus Ring
Front IR
S/PDIF
USB-A (5V/2A)
HDMI 2.0/HDCP 2.2
USB-A (5V/2A)
RS232
Audio Out
Rear IR
RJ45
HDBaseT
AC In
LED Indicator
Keypad
Lens Shift Control Knob x2
Power Button

造訪我們

www.viewsonic.com

規格資訊

投影系統:	3LCD (3x0.64" with MLA)
原始解析度:	WUXGA with 4K Enhancement
亮度:	6000 (ANSI Lumens)
Brightness (Center Lumens):	6500
對比率:	3000000:1
Display Color:	1.07 Billion Colors
光源類型:	Laser Phosphor
Light Source Life (hours) with Normal Mode:	20000
Light Source Life (hours) with SuperEco Mode:	30000 (Eco)
鏡頭:	F=1.5-2.08, f=17.2-27.7mm
投影偏移:	0%+/-5%
投射比:	1.2-2.0
光學變焦:	1.6X
數位變焦:	1.0x-2.0x
投影尺寸:	30"-300"
投影距離:	0.80-13.35m (100"@2.66m)
Keystone:	H:+/-25° , V:+/-30°
鏡頭垂直位移範圍:	+66%, 0%
鏡頭水平位移範圍:	+29%, -29%
噪音標準 (正常):	37dB
Audible Noise (Eco):	26dB
輸入延遲:	32ms
支援解析度:	VGA(640 x 480) to 4K(3840 x 2160)
HDTV 相容性:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
水平頻率:	15K-135KHz
垂直掃描率:	24-85Hz

輸入

HDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)

音源輸入 (3.5 mm): 1

USB Type A: 2 (5V/2A)

HDBaseT: 1

RJ45 Input (Internet): Yes
輸出

Audio-out (3.5mm): 1

Audio-out (HDMI ARC): 1
(Share with HDMI Input)

S/PDIF: 1

喇叭: 16W

USB Type A (供電): 2
(USB2.0 - 5V/2A,
share with USB A Input)
調整選項

RS232 (DB 9 針公頭傳輸線): 1

RJ45 (LAN control): 1
(share with RJ45 Internet)

USB Type A (Services): 1
(share with USB A Output)

其他

電源供應電壓:	100-240V+/- 10%, 50/60Hz (AC in)
電源消耗:	Normal: 325W Standby: <0.5W
運作時溫度:	0~40℃
Carton:	Brown
淨重:	7.9kg
Gross Weight:	10.10kg
外觀尺寸 (寬x深x高，含可調整底座):	405x358x137mm
Packing Dimensions:	510x498x260mm
OSD 語言:	English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Vietnamese, Thai, total 23 languages
User Guide Language:	English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

STANDARD ACCESSORY

電源線: 1

遙控器: 1

快速使用手冊: Yes

除塵濾淨器: Yes

Warranty Card: Yes (CN Only)
選購配件

除塵濾淨器: Yes

Wall/Ceiling Mount: PJ-WMK-007

HDMI:	2 (HDMI 2.0, HDCP 1.4/2.2)
音源輸入 (3.5 mm):	1
USB Type A:	2 (5V/2A)
HDBaseT:	1
RJ45 Input (Internet):	Yes

Audio-out (3.5mm):	1
Audio-out (HDMI ARC):	1 (Share with HDMI Input)
S/PDIF:	1
喇叭:	16W
USB Type A (供電):	2 (USB2.0 - 5V/2A, share with USB A Input)

RS232 (DB 9 針公頭傳輸線):	1
RJ45 (LAN control):	1 (share with RJ45 Internet)
USB Type A (Services):	1 (share with USB A Output)

電源線:	1
遙控器:	1
快速使用手冊:	Yes
除塵濾淨器:	Yes
Warranty Card:	Yes (CN Only)

除塵濾淨器:	Yes
Wall/Ceiling Mount:	PJ-WMK-007
