關鍵功能
  • Enhanced flexibility for various huddle spaces
  • Smoother writing experience from 10-point intuitive In-cell Touch technology​
  • Simple and seamless content sharing with USB Type-C connectivity​
  • Wireless casting and remote management with myViewBoard™ ecosystem​
  • Built-in ViewBoard® Cast for simultaneous annotation and productive collaborations

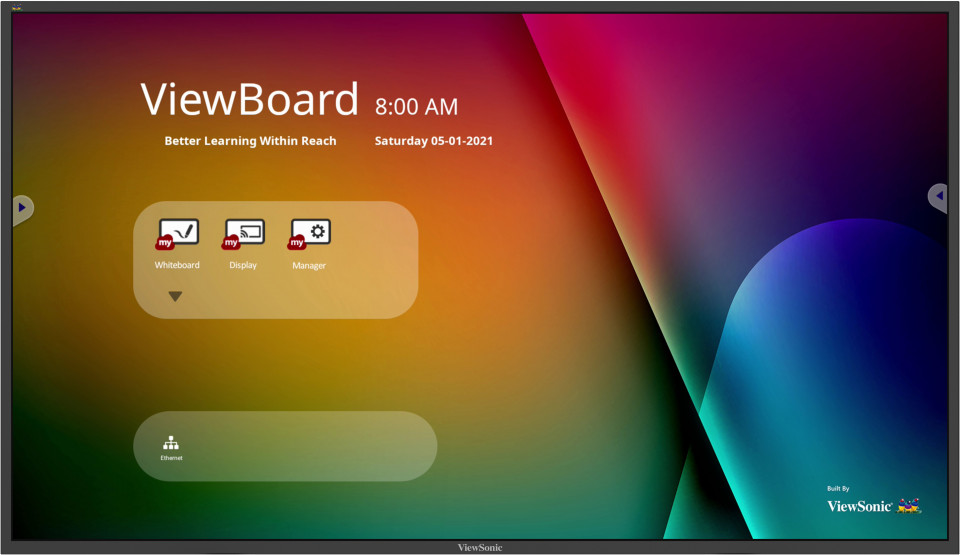

IFP4320
產品說明
Give your huddle spaces the power and flexibility of hybrid collaborations with the sleek, compact ViewBoard® IFP4320 display. Designed to enhance smaller meeting spaces, the 43" screen boasts intuitive 10-point In-cell Touch technology for a smoother and more responsive writing experience with every tap, pinch, and swipe. Enjoy true interactivity and dynamic productivity with a single-cable plug-and-play solution from USB Type-C connectivity and seamless content sharing across different platforms. Integrated with myViewBoard ecosystem applications such as Whiteboard, Display, and Manager, you have complete control over huddle management, wireless content casting, and device settings wherever you are. ​

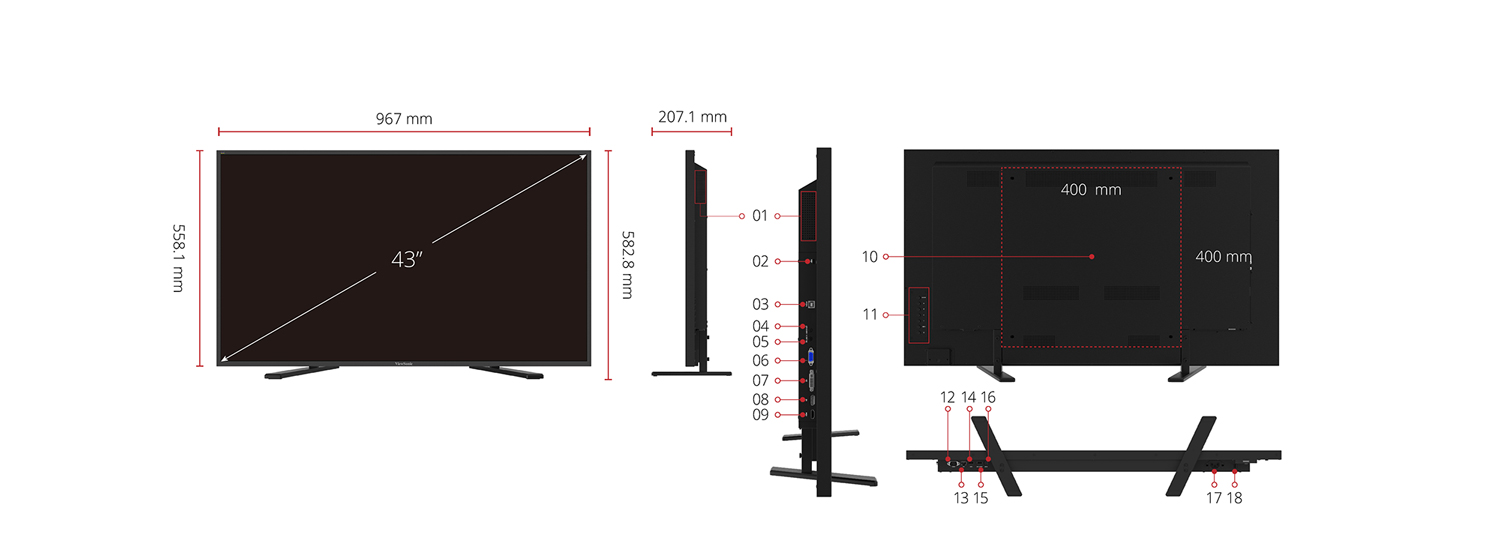

  1. Internal Speakers
  2. USB Type-C
  3. USB 2.0 Touch (Type-B)​
  4. Audio Out
  5. PC Line-In
  6. VGA
  7. DVI-D
  8. DisplayPort
  9. HDMI 2.0
  10. VESA 400x400
  11. Menu Controls
  12. RS232
  13. LAN
  14. USB 2.0 (Type-A)
  15. SMART USB
  16. SPDIF
  17. AC In
  18. Power
造訪我們
  • www.viewsonic.com
  • 顯示規格
    面板尺寸: 43"
    面板類型: TFT LCD Module with ELED Backlight
    顯示區域 (mm): 941.184 (H) x 529.416 (V) (42.51” diagonal)
    長寬比: 16:9
    解析度: UHD 3840x2160(Pixels)
    Colors: 1.07B colors (10bit)
    亮度: 350 nits (typ.)
    對比率: 1000:1
    反應時間: 9 ms
    可視角度: H = 178, V = 178 typ.
    背光壽命: 30,000 Hours (Typ)
    表面塗層: Anti-Glare4H hardness
    螢幕邊框: L:10.9/R:10.9/T:10.9/B:13.8 mm
    顯示方向: Landscape
  • 平台
    處理器: ARM Cortex A73 + A53
    RAM: 3GB DDR4
    儲存空間: 16 GB
  • TOUCH
    類型 / 技術: LGD In-cell 10 points touch
    觸控解析度: 32767 x 32767
    觸控點: Windows/Android: 10 points touch
  • INPUT
    HDMI: 2.0 x1 (3840x2160 @60Hz)
    RGB / VGA: x1
    Display Port: x1
    DVI: x1
    音訊: x1 (PC audio in, 3.5mm jack)
    RS232: x1
  • OUTPUT
    音訊: x1 (Earphone out)
    SPDIF: x1 (Fiber)
  • LAN
    RJ45: x1
  • USB
    Type A: USB2.0 Bottom x2
    Type B: x1 for HDMI/DP/DVI/VGA touch
    Type C: x1 (DP1.2, 60W power delivery)
  • 喇叭
    10W x 2
  • COMPATIBILITY
    RGB PC / HDMI PC: 1080p/4K @ 60Hz
    HDMI: 3840x2160 @ 60Hz
    Display Port: 3840x2160 @ 60Hz
    DVI: 3840x2160 @ 30Hz
  • 內建作業系統
    Android 8.0
  • 搭載軟體
    基本註記軟體: myViewBoard Whiteboard for Android
    無線投影軟體: ViewBoard Cast & myViewBoard Display
  • 特色功能
    All-in-one USB port: Bottom “Smart USB” port for all channels.
  • 電源
    電壓: 100-240VAC +/- 10% Wide Range
    消耗功率: On:120W(typ.) / Off: <0.5W
  • ERGONOMICS
    壁掛 (VESA®): 400 x 400
  • OPERATING CONDITIONS
    溫度 (ºC): 0°C to 40°C
    濕度: 20% ~ 80% RH Non-Condensing
  • 外觀尺寸 (寬 X 高 X 深)
    實體 (inch / mm): 967 x 558.1 x 55.7 mm / 38.072 x 21.973 x 2.193 in. (w/o Stand); 967 x 582.8 x 207.1 mm / 38.072 x 22.943 x 8.155 in. (with Stand)
    外箱 (inch / mm): 1200 x 785 x 210 mm / 47.24 x 30.91 x 8.27 in.
  • WEIGHT
    淨重 (lb/kg): 17.83 kg / 39.3 lbs (w/o Stand); 18.41 kg / 40.59 lbs (with Stand)
    毛重 (lb / kg): 22.63 kg / 49.89 lbs
  • REGULATIONS
    cULus, FCC, Energy Star, CEC, Mexico Energy, CE, CB, RoHS, RACH
  • 產品內容
    1. IFP4320
    2. Power Cables (1.8 M)
    3. Remote Control  with batteries
    4. Quick Start Guide
    5. Stand (STND-056)
    6. HDMI cable (1.0M)
    7. USB Type-C Cable (1.0 M)
    8. USB Touch Cable (1.0 M) (Type A – Type B)
    9. RS232 Adapter (Female to Female)
