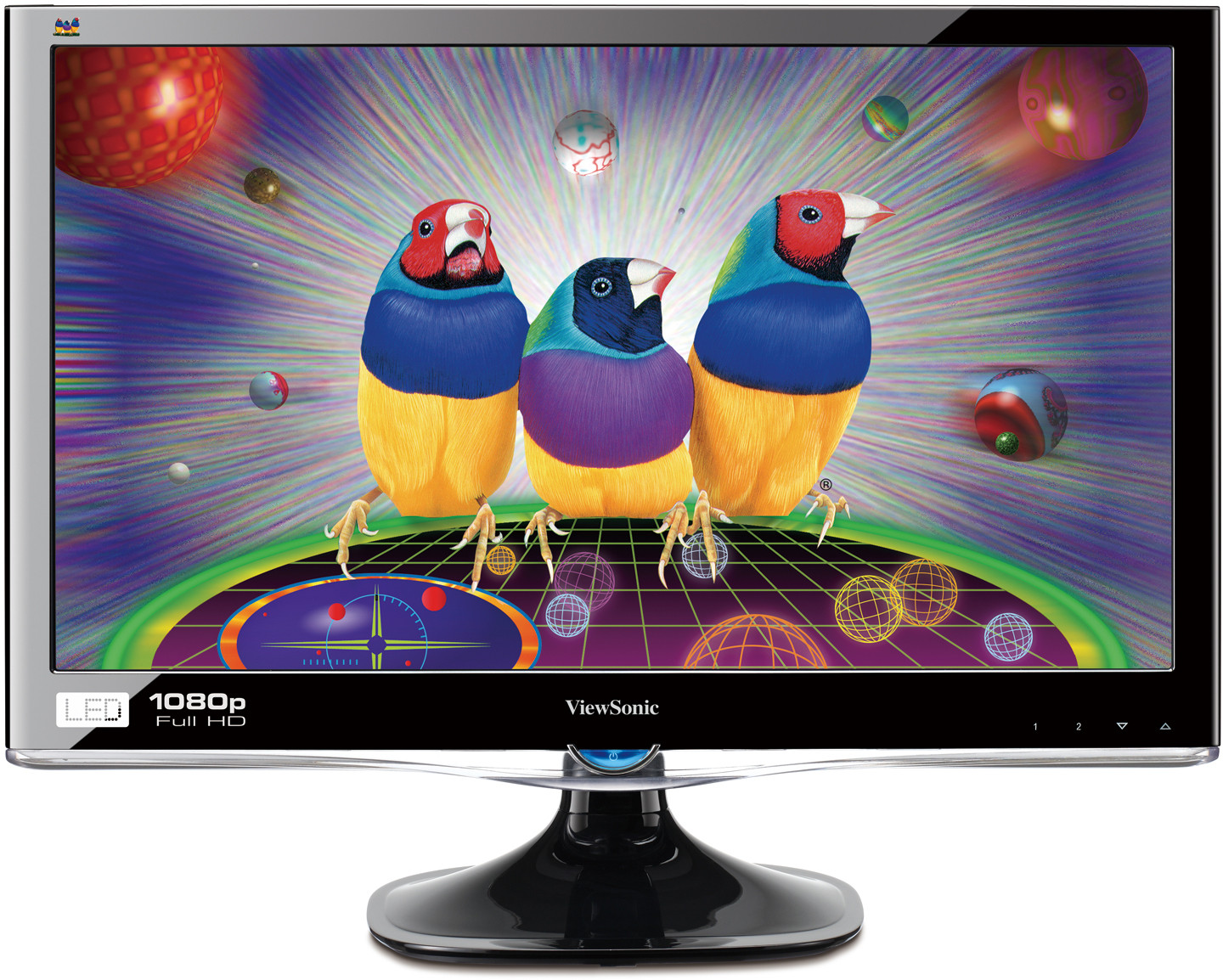

ViewSonic VX2450wm-LED 60cm/23.6" LED DISPLAY

COLORS

Black

LCD

Kontrast Oranı:	1000:1(typical)
Görüntüleme Açıları:	170° (H), 160° (V)
Optimum Çözünürlük:	1920×1080
Yanıt Süresi:	5 (typical)
Işık Kaynağı:	30,000 (typical)
Panel Yüzeyi:	Anti-Glare, Hard coating (3H)
Piksel Aralığı:	0.2715 mm (H) x 0.2715mm (V)
Renk Desteği:	16.7 Millions
Boyut:	60cm/23.6" wide Color a-Si TFT Active Matrix LCD with 16:9 aspect ratio
Parlaklık:	300 (typical)
Dinamik Kontrast Oranı:	20,000,000:1

UYUM

PC: VGA up to 1920×1080 Non Interlaced

Mac®: 1920×1080 Non Interlaced
BOYUTLAR

Fiziksel (GxYxD): 566.22 mm (W) x 443.22 mm (H)x214.48 mm (D)
GIRIş

Senk.: Separate Sync / Composite Sync / SOG

Analog: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frekans: 24–83kHz / 50–76Hz
KONEKTÖRLER

Analog: 1×15 pin mini D-sub

Dijital: 1×DVI-D

Ses: 1x3.5mm jack

Güç: Built-in power Adapter, 3-Pin plug
Güç

Gerilim: AC 100-240V (Universal); 50/60Hz(Switch)

Tüketim: 28W (maximum)

Kayıt Modu (W): ≦0.1W

KONTROLLER

Temel:

[1], [2], Power, Down[▼], Up[▲]

OnView®:

Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, Audio Adjust Volume
mute, Colour Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B],
Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Response Time, Aspect Ratio, ECO Mode, Setup Menu Language,
Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off,
Memory Recall

DUVAR MONTAJI

VESA® Mount Complliant 100 × 100
SES

Hoparlörler: 2.5w x 2
AğıRLıK

Net: 4.5kg (9.92lbs)
İŞLETİM KOŞULLARI

Nem: 10 - 90 (%)

Isı: 0 - 40 (°C) / 32 - 104 (°F

PC:	VGA up to 1920×1080 Non Interlaced
Mac®:	1920×1080 Non Interlaced

Senk.:	Separate Sync / Composite Sync / SOG
Analog:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frekans:	24–83kHz / 50–76Hz

Analog:	1×15 pin mini D-sub
Dijital:	1×DVI-D
Ses:	1x3.5mm jack
Güç:	Built-in power Adapter, 3-Pin plug

Gerilim:	AC 100-240V (Universal); 50/60Hz(Switch)
Tüketim:	28W (maximum)
Kayıt Modu (W):	≦0.1W

Nem:	10 - 90 (%)
Isı:	0 - 40 (°C) / 32 - 104 (°F
