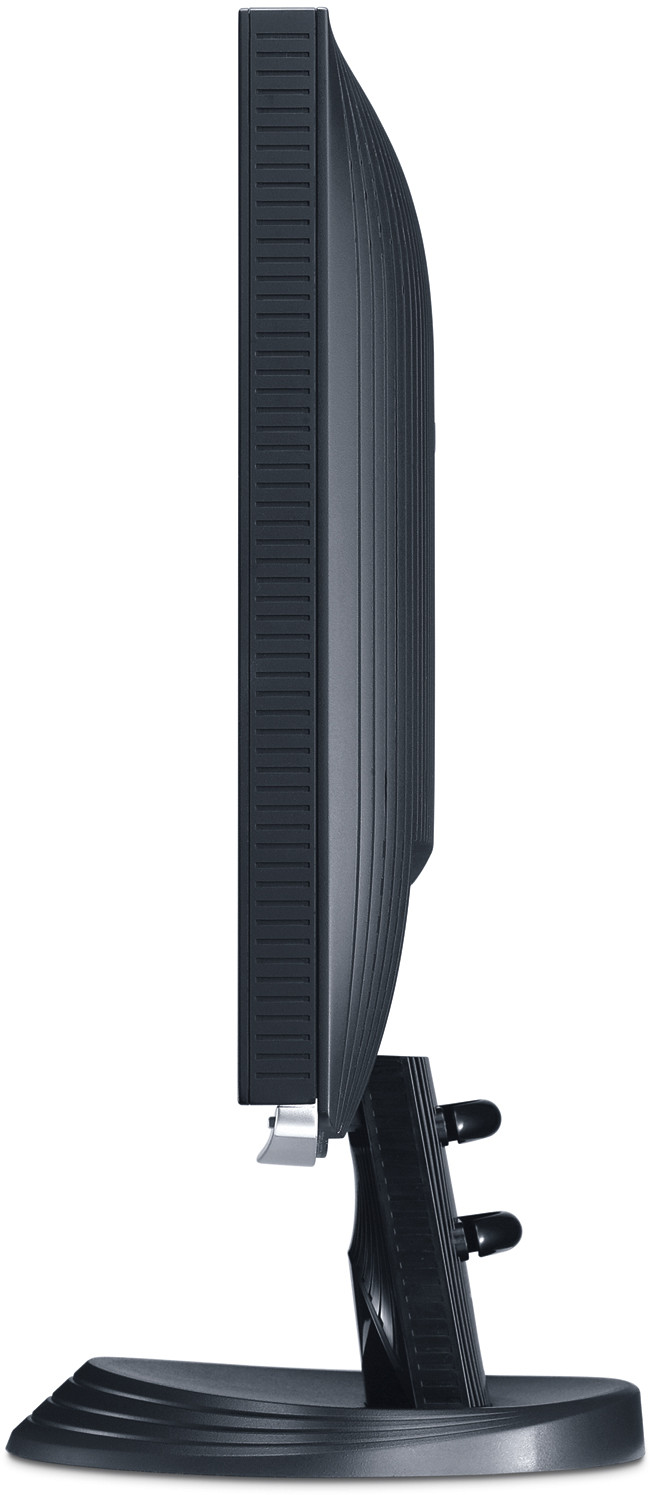

ViewSonic VX1940w-4 49 cm / 19" WIDESCREEN LCD MONITOR VX SERIES WITH 2MS RESPONSE TIME AND 3,000:1 DCR

Önemli Özellikler

Ürün Açıklama

ViewSonic’s 49 cm / 19"VX1940w widescreen LCD delivers unparalleled performance with video response as fast as 2ms, 3000:1 DYNAMIC CONTRAST RATIO (typ.) and SUPER-HD 1680 x 1050 RESOLUTION. Games, HD movies, videos and graphic-intensive applications have never looked better on your desktop. This Vista™ premium certified WIDESCREEN DISPLAY ENHANCES RODUCTIVITY by allowing you to view two documents side-by-side or work in two applications without toggling. Connect your game console, DVD player and other components through the DIGITAL (DVI-D HDCP) AND ANALOGUE INPUTS. The Kensington security port provides theft deterrence and the OSD and power lock prevent unauthorised changes to your optimal screen settings.

Bizi Ziyaret Edin

www.viewsonic.com

COLORS

Black

LCD

Tür:	49 cm / 19" Wide TN colour TFT active matrix WSXGA+ LCD
Kontrast Oranı:	1000:1 (typ.), 3000:1 DCR (typ.)
Görüntüleme Açıları:	170° horizontal, 160° vertical (at 0:1) 170° horizontal, 170° vertical (at 5:1)
Parlaklık:	300 cd/m²
Ekran Alanı:	41.0cm horizontal x 25.7cm vertical, 48.3cm diagonal
Optimum Çözünürlük:	1680 x 1050@60Hz
Yanıt Süresi:	2ms (grey-to-grey), 5ms (off-on-off) (typ.)
Işık Kaynağı:	Long life, 40000 hrs. (typ.)
Panel Yüzeyi:	Anti-glare
Piksel Aralığı:	0.243mm
Renk Desteği:	16.7M colours supported (6-bit+2-bit FRC)
Piksel Saat:	165MHz

UYUM

PC: VGA up to 1680 x 1050 non-interlaced

Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
BOYUTLAR

Stand İle Birlikte Fiziksel: 442 x 385 x 195

Stand Olmadan Fiziksel: 442 x 310 x 54

Ambalaj (GxYxD): 520 x 469 x 145
PAKET İÇERİĞİ

LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
KONEKTÖRLER

Analog: 15-pin mini D-Sub (detachable cable)

Dijital: 24-pin DVI-D (detachable cable) (HDCP enabled)

Güç: 3-pin AC plug (CEE22)certified)
Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal power supply

Tüketim: 44 watt (typ.), <1 watt in power save mode

KONTROLLER

Temel:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, aspect ratio [4:3, full screen], response time), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 0°C – 40°C

Nem: 10%–90% (non-condensation)
AğıRLıK

Stand İle Birlikte Net: 4.6kg

Stand Olmadan Net: 3.8kg

Stand İle Birlikte Brüt: 5.8kg
VIDEO GIRIşI

Frekans: Fh: 24~82kHz, Fv: 50~85Hz

Senk.: H/V separate (TTL), composite, sync on green

Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Dijital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
GÜÇ YÖNETİMİ

TCO’03 and ENERGY STAR standards
GÜVENLİK

Kensington® security port
DUVAR MONTAJI

VESA FDMI 100mm x 100mm
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, Up 20°

PC:	VGA up to 1680 x 1050 non-interlaced
Mac®:	Power Mac™ up to 1680 x 1050 non-interlaced

Stand İle Birlikte Fiziksel:	442 x 385 x 195
Stand Olmadan Fiziksel:	442 x 310 x 54
Ambalaj (GxYxD):	520 x 469 x 145

Analog:	15-pin mini D-Sub (detachable cable)
Dijital:	24-pin DVI-D (detachable cable) (HDCP enabled)
Güç:	3-pin AC plug (CEE22)certified)

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Tüketim:	44 watt (typ.), <1 watt in power save mode

Stand İle Birlikte Net:	4.6kg
Stand Olmadan Net:	3.8kg
Stand İle Birlikte Brüt:	5.8kg

Frekans:	Fh: 24~82kHz, Fv: 50~85Hz
Senk.:	H/V separate (TTL), composite, sync on green
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Dijital:	DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)

Isı:	0°C – 40°C
Nem:	10%–90% (non-condensation)
