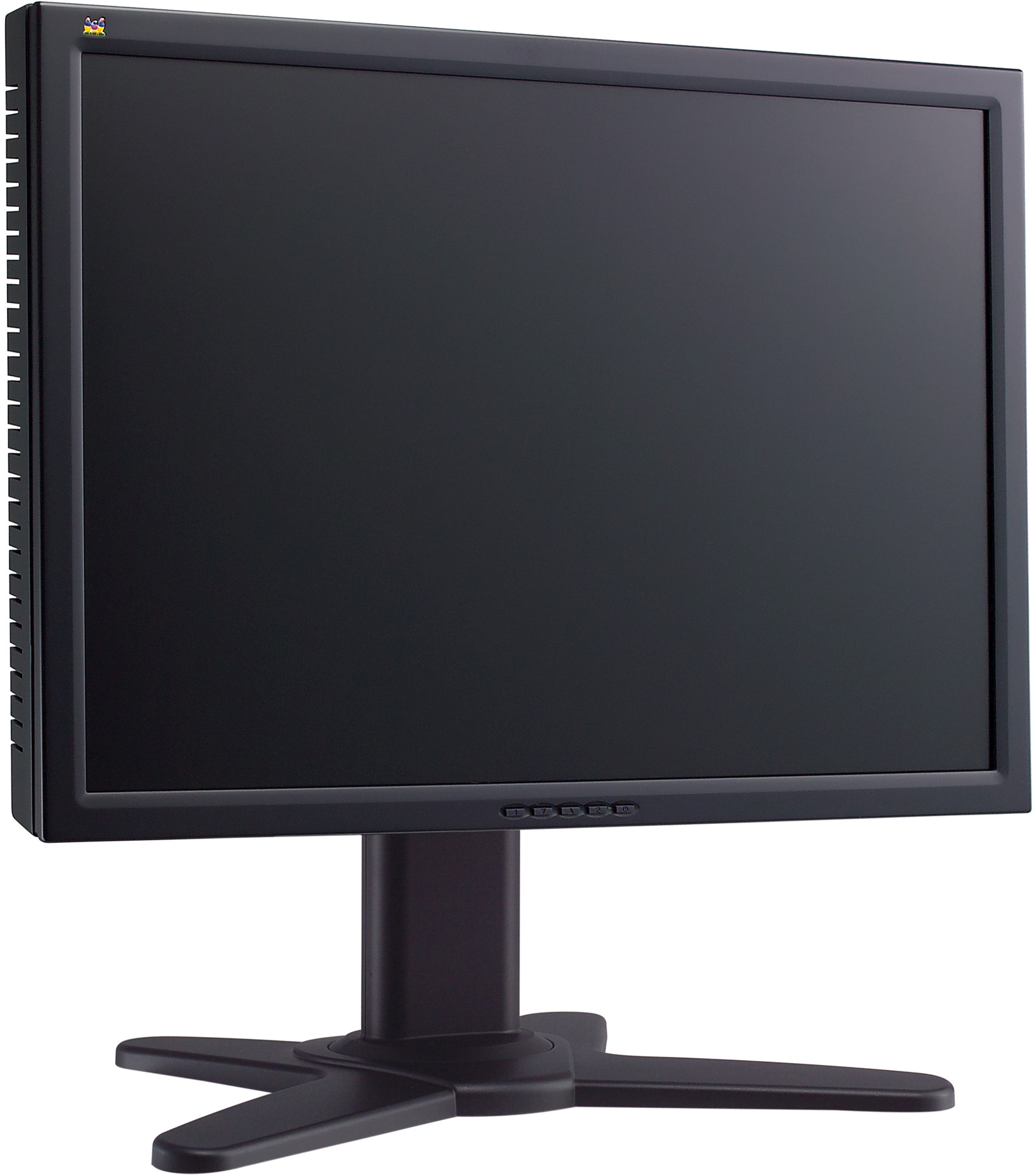

ViewSonic VP2330wb ERGONOMIC 23" LCD MONITOR WITH PERFECT SUITE

COLORS

Black

LCD

Tür:	Thin Edge™ - Ideal for multi monitor setups
Kontrast Oranı:	800:1 (typ.)
Görüntüleme Açıları:	170° horizontal, 170° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Parlaklık:	250cd/m² (typ.)
Cam Yüzeyi:	Anti-glare
Ekran Alanı:	49.5cm (horizontal) x 30.9cm (vertical), 58.4cm diagonal
Optimum Çözünürlük:	1920 x 1200
Yanıt Süresi:	8ms (grey-to-grey), 16ms (off-on-off)
Piksel Aralığı:	0.258mm
Bant Genişliği:	165MHz
Renk Desteği:	16.7M colours (8-bit)

UYUM

PC: Compatible from VGA up to 1920 x 1200 non-interlaced (max. 60Hz)

Mac®: Power Mac™ up to 1920 x 1200 (max. 60Hz)
BOYUTLAR

G x Y X D mm: 542 x 404 – 539 x 295 (w/stand)
542 x 354 x 110 (w/o stand)
PAKET İÇERİĞİ

LCD display, power cable, 15-pin VGA video cable, DVI cable, USB cable,
Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers),
PerfectSuite™ CD-ROM
GARANTİ

Please see:
www.viewsoniceurope.com/UK/Support/warranty.htm
GIRIş

Senk.: H/V separated (TTL)

Analog: RGB analogue (0.7/1.0 Vp-p , 75ohms)

Frekans: Fh: 24–96kHz, fv: 50–85Hz

Dijital: H/V separated (TTL), composite, sync on green
KONEKTÖRLER

Analog: 15-pin mini D-sub (detachable cable)

Dijital: 29-pin Digital DVI-I (analogue and digital) (detachable cable)

USB: 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)
Güç

Gerilim: AC 100–240V, 50/60Hz (Auto-Switch), external power supply

Tüketim: 80 watt (typ.), <4 watt in power save mode

KONTROLLER

Temel:

Soft power, menu [1] , down, up, select [2]

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-A, DVI-D),
colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (PIP [PIP, PIP position, PIP swap], H/V position,
H size, fine tune, sharpness), setup menu (language, resolution notice, input
priority, OSD position, OSD timeout, OSD background, OSD pivot), auto
white balance, OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 0°C to 40°C

Nem: 10% to 90% (non-condensing)
AğıRLıK

Net: 7.8kg (w/stand); 4.9kg (w/o stand)
GÜÇ YÖNETİMİ

Meets TCO’99, ENERGY and Energy Star standards
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, up 20°

Kendi Etrafında Dönme: 270° (135° left/right)

Yükseklik Ayarı: 0~ ≥ 135mm

Eğme: 270° (135° left/right)

PC:	Compatible from VGA up to 1920 x 1200 non-interlaced (max. 60Hz)
Mac®:	Power Mac™ up to 1920 x 1200 (max. 60Hz)

Senk.:	H/V separated (TTL)
Analog:	RGB analogue (0.7/1.0 Vp-p , 75ohms)
Frekans:	Fh: 24–96kHz, fv: 50–85Hz
Dijital:	H/V separated (TTL), composite, sync on green

Analog:	15-pin mini D-sub (detachable cable)
Dijital:	29-pin Digital DVI-I (analogue and digital) (detachable cable)
USB:	1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)

Gerilim:	AC 100–240V, 50/60Hz (Auto-Switch), external power supply
Tüketim:	80 watt (typ.), <4 watt in power save mode

Eğilme:	Down 5°, up 20°
Kendi Etrafında Dönme:	270° (135° left/right)
Yükseklik Ayarı:	0~ ≥ 135mm
Eğme:	270° (135° left/right)

Isı:	0°C to 40°C
Nem:	10% to 90% (non-condensing)
