Önemli Özellikler

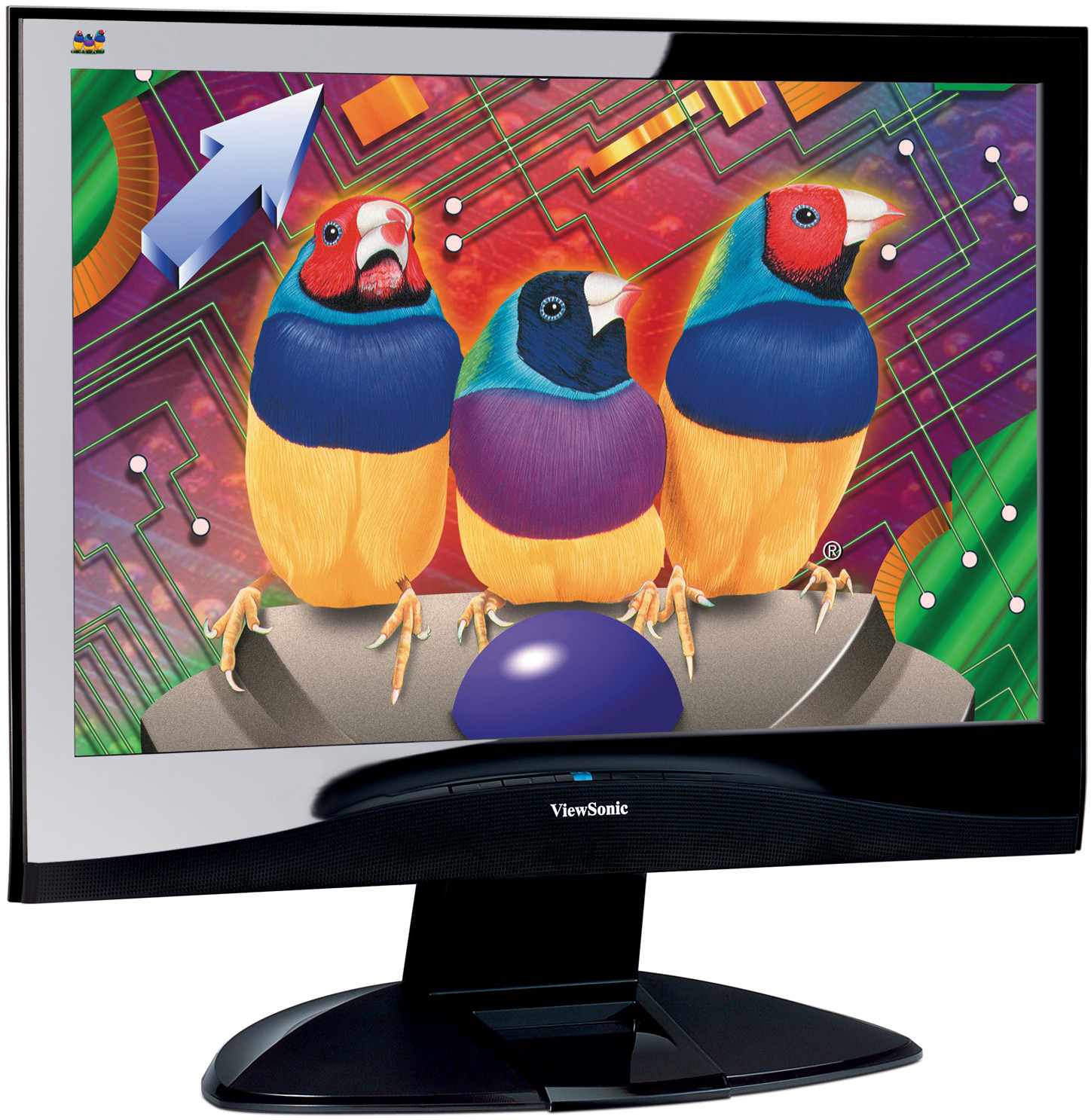

VLED221wm
Ürün Açıklama
ViewSonic’s 56 cm / 22" VLED221wm widescreen LCD features a mercury-free LED backlight that requires less power than a standard 56 cm / 22"LCD yet produces exceptionally brilliant colour and crystal-clear images. OptiColor 118% NTSC and Super-HD 1680 x 1050 resolution deliver the deepest colour rendition, while the 16:10 widescreen panel allows users to work in two documents or applications side-by-side. Unmatched 12000:1 Dynamic Contrast Ratio (typ.) further supports the VLED221wm’s excellent front-of-screen performance with the blackest blacks and whitest whites. OptiSync digital and analogue inputs and integrated speakers expand this display’s multimedia versatility. Gamers, movie fans, graphic designers and home offi ce users will love the performance and style of the VLED221wm.
Bizi Ziyaret Edin
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Tür: 56 cm / 22"Wide TN colour TFT active matrix WSXGA+ LCD
    Kontrast Oranı: 1000:1 (typ.), 12000:1 DCR (typ.)
    Görüntüleme Açıları: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Parlaklık: 250cd/m² (typ.)
    Ekran Alanı: 47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
    Optimum Çözünürlük: 1680 x 1050@60Hz
    Yanıt Süresi: 5ms (off-on-off) (typ.)
    Işık Kaynağı: LED backlight array
    Panel Yüzeyi: Anti-glare (3H)
    Piksel Aralığı: 0.282mm
    Renk Desteği: 16.7M colours supported (6-bit+2-bit FRC)
    Piksel Saat: 170MHz
    Renk Gamutu: Wide colour gamut: 118% NTSC
  • UYUM
    PC: VGA up to 1680 x 1050 non-interlaced
    Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
  • BOYUTLAR
    Stand İle Birlikte Fiziksel: 524 x 482 x 244
    Stand Olmadan Fiziksel: 524 x 355 x 64
    Ambalaj (GxYxD): 575 x 522 x 150
  • PAKET İÇERİĞİ
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (multi-language User Guides/drivers and SRS WOW HD software)
  • SES
    Hoparlörler: 2 x 2.5 watt integrated stereo speakers with SRS WOW HD
  • KONEKTÖRLER
    Analog: 15-pin mini D-Sub (detachable cable)
    Dijital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Güç: 3-pin AC plug (CEE22)
    Ses: 3.5mm stereo audio line-in
  • Güç
    Gerilim: AC 100–240 V, 50–60 Hz (auto switch), internal power supply
    Tüketim: 36 watt (typ.), <1 watt in power save mode
  • KONTROLLER
    Temel: Power, menu [1], select [2], up, down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [11 options], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • İŞLETİM KOŞULLARI
    Isı: 5°C – 35°C
    Nem: 20% – 80% (non-condensation)
  • AğıRLıK
    Stand İle Birlikte Net: 6.0kg
    Stand Olmadan Net: 4.8kg
    Ambalaj: 7.5kg
  • VIDEO GIRIşI
    Frekans: Fh: 30–82kHz, Fv: 50–75Hz
    Senk.: H/V separate (TTL), composite, sync on green
    Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm, DDC/CI)
    Dijital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
  • GÜÇ YÖNETİMİ
    Meets ENERGY STAR standards
  • GÜVENLİK
    Kensington® security port
  • DUVAR MONTAJI
    VESA FDMI 100mm x 100mm
  • ERGONOMIK ÖZELLIKLER
    Eğilme: Down 5°, Up 17°
