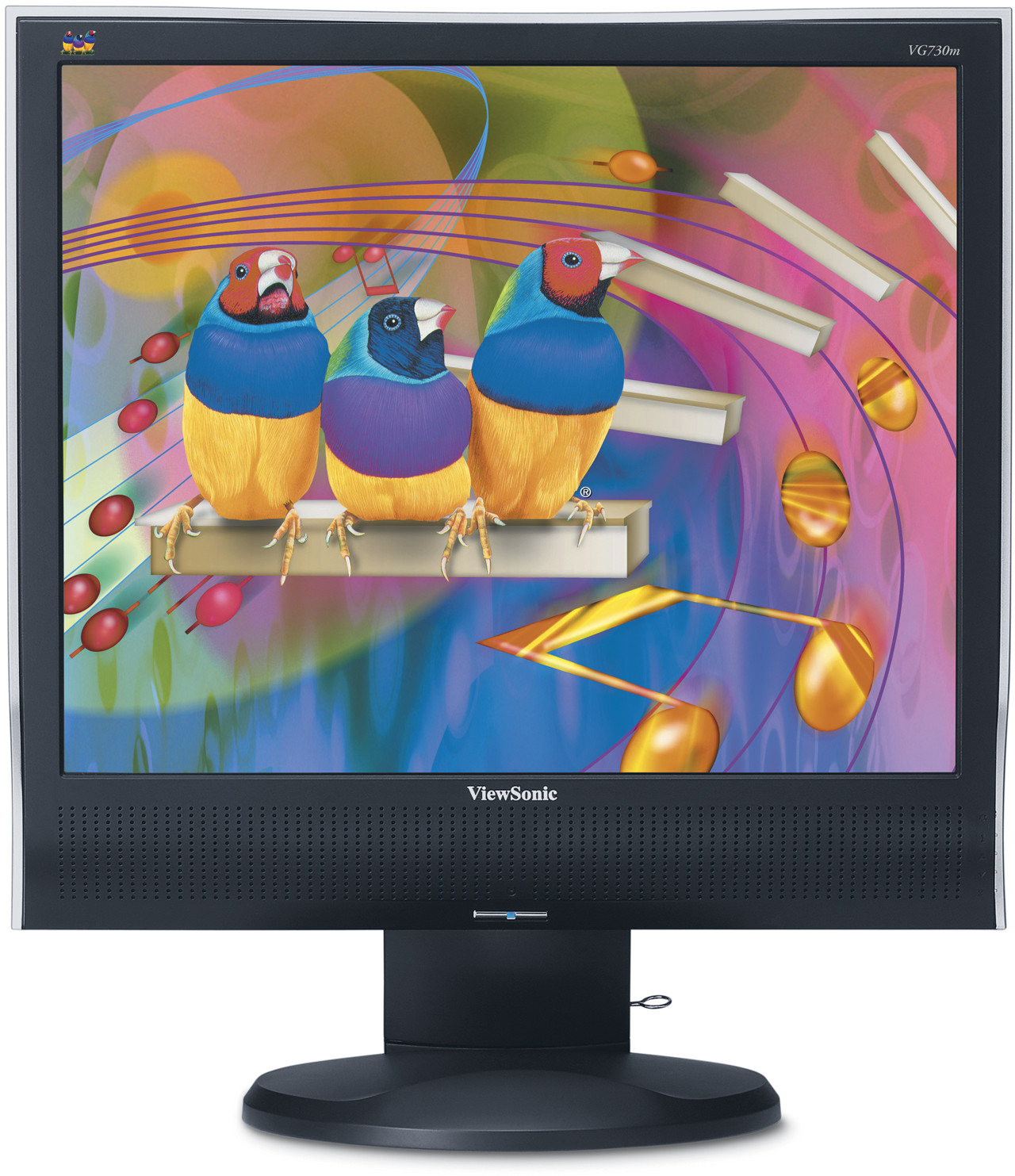

ViewSonic VG730m 17" DIGITALMEDIA™ LCD MONITOR WITH CLEARMOTIV® 8MS VIDEO RESPONSE

Önemli Özellikler

Ürün Açıklama

The 17” ViewSonic VG730m LCD monitor is the ultimate value LCD business display. Featuring height adjustment, tilt and 360° swivelfeatures, the VG730m allows the user to set the ergonomic position of the monitor to generate the best possible viewing position andgreatest viewing comfort. Image quality is guaranteed with premium contrast and brightness levels to deliver superb pictures with vivid, brilliant colours and crisp detail. Digital and analogue inputs ensure maximum connectivity and integrated stereo speakers provide space-saving high quality sound to your desktop. The full featured VG730m is the ideal LCD monitor for business, home office, government or education use.

Bizi Ziyaret Edin

www.viewsonic.com

COLORS

Black

LCD

Tür:	43cm / 17" TN colour TFT active matrix SXGA LCD
Kontrast Oranı:	600:1 (typ.)
Görüntüleme Açıları:	150° horizontal, 145° vertical (at 10:1) 170° horizontal, 155° vertical (at 5:1)
Parlaklık:	280cd/m² (typ.)
Ekran Alanı:	33.8cm (horizontal) x 27.0cm (vertical), 43.2cm diagonal
Optimum Çözünürlük:	1280 x 1024@60Hz
Yanıt Süresi:	8ms (off-on-off) (typ.)
Işık Kaynağı:	Long life, 50,000 hrs. (typ)
Panel Yüzeyi:	Anti-glare (3H)
Piksel Aralığı:	0.264mm
Renk Desteği:	16.7M colours supported (6-bit + 2-bit FRC)
Piksel Saat:	140MHz

UYUM

PC: VGA up to 1280 x 1024 non-interlaced

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
BOYUTLAR

Stand İle Birlikte Fiziksel: 387 x 475-555 x 230

Stand Olmadan Fiziksel: 387 x 367 x 67

Ambalaj (GxYxD): 445 x 552 x 278
PAKET İÇERİĞİ

LCD Monitor, power cable, D-sub video cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/ drivers) (multi-language)
SES

Hoparlörler: 2 x 1.5 watt integrated stereo speakers
KONEKTÖRLER

Analog: 15-pin mini D-Sub (detachable cable)

Dijital: 24-pin DVI-D (detachable cable)

Güç: 3-pin AC plug (CEE22)

Ses: 3.5mm stereo audio line-in
Güç

Gerilim: AC 100–240V, 50/60Hz (auto switch), internal power supply

Tüketim: 35 watt (typ.), <1 watt in power save mode

KONTROLLER

Temel:

Power, menu [1], up, down, select [2], mute

OSD:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 5°C–35°C

Nem: 20%–80% (non-condensation)
AğıRLıK

Stand İle Birlikte Net: 5.0kg

Brüt: 6.9kg
VIDEO GIRIşI

Frekans: Fh: 30–82kHz, Fv: 50–75Hz

Senk.: H/V separated (TTL)

Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Dijital: DVI-D (TMDS, 100 ohms)
GÜÇ YÖNETİMİ

Meets TCO’03 and ENERGY STAR standards
GÜVENLİK

Kensington security port
DUVAR MONTAJI

VESA FDMI 100mm x 100mm
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, up 20°

Kendi Etrafında Dönme: 360° swivel base

Yükseklik Ayarı: 0~80mm

PC:	VGA up to 1280 x 1024 non-interlaced
Mac®:	Power Mac™ up to 1280 x 1024 non-interlaced

Stand İle Birlikte Fiziksel:	387 x 475-555 x 230
Stand Olmadan Fiziksel:	387 x 367 x 67
Ambalaj (GxYxD):	445 x 552 x 278

Analog:	15-pin mini D-Sub (detachable cable)
Dijital:	24-pin DVI-D (detachable cable)
Güç:	3-pin AC plug (CEE22)
Ses:	3.5mm stereo audio line-in

Gerilim:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Tüketim:	35 watt (typ.), <1 watt in power save mode

Frekans:	Fh: 30–82kHz, Fv: 50–75Hz
Senk.:	H/V separated (TTL)
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Dijital:	DVI-D (TMDS, 100 ohms)

Eğilme:	Down 5°, up 20°
Kendi Etrafında Dönme:	360° swivel base
Yükseklik Ayarı:	0~80mm

Isı:	5°C–35°C
Nem:	20%–80% (non-condensation)

Stand İle Birlikte Net:	5.0kg
Brüt:	6.9kg
