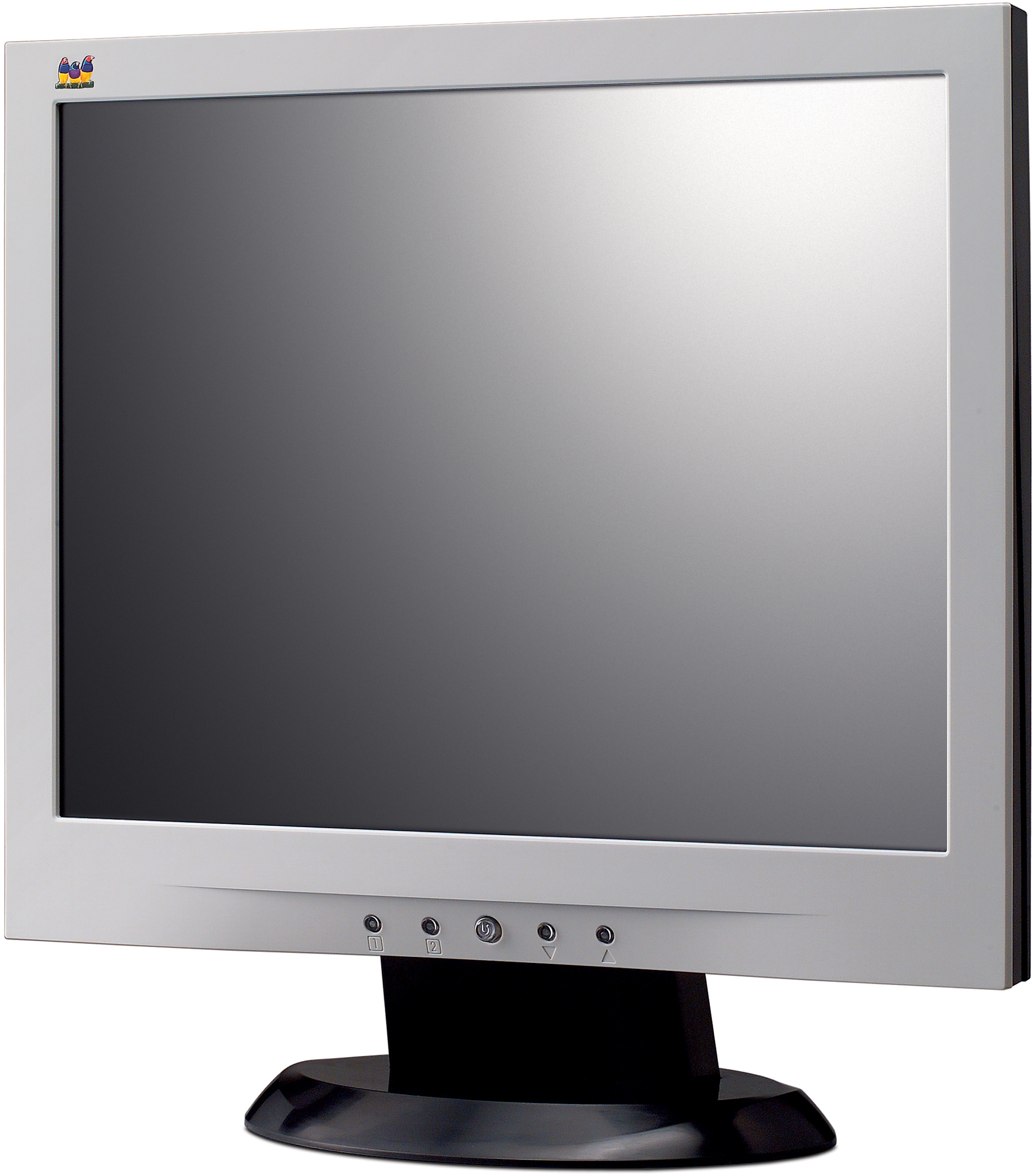

ViewSonic VA503m 15" LCD MONITOR WITH MULTIMEDIA

LCD

Tür:	38cm / 15" TN colour TFT active matrix XGA LCD
Kontrast Oranı:	450:1 (typ.)
Görüntüleme Açıları:	120° horizontal, 100° vertical (at 10:1)
Parlaklık:	250cd/m² (typ.)
Ekran Alanı:	30.4cm horizontal x 22.8cm vertical; 38.1cm diagonal
Optimum Çözünürlük:	1024 x 768
Yanıt Süresi:	16ms (off-on-off) (typ.)
Işık Kaynağı:	Long life, 30000 hrs. (typ.)
Panel Yüzeyi:	Anti-glare
Piksel Aralığı:	0.297mm
Renk Desteği:	16.2M colours (6-bit + 2-bit FRC)
Piksel Saat:	85MHz

UYUM

PC: VGA up to 1024 x 768 non-interlaced (@ 60Hz recommended)

Mac®: Power Mac™ up to 1024 x 768 non-interlaced (@ 60Hz recommended)
BOYUTLAR

Stand İle Birlikte Fiziksel: 344 x 348 x 147

Stand Olmadan Fiziksel: 344 x 290 x 54
PAKET İÇERİĞİ

LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
SES

Hoparlörler: 2 x 1 Watt integrated invisible stereo speakers
KONEKTÖRLER

Analog: 15-pin mini D-sub (attached cable)

Güç: 3-pin AC plug (CEE22)

Ses (giriş/çıkış): 3.5mm stereo audio line-in
Güç

Gerilim: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Tüketim: <23 watt (max.), <1 watt in power save mode

KONTROLLER

Temel:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [English, Finnish, French, German, Italian, Japanese, Spanish, Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 0°C – 40°C

Nem: 20% – 90% (non-condensing)
AğıRLıK

Stand İle Birlikte Net: 2.7kg
VIDEO GIRIşI

Frekans: Fh: 30 – 82kHz
Fv: 50 – 85Hz

Senk.: H/V separated (TTL)

Analog: RGB analogue (0.7 Vp-p, 75 ohm)
GÜÇ YÖNETİMİ

Meets TCO’99 and Energy Star standards
GÜVENLİK

Kensington® security port
DUVAR MONTAJI

VESA FDMI 75mm x 75mm
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, Up 20°

PC:	VGA up to 1024 x 768 non-interlaced (@ 60Hz recommended)
Mac®:	Power Mac™ up to 1024 x 768 non-interlaced (@ 60Hz recommended)

Stand İle Birlikte Fiziksel:	344 x 348 x 147
Stand Olmadan Fiziksel:	344 x 290 x 54

Analog:	15-pin mini D-sub (attached cable)
Güç:	3-pin AC plug (CEE22)
Ses (giriş/çıkış):	3.5mm stereo audio line-in

Gerilim:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Tüketim:	<23 watt (max.), <1 watt in power save mode

Frekans:	Fh: 30 – 82kHz Fv: 50 – 85Hz
Senk.:	H/V separated (TTL)
Analog:	RGB analogue (0.7 Vp-p, 75 ohm)

Isı:	0°C – 40°C
Nem:	20% – 90% (non-condensing)
