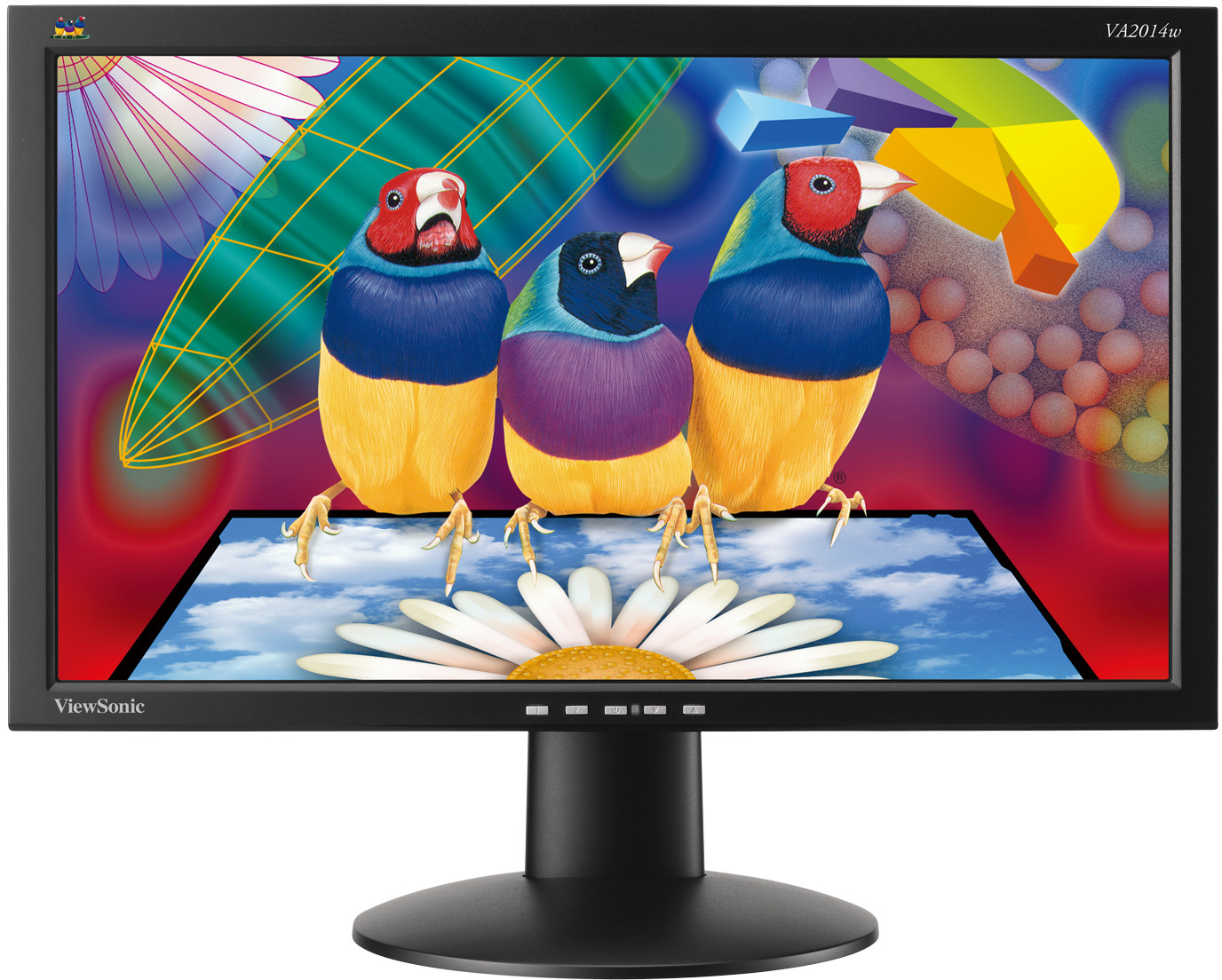

ViewSonic VA2014w 50CM / 20” Widescreen LCD WITH 20,000:1 DYNAMIC CONTRAST RATIO

LCD

Kontrast Oranı:	1000:1 (Typical.) / 20000:1 dynamic
Görüntüleme Açıları:	170° (H), 160 ° (V) at 10:1 c/r, 170°(H) 170° (V) at 5:1 c/r
Optimum Çözünürlük:	1600×900
Yanıt Süresi:	5ms (Typical)
Işık Kaynağı:	50,000 hrs (Typical)
Panel Yüzeyi:	Anti-Glare, Hard coating (3H)
Piksel Aralığı:	0.276mm(H) x 0.276mm(V)
Ekran:	443 x 249 (mm)
Renk Desteği:	16.7 M (6-bits + Hi FRC)
Boyut:	50CM/20" wide Color TFT Active Matrix LCD 16:9 aspect ratio
Parlaklık:	250 cd/m² (Typical)

UYUM

PC: VGA up to 1600×900 Non Interlaced

Mac®: Power Mac, up to 1600×900
BOYUTLAR

Stand İle Birlikte Fiziksel: 481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in)

Stand Olmadan Fiziksel: 481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in)
PAKET İÇERİĞİ

LCD display, VGA cable, Power cable, Quick Start Guide,
ViewSonic ,Wizard CD
GIRIş

Senk.: Separate Sync

Analog: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frekans: Fh: 24-82kHz, Fv: 50-75Hz
KONEKTÖRLER

Analog: 1×15 pin mini D-sub

Güç: Built-in power Adapter, 3-Pin plug
Güç

Gerilim: AC 100-240V (Universal); 50/60Hz(Switch)

Tüketim: 25 (Typical)

Eko Mod: optimize 23W (Typical) / conserve 19W (Typical)

Kayıt modu: <= 0.5W

KONTROLLER

Temel:	[1], [2], Power, Down[▼], Up[▲]
OnView®:	Auto Image Adjust Contrast/Brightness Audio adjust: Volume mute Colour Adjust: sRGB, 9300K, 7500K, 6500K, 5000K User Colour : [R, G, B] Information Manual Image Adjust: H/V position, horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, setup menu, language select, resolution notice, OSD Position, OSD Time Out, OSD Background, memory recall.

PC:	VGA up to 1600×900 Non Interlaced
Mac®:	Power Mac, up to 1600×900

Stand İle Birlikte Fiziksel:	481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in)
Stand Olmadan Fiziksel:	481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in)

Analog:	1×15 pin mini D-sub
Güç:	Built-in power Adapter, 3-Pin plug

Gerilim:	AC 100-240V (Universal); 50/60Hz(Switch)
Tüketim:	25 (Typical)
Eko Mod:	optimize 23W (Typical) / conserve 19W (Typical)
Kayıt modu:	<= 0.5W

Nem:	20 - 80% (Non condensed)
Isı:	41°F - 95°F (5°C - 35°C)

Brüt:	5.8 kg (12.8 lbs)
Net:	4 kg (8.8 lbs)
