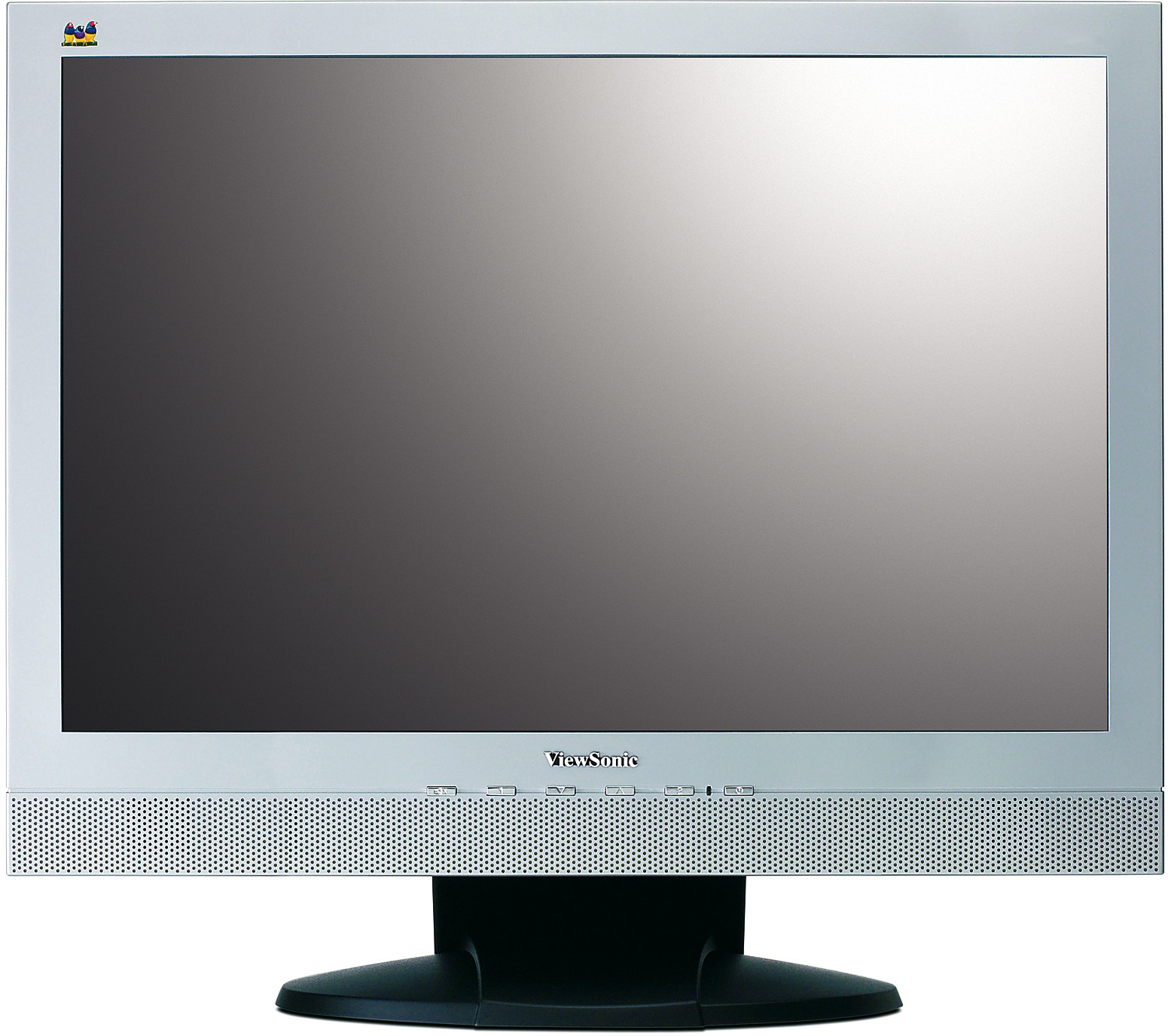

ViewSonic VA1912w 19" MULTIMEDIA WIDESCREEN LCD DISPLAY WITH 5MS CLEARMOTIV™ HD BROADCAST-QUALITY VIDEO

Önemli Özellikler

Ürün Açıklama

The ViewSonic® VA1912w 19" LCD will impress you with its generous feature set and its budget-friendly price. The 16:10 WIDESCREEN ASPECT RATIO PROVIDES MORE PRODUCTIVE SPACE for multiple windows, video and immersive gaming action. ViewSonic's innovative Dynamic Structure™ technology ACCELERATES VIDEO RESPONSE FOR BROADCAST-QUALITY, seamless video. The ClearMotiv™ fast 5ms video response, 280 cd/m² of brightness (typ.), 700:1 contrast ratio (typ.), and 1440 x 900 optimum resolution deliver crystal-clear images, crisp text and intense graphics. OSD lock and AutoTune® functions ensure your view is always optimal. Furnish your workplace in style with the feature-rich, wall-mountable, value-priced VA1912w. It's not just another widescreen LCD. It's a ViewSonic.

Bizi Ziyaret Edin

www.viewsonic.com

LCD

Tür:	48cm / 19" TN colour TFT active matrix WXGA LCD
Kontrast Oranı:	700:1 (typ.)
Görüntüleme Açıları:	150° horizontal, 130º vertical (at 10:1) 160° horizontal, 155º vertical (at 5:1)
Parlaklık:	280 cd/m² (typ.)
Ekran Alanı:	41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
Optimum Çözünürlük:	1440 x 900
Yanıt Süresi:	5ms (off-on-off) (typ.)
Işık Kaynağı:	Long life, 50000 hrs. (typ.)
Görüntü Oranı:	16:10
Panel Yüzeyi:	Anti-glare
Piksel Aralığı:	0.285mm
Renk Desteği:	16.2M colours (6-bit + 2-bit FRC)
Piksel Saat:	140MHz

UYUM

PC: VGA up to 1440 x 900 non-interlaced (max. 60Hz)

Mac®: Power Mac™ G3/G4/G5 up to 1152 x 870 (max. 60Hz)
BOYUTLAR

Stand İle Birlikte Fiziksel: 451 x 391 x 197

Stand Olmadan Fiziksel: 451 x 334 x 52
PAKET İÇERİĞİ

LCD display, power cable, 15-pin VGA cable, audio cable, Quick Start Guide, ViewSonic Wizard CD (User Guide/drivers)
SES

Hoparlörler: Integrated stereo speakers
KONEKTÖRLER

Analog: 15-pin mini D-sub (detachable cable)

Güç: 3-pin AC plug (CEE22)

Ses: 3.5mm stereo audio line-in
Güç

Gerilim: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Tüketim: 32 watt (typ.), <1 watt in power save mode

KONTROLLER

Temel:	Power, menu [1], down, up, select [2], mute
OSD:	Auto image adjust, contrast, brightness, audio adjust, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5000K, 5400K, user RGB), Information (resolution, H/V frequency, pixel clock, model number, serial number), Manual image adjust (H. size, H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

İŞLETİM KOŞULLARI

Isı: 5°C – 35°C

Nem: 20% – 80% (non-condensing)
AğıRLıK

Stand İle Birlikte Net: 4.5kg

Stand Olmadan Net: 4.0kg
VIDEO GIRIşI

Frekans: Fh: 30 – 82kHz, Fv: 50 – 85Hz

Senk.: H/V separated (TTL)

Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohms)
GÜÇ YÖNETİMİ

Meets TCO'99 and ENERGY STAR® standards
ERGONOMIK ÖZELLIKLER

Eğilme: Down 5°, Up 20°

PC:	VGA up to 1440 x 900 non-interlaced (max. 60Hz)
Mac®:	Power Mac™ G3/G4/G5 up to 1152 x 870 (max. 60Hz)

Stand İle Birlikte Fiziksel:	451 x 391 x 197
Stand Olmadan Fiziksel:	451 x 334 x 52

Analog:	15-pin mini D-sub (detachable cable)
Güç:	3-pin AC plug (CEE22)
Ses:	3.5mm stereo audio line-in

Gerilim:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Tüketim:	32 watt (typ.), <1 watt in power save mode

Frekans:	Fh: 30 – 82kHz, Fv: 50 – 85Hz
Senk.:	H/V separated (TTL)
Analog:	RGB analogue (0.7/1.0 Vp-p, 75 ohms)

Isı:	5°C – 35°C
Nem:	20% – 80% (non-condensing)
