Önemli Özellikler
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • 64-point touch with palm rejection and Write Away offer precise, instant annotation.
  • Integrated ViewSonic Education Software empowers seamless classroom experiences.
  • Built-in 2.1-channel speakers with subwoofer and 8-microphone array deliver rich audio.
  • Light and motion sensors optimize brightness, improving energy efficiency and panel lifespan.

ViewBoard IFP5541-1-1C
Ürün Açıklama
Bring powerful performance and effortless interactivity to any classroom with the ViewBoard® IFP41-1 Series, available in 55", 65", 75", 86", and 98" models. Built-in ambient light and PIR motion sensors allow for automatic screen brightness adjustment to support sustainability, while 64-point touch technology and instant annotation with Write Away offer smooth, responsive collaboration. Dual USB-C ports provide seamless connectivity with up to 100W power delivery, enabling convenient single-cable charging and data transfer. As an EDLA-certified interactive display with Android 16, it ensures regular security updates and reliable access to the latest Google Play Store apps. Integration with ViewSonic Education Software enhances functionality with whiteboarding, wireless casting, and device management solutions, creating a smart, secure, and connected teaching experience.

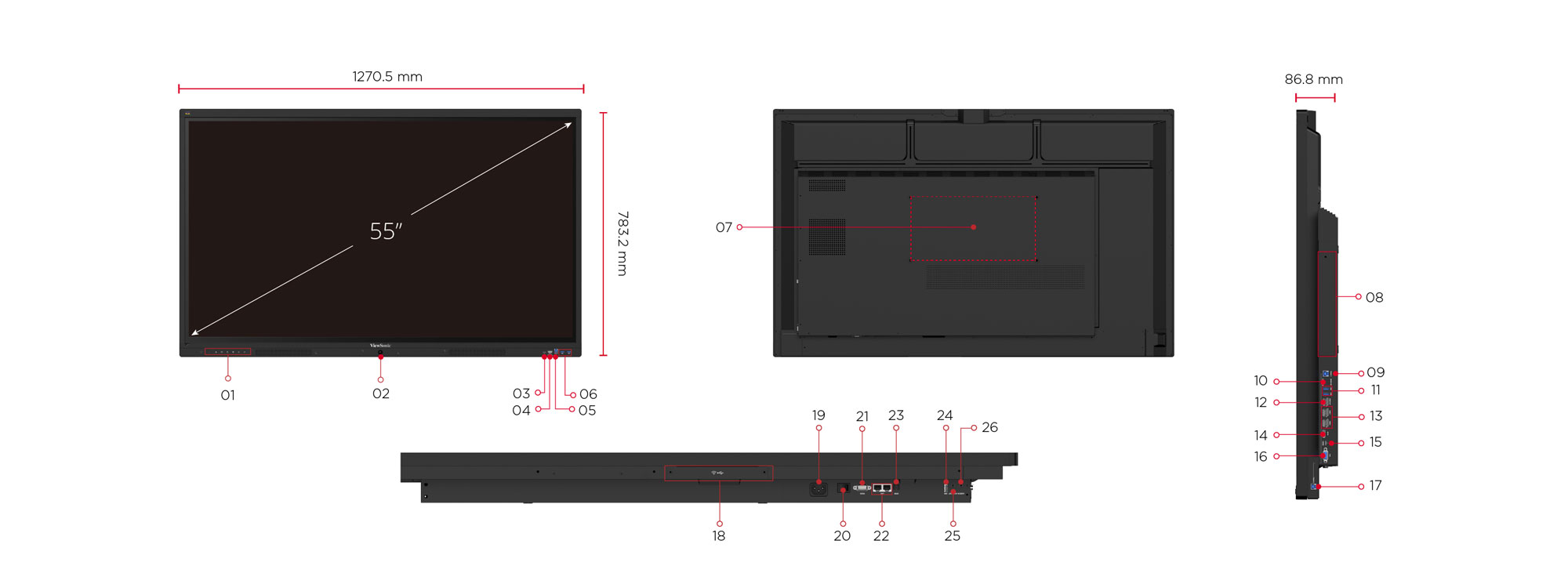

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI
  5. Touch 3
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 400 x 200 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Touch 2
  18. WiFi Slot
  19. AC In
  20. Power Switch
  21. RS232
  22. LAN x 2
  23. SPDIF
  24. USB 2.0
  25. Audio Out
  26. Audio In
Bizi Ziyaret Edin
  • www.viewsonic.com
  • EKRAN
    Panel Boyutu: 55"
    Panel Türü: TFT LCD Module with DLED Backlight
    Görüntü Alanı (mm): 1209.6mm (H) x 680.4mm (V) (54.6")
    En Boy Oranı: 16:9
    Çözünürlük: UHD 3840x2160
    Colors: 1.07B colors
    Parlaklık: 450 nits
    Kontrast Oranı: 5000:1 (max. with DCR enabled)
    Tepki Süresi: 6.5ms
    İzleme Açıları: H = 178°, V = 178° typ.
    Arka Aydınlatma Ömrü: 50,000 hours
    Yüzey Kaplama: Hardness:9H, Anti-glare coating
    Yön: Landscape
  • PLATFORM
    İşlemci: Octa-Core CPU
    RAM: 8GB
    Depolama: 128GB
  • TOUCH
    Tip/ Teknoloji: Ultra Fine Touch Techology (IR Recognition)
    Dokunmatik Çözünürlük: 32767×32767
    Dokunmatik Nokta: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1:HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI 2.1 4K@60Hz with CEC, ARC)x1+(HDMI 2.1 4K@60Hz with CEC)x1]
    RGB / VGA: x1
    DisplayPort: x1
    Ses: x1
    RS232: x1
    SD/SDHC: TF Card Slot(Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Ses: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45​: x2
  • USB
    Tip A: x5 (Front x 2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
    Tip B: ×3 (Front ×1, Rear ×2 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2/3 with 2.0 data)
    Tip C: x2 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • HOPARLÖRLER
    20W x 2 Front soundbar + 15W x 1 subwoofer
  • MICROPHONE
    Built-in 8-array microphone
  • YERLEşIK İşLETIM SISTEMI
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Temel Not Alma Yazılımı: myViewBoard for Android
    Profesyonel Not Alma Yazılımı: myViewBoard for Windows (embedded in VPC)
    Kablosuz Sunum: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • DIğER ÖZELLIKLER
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    IFP ve slot cihaz arasında kolay LAN paylaşımı: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • Güç
    Voltaj: 100-240V AC +/- 10% Wide Range
    Tüketim: On:74.25 W Off:< 0.5 W
  • ERGONOMICS
    Duvara Monte (VESA® ): 400 x 200
  • OPERATING CONDITIONS
    Sıcaklık (º C): 0°C to 40°C
    Nem: 20% ~ 80% RH non-condensing
  • BOYUTLAR (G X Y X D)
    Fiziksel (inç / mm): 50.00 x 30.83 x 3.42 in / 1270.5 x 783.2 x 86.8 mm
    Paket (inç / mm): 54.92 x 34.45 x 8.46 in / 1395 x 875 x 215 mm
  • WEIGHT
    Net (lb / kg): 54.45lb / 24.7kg
    Brüt (lb / kg): 72.53 lb / 32.9kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • ENERGY STAR SüRüMü
    8.0
  • EEI PUANı
    E
  • PAKET İÇERİĞİ
    1. Power Cord x1 3 meters,

    by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Type-C cable x1 1.8 meters , USB-IF certified

    3. USB Touch cable x1 3 meters

    4. Touch pen (Passive pen) x 2

    5. Quick Start Guide (With Compliance statement )

    6. Screw x 4 ( wall mount 4)

    7. HDMI cable x1 3meters,

     (HDMI LA certified)

    8. Remote controller x1

    9. AAA battery x2
  • UYUMLU SLOT PC
    VPCF5-S55-G1-2A /VPCF5-W55-G1-2A / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
