Önemli Özellikler

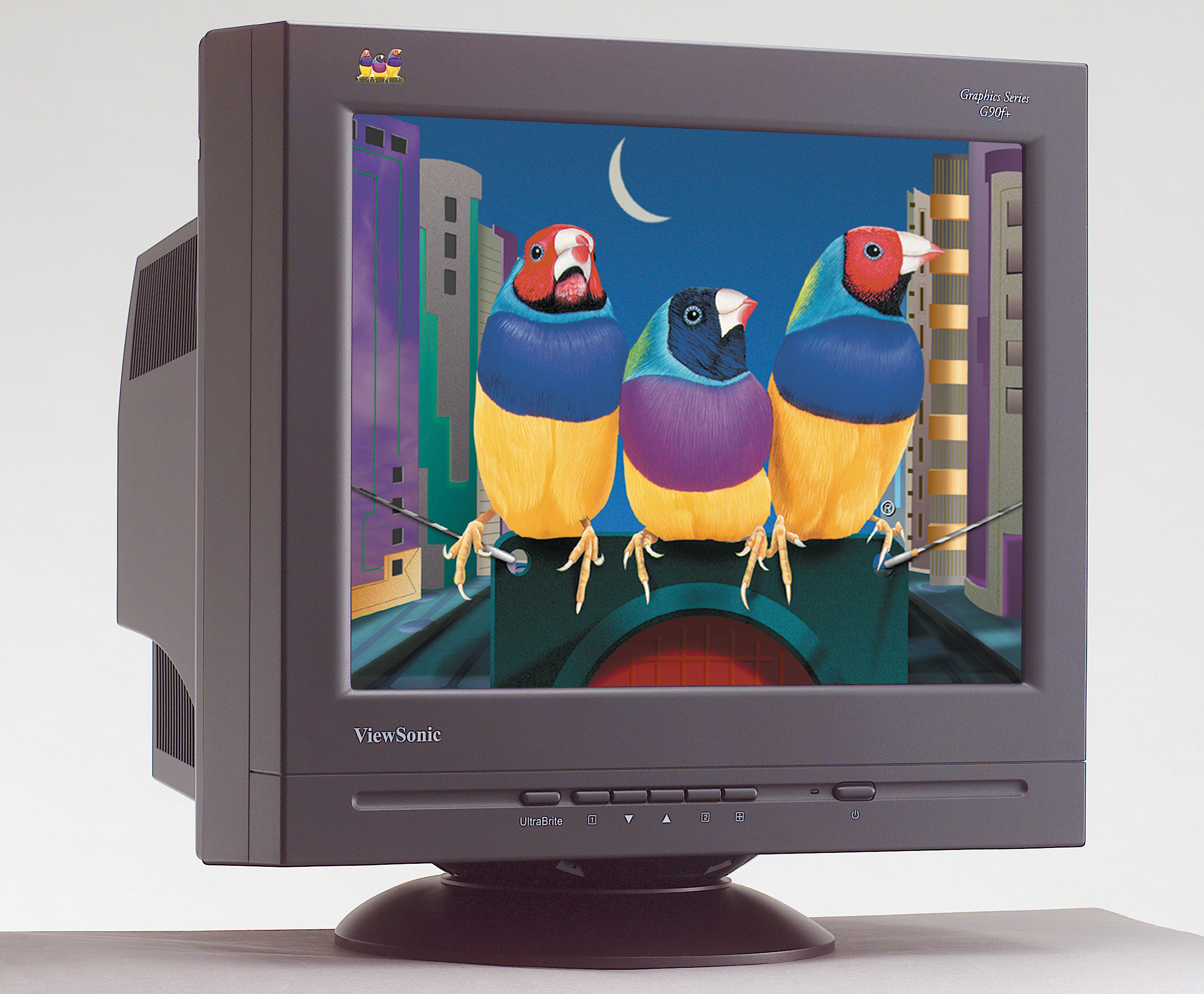

G90fB
Ürün Açıklama
Bizi Ziyaret Edin
  • www.viewsonic.com
  • COLORS
    Black
  • UYUM
    PC: PC and compatible (from VGA up to 1920 x 1440)
    Mac®: Power Mac™ G3/G4
    Diğer: Most Workstations
  • BOYUTLAR
    Fiziksel (mm): 445 x 424 x 465
  • GİRİŞ SİNYALİ
    Frekans: Fh: 30 – 97kHz
    Fv: 50 – 160Hz
    Video: RGB analogue (0.7 Vp-p, 75 ohms)
    Senk.: H/V separated (TTL)
  • KONEKTÖRLER
    Güç: 3-pin plug (IEC320)
    Sinyal: 15-pin mini D-sub
  • Güç
    Gerilim: AC 90 – 264V, 50/60Hz (± 2Hz) (auto switch)
    Tüketim: 70W (typ.), < 2W in power save mode
  • KONTROLLER
    OSD: Contrast, brightness, zoom, H/V position, H/V size, pincushion, pin balance, trapezoid, parallelogram, top/bottom hook, tilt, V moiré reduction, ViewMatch® colour (9300k, 6500k, 5000k, user RGB), degauss, OSD position, language, ViewMeter (mode information), memory recall, OSD lock
    Fiziksel: Power on/off, menu [1], up, down, select [2], recall
  • İŞLETİM KOŞULLARI
    Isı: 0°C to 40°C
    Nem: 5% to 95% (non condensation)
  • AğıRLıK
    Net: 18kg
  • VIDEO GIRIşI
    Bant Genişliği: 240MHz (typ.)
  • GÜÇ YÖNETİMİ
    Meets TCO'03 and Energy Star™-standards
  • CRT
    Tür: 48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat®
    Nokta Sıklığı: 0.20mm horizontal x 0.13mm vertical, 0.25mm diagonal
    Fosfor: Pigment coated P22 (Cadmium free)
    Cam Yüzeyi: Tint (TM ~ 53.6%), ARAG® screen treatment
  • VİDEO SİNYALİ
    Video: RGB analogue (0.7 Vp-p, 75 ohms)
    Senk.: H/V separated (TTL)
    Frekans: Fh: 30 – 97kHz
    Fv: 50 – 160Hz
  • TAK VE ÇALIŞTIR
    DDC1, DDC2B
  • HATALı YAKıNSAMA
    0.25mm (max.) at centre

    0.35mm (max.) at corner
  • PROGRAMLANABİLİR MODLAR
    Fabrika: 12
    Kullanıcı: 10
  • EKRAN ALANı
    Fabrika Ayarı: 352mm (H) x 264mm (V) (typ.)
    Maksimum Tarama: Maximum Scan 360mm (H) x 270mm (V)
    (depending on signal timing used)
