Kurumsal Ekranlar

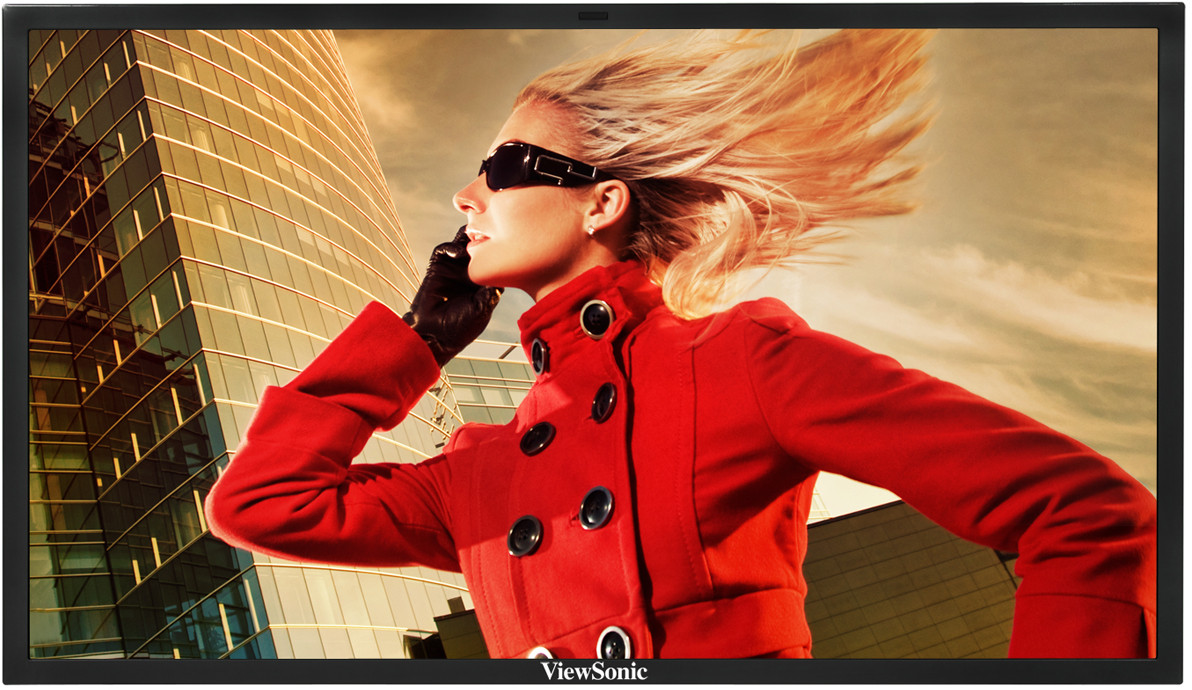

CDP6530T
Önemli Özellikler
Ürün Açıklama
The ViewSonic ® CDP6530-T is a full HD touch interactive commercial display with 1920x1080p panel resolution with 500 nits (typ) of brightness and 20,000:1 dynamic contrast ratio. Key features include optical 2-touch capability usablewith your finger or stylus. Additional features include versatile inputs including an Intel® OPS slot for easy integration of a media player, as well as the traditional HDMI, DVI, VGA, YPbPr, S-video CVBS inputs. Built-in 12W (x2) speakers are also provided. The new CDP6530-T Also features internal scheduling as well as a tiling feature with video wall support up to a 10x10 display matrix. Other features include remote and front panel lockout, PIP (picture in picture) built in AC power for adding a media player and RS-232 loop through for automated control.
Bizi Ziyaret Edin
- www.viewsonic.com
-
COLORS
Black -
LCD
Tür: 65" (64.6" viewable) color TFT active matrix, wide LCD Kontrast Oranı: 5000:1 (typ)
20,000:1 (Dynamic)Görüntüleme Açıları: 178º horizontal, 178º vertical Parlaklık: 500 cd/m2 (typ) Ekran Alanı: 56.2" horizontal x 31.6" vertical; 64.5" diagonal Optimum Çözünürlük: 1920x1080, 600mm dot pitch Yanıt Süresi: 8ms Işık Kaynağı: Long life, 50,000 hrs. (typ) Görüntü Oranı: 16:9 Panel Yüzeyi: Anti-glare, hard coating (3H) -
BOYUTLAR
Stand İle Birlikte Fiziksel: 59.9" x 40.4" x 16.4" / 1522 x 1026 x 417 mm Stand Olmadan Fiziksel: 59.9" x 35.5" x 5.4" / 1522 x 903 x 138 mm Kutu İle Birlikte: 64.8" x 41.2" x 11.7" / 1647 x 1046 x 298 mm -
PAKET İÇERİĞİ
CDP6530-T LCD display, power cable, remote control with batteries,
User Guide CD -
SES
Amplifikatör: 12-watt / 8 ohm -
GIRIş
Video Girişi: HDMI, DVI, component, VGA, S-video, CVBS (BNC) Video Çıkışı: VGA, component Control Input/Output: RS-232 -
GİRİŞ SİNYALİ
TV/Video komp.: 480i, 480p, 720p, 1080i, 1080p -
KONEKTÖRLER
Dijital: HDMI, DVI, S-video YPbPr, CVBS Güç: 3-pin plug Analog: 15-pin mini D-sub (VGA) -
Güç
Gerilim: AC 100–240V (universal), 50–60Hz Tüketim: 520W (typ) -
KONTROLLER
Resim: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpnessÖn Panel: Power, Exit, +, –, Menu/Enter Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, resetVGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. positionSes: Volume, mute, audio source -
EKRAN
Touch: Type: Optical Imaging
Capability: 2 simultaneous touches
Support OS: Windows® 2000, XP, Vista®, Windows 7 (multi-touch requires
driver), Max OS X, and Linux (requires evtouch)
Touch Resolution: 32,767 x 32,767
Accuracy: +/- 3.5 mm over 95% of touchable area
Response Time: 9 ms to 22 ms depending on configuration; 14 ms (typ)
Touch Method: Touch with any object, Finger, Pen or Brush
Connection: USB
Glass: 5mm tempered glass -
MEVCUT OPSİYONEL AKSESUARLAR
Stand (optional), Wall Mount (WMK-013),
Wall Mount with Locking Media Player Cradle (WMK-028) -
DUVAR MONTAJI
VESA 200mm x 400mm, 400mm x 400mm -
AğıRLıK
Brüt: 189.6 lb. / 86.0 kg Net: 156.5 lb. / 71 kg -
İŞLETİM KOŞULLARI
Nem: 20–90% (non-condensing) Temperature (landscape): 32–104ºF (0–40ºC) Temperature (portrait): 41–95ºF (5–35ºC) -
AUDIO OUT
Speakers: Internal 12-watt (x2) -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws. -
COUNTRY OF ORIGIN
Taiwan -
ÇöZüNüRLüK
640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, SECAM, 4.43 NTSC
Component: 480i,480p,720p,1080i,1080p
