CDP4235-T
Önemli Özellikler
Ürün Açıklama

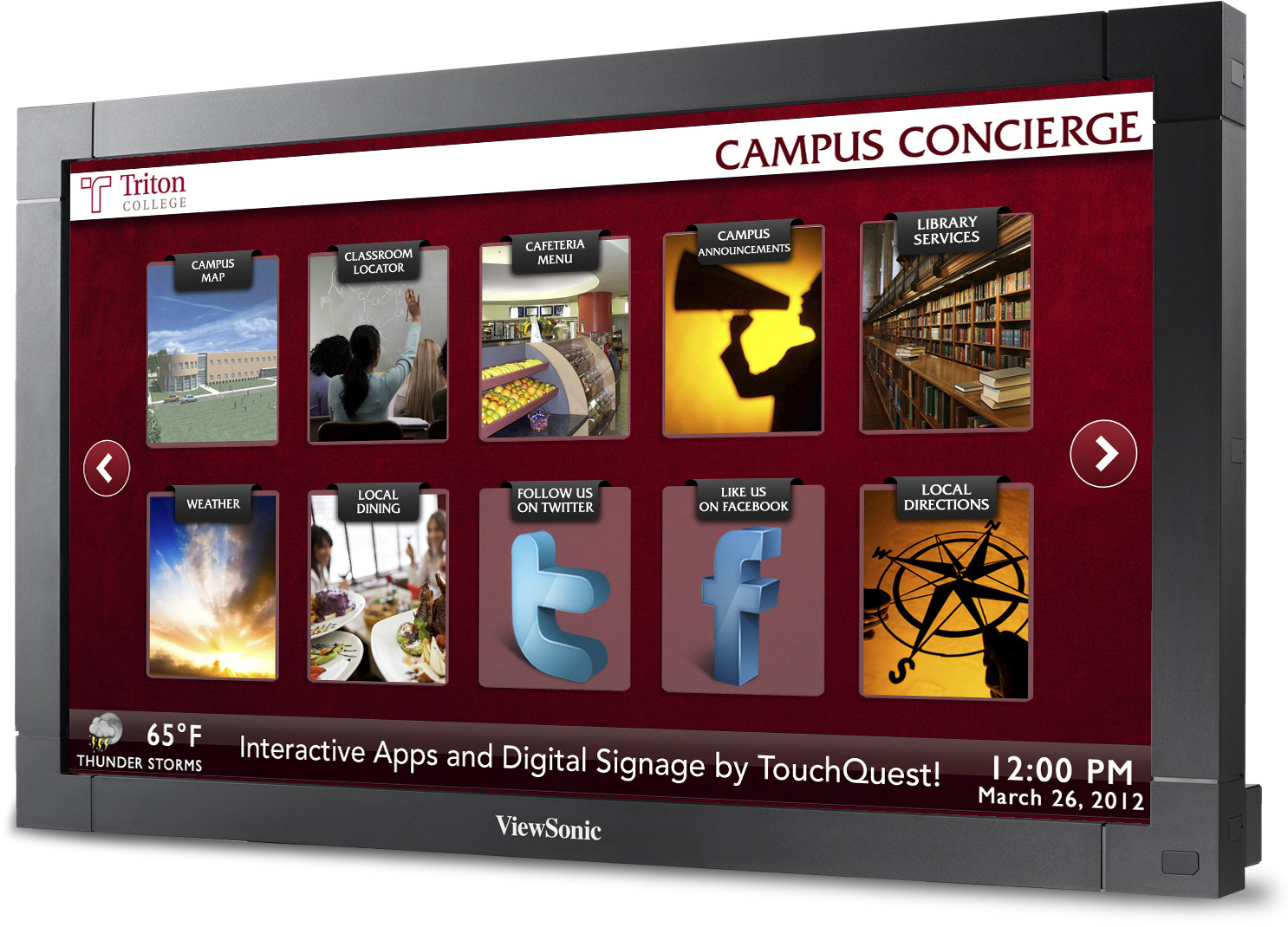

The ViewSonic® CDP4235-T Full HD Touch Commercial Display features a 1920x1080p panel with a 4000:1 contrast ratio and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S-Video and composite, YPbPr and built-in 10W x2 speakers. The CDP4235-T will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capable and RJ-45 are provided for remote control.
Bizi Ziyaret Edin
- www.viewsonic.com
-
LCD
Tür: 42" color TFT active matrix, wide LCD Kontrast Oranı: 4000:1 (typ) Görüntüleme Açıları: 178º horizontal, 178º vertical Parlaklık: 450 cd/m2(typ) Ekran Alanı: 36.6" horizontal x 20.6" vertical; 42" diagonal Optimum Çözünürlük: 1920x1080, 435mm dot pitch Yanıt Süresi: 8ms Işık Kaynağı: Long life, 50,000 hrs. (typ) Görüntü Oranı: 16:9 Panel Yüzeyi: Anti-glare, hard coating (3H) -
BOYUTLAR
Stand İle Birlikte Fiziksel: 39" x 25.4" x 11.2" / 991.6 x 621 x 328.8mm Stand Olmadan Fiziksel: 39" x 25.5" x1.5" / 991.6 x 115.5 x 25.5mm Kutu İle Birlikte: 44.8" x 29.3" x12" / 1139 x 743 x 305.2 mm -
PAKET İÇERİĞİ
LCD display, power cable, remote control with batteries, User Guide CD -
GIRIş
Video Girişi: HDMI, DVI, component, VGA, S-Video, composite Video Çıkışı: VGA, component, DVI Control Input/Output: RS-232/RJ45 -
GİRİŞ SİNYALİ
TV/Video komp.: 480i, 480p, 720p, 1080i, 1080p -
KONEKTÖRLER
Dijital: HDMI, DVI Güç: 3-pin plug Analog: 9-pin mini D-sub (VGA) -
Güç
Gerilim: AC 100–240V (universal), 50–60Hz Tüketim: 210W (typ) -
KONTROLLER
Resim: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness Ön Panel: Power, Exit, +, –, Menu/Enter Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Giriş: VGA, DVI, HDMI, YPbPr OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position Ses: Volume, mute, audio source -
DUVAR MONTAJI
VESA® 400mm x 200mm, 200mm x 200mm -
AğıRLıK
Brüt: 61.7 lb. / 28 kg Net: 50.7 lb. / 23 kg -
İŞLETİM KOŞULLARI
Nem: 10–80% (non-condensing) Temperature (landscape): 32–104ºF (5–40ºC) Temperature (portrait): 32–95ºF (5–35ºC) -
AUDIO OUT
Speakers: Internal 10-watt (x2) -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws.
