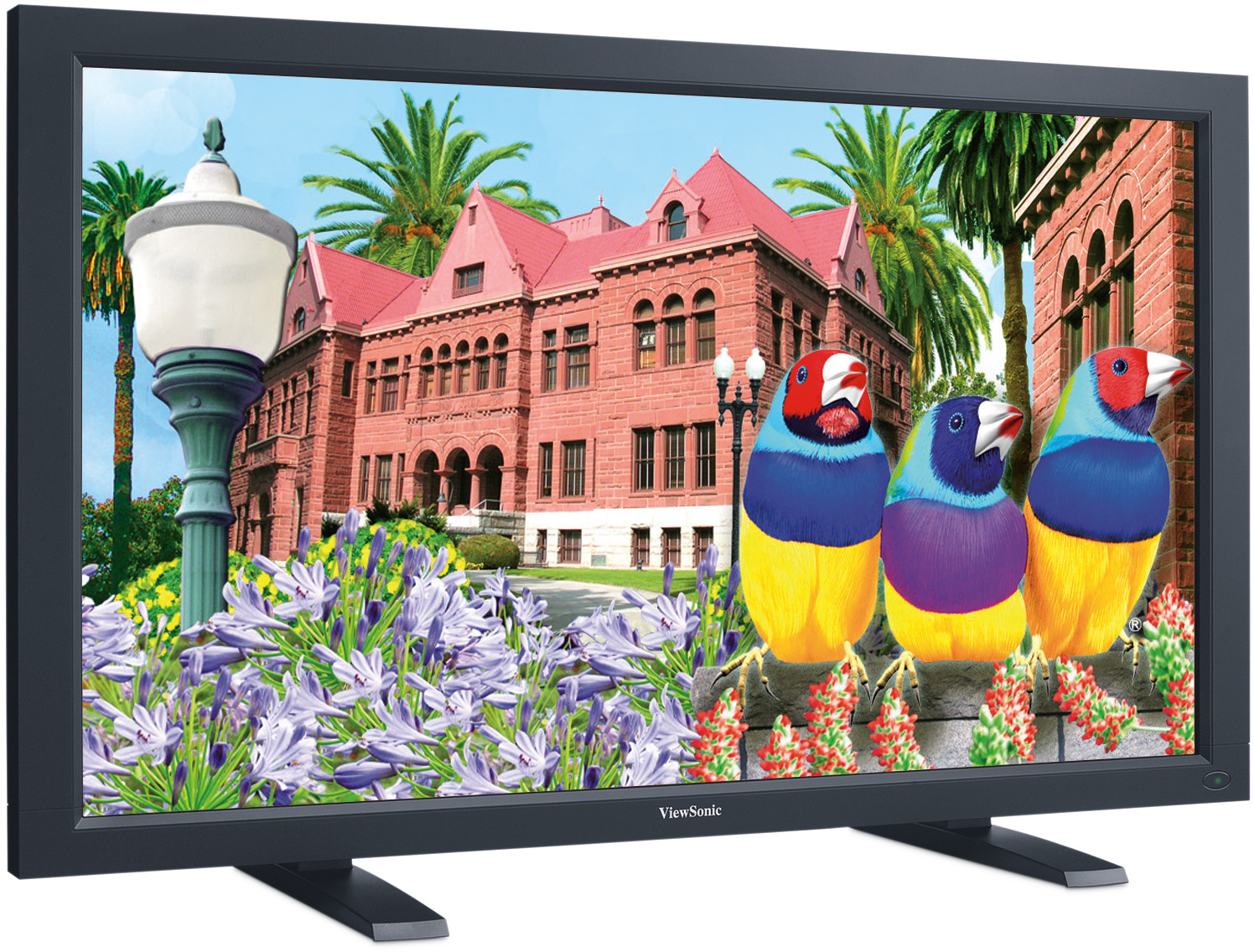

ViewSonic CD4620 117 cm / 46" 1080P COMMERCIAL HD LCD DISPLAY

COLORS

Black

LCD

Tür:	117 cm / 46" wide colour TFT active matrix, 1920 x 1080
Kontrast Oranı:	1500:1 (typ.)
Görüntüleme Açıları:	176° horizontal, 176° vertical (at 10:1)
Parlaklık:	450cd/m² (typ.)
Cam Yüzeyi:	Anti-glare, hard coating (2H)
Ekran Alanı:	101.8 cm horizontal x 57.3cm vertical, 116.8cm diagonal
Yanıt Süresi:	6ms (grey-to-grey)
Görüntü Oranı:	16:9
Gerçek Çözünürlük:	1920 x 1080
Renk Desteği:	16.7M colours supported (8-bit)

BOYUTLAR

Fiziksel (GxYxD): 1122 x 663 x 138 mm (without stand)
PAKET İÇERİĞİ

LCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
SES

Sinyal: 2 x 10 watt with SRS TruSurround¹
GİRİŞ SİNYALİ

TV/Video komp.: 480i, 480p, 720p, 1080i, 1080p

Frekans: Fh: 31-91kHz,

Fv: 50-75Hz

Dijital: HDMI (HDCP enabled; TMDS, 100 ohm)

Senk.: H/V separate (TTL)

KONEKTÖRLER

Ses Çıkışı:	1 x RCA (left/right) 2 x speaker connectors (for optional speakers)
Kompozit Video Girişi:	1 x RCA (CVBS)
S-Video Girişi:	1 x 4-pin mini DIN jack (Y/C)
Komponent Video Girişi:	1 x RCA set (YPbPr/YCbCr)
Ses Girişi:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Analog Giriş:	1 x 15-pin mini D-Sub (detachable cable)
Analog Çıkış:	1 x 15-pin mini D-Sub (detachable cable)
Kompozit Video Çıkışı:	1 x RCA (CVBS) 1 x BNC
Güç:	3-pin plug
Kontrol/Net Çıkışı:	1 x D-sub RS-232
Kontrol/Net Girişi:	1 x D-sub RS-232

Güç

Gerilim: AC 100–240V (universal), 50/60Hz

Tüketim: 285 watt (max.), <5 watt in power save mode

KONTROLLER

Temel:

Power, menu, exit, source, channel +/-, volume +/-, main power switch

OSD:

Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature [10500K, 9300K, 7500K, 6500K, User-RGB], picture reset), Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset), Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset), Configuration Menu (auto setup, auto adjust, power save, language [English, French, German, Russian, Simplified Chinese, Spanish], screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset), Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], date/time, auto on/off scheduler [day, hour, minute, input], DDC/CI, advanced reset)

İŞLETİM KOŞULLARI

Isı: 0°C–40°C

Nem: 10–85% (non-condensing)
AğıRLıK

Net: 34.6kg (with optinal stand), 29.3kg (without stand)

Brüt: 35.9kg
VIDEO GIRIşI

Analog/Dijital: HDMI (x2), S-video, component, composite, RCA (x2)
DUVAR MONTAJI

VESA FDMI 400mm x 200mm, M6 screws

TV/Video komp.:	480i, 480p, 720p, 1080i, 1080p
Frekans:	Fh: 31-91kHz, Fv: 50-75Hz
Dijital:	HDMI (HDCP enabled; TMDS, 100 ohm)
Senk.:	H/V separate (TTL)

Gerilim:	AC 100–240V (universal), 50/60Hz
Tüketim:	285 watt (max.), <5 watt in power save mode

Net:	34.6kg (with optinal stand), 29.3kg (without stand)
Brüt:	35.9kg

Isı:	0°C–40°C
Nem:	10–85% (non-condensing)
