โปรเจคเตอร์

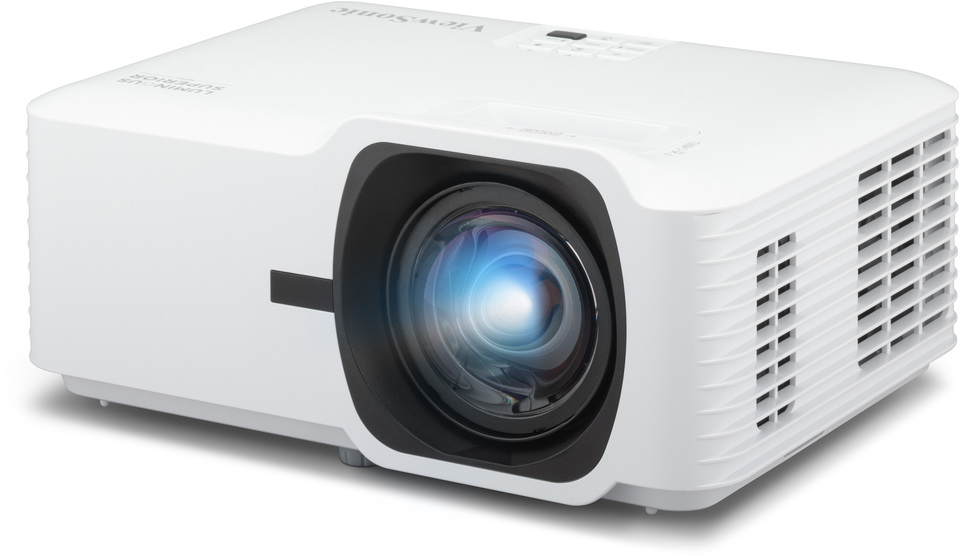

LSD400HD-ST
คีย์ คุณสมบัติ
- 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
- 0.5 short throw for large images even in limited spaces
- 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
- High native contrast ratio powered by a 0.65” DMD chip and DLP technology
- Installation flexibility: H/V keystone, 4 corner adjustment, and 360° projection
- Centralized LAN control for efficient management
สินค้า รายละเอียด
The LSD400HD-ST is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. Powered by 3rd-generation laser phosphor technology, it provides 4,000 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing up to 59% power consumption than competing lamp projectors. With a 0.5 short throw, it delivers a 100” image from just 1.1 meters, ideal for immersive visuals in space-constrained environments. Delivering ultra-large projections up to 300” in sharp 1080p Full HD resolution, this projector leverages high native contrast from a 0.65” DMD chip with DLP technology. Equipped with H/V keystone & 4 corner correction, and 360° projection, the LSD400HD-ST supports flexible installation options, making it an excellent choice for golf simulation setups, exhibitions, and retail applications.
- Front IR
- Lens
- HDMI 2.0 / HDCP 2.2 x2
- RJ45
- RS232
- USB-A (5V/1.5A, Service)
- Audio Out
- DC In
- Focus Ring
- Power Button
- Keypad
- Top IR
เยี่ยมชม เรา
- www.viewsonic.com
-
SPECIFICATION
Projection System: 0.65"1080P Native Resolution: 1920x1080 Brightness: 4000 (ANSI Lumens) Brightness (Center Lumens): 4800 Contrast Ratio: 3000000:1 Display Color: 1.07 Billion Colors Light Source Type: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Lens: F=2.8, f=7.51mm Projection Offset: 132%+/-10% Throw Ratio: 0.5 Optical Zoom: Fixed Digital Zoom: 0.8x-2.0x Image Size: 40"-300" Throw Distance: 0.44-3.29m
(100"@1.10m)Keystone: H:+/-15° , V:+/-15° Audible Noise (Normal): 32dB Audible Noise (Eco): 27dB Input Lag: 16.7ms Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160) HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Horizontal Frequency: 15K-135KHz Vertical Scan Rate: 24-120Hz -
INPUT
HDMI: 2
(HDMI 2.0, HDCP 2.2) -
OUTPUT
Audio-out (3.5mm): 1 Speaker: 15W USB Type A (Power): 1 (5V/ 1.5A) -
CONTROL
RS232 (DB 9-pin male): 1 RJ45 (LAN control): 1 USB Type A (Services): 1
(share with USB A Output) -
OTHERS
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 9.23APower Consumption: Normal: 143W
Standby: <0.5WOperating Temperature: 0~40℃ Carton: Brown Net Weight: 3.10kg Gross Weight: 4.6kg Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm Packing Dimensions: 400x280x155mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Power Cord: 1 Remote Control: 1 QSG: Yes Lens Cover: Yes Warranty Card: Yes (CN Only) -
OPTIONAL ACCESSORY
Wall/Ceiling Mount: PJ-WMK-305 Carry Bag: PJ-CASE-008
