คีย์ คุณสมบัติ
  • Pre-assembled kit ready for instant use
  • Foldable screen with the movable flight case for easy delivery
  • Built-in stand with motorized height adjustment
  • Impressive audio from Harman Kardon speakers
  • Seamless large display for rental at any event/exhibition

LDS135-151
สินค้า รายละเอียด
The ViewSonic® LDS135-151 is a foldable 135” All-in-One LED display that boasts instant use, easy delivery, and convenient maintenance, making it an ideal rental-ready solution for events, exhibitions, or any other short-term usage. The pre-assembled design and built-in motorized height adjustment stand enable effortless setup within just a few minutes. Delivery convenience is greatly enhanced with the new foldable screen design, reducing the packaging size of the movable flight case by nearly 50% compared to the previous generation, thus minimizing shipping costs. With the seamless large screen and superior built-in Harman Kardon speakers, be ready to impress your audience everywhere from high-end board rooms and receptions to galleries, auditoriums, and other large venues.

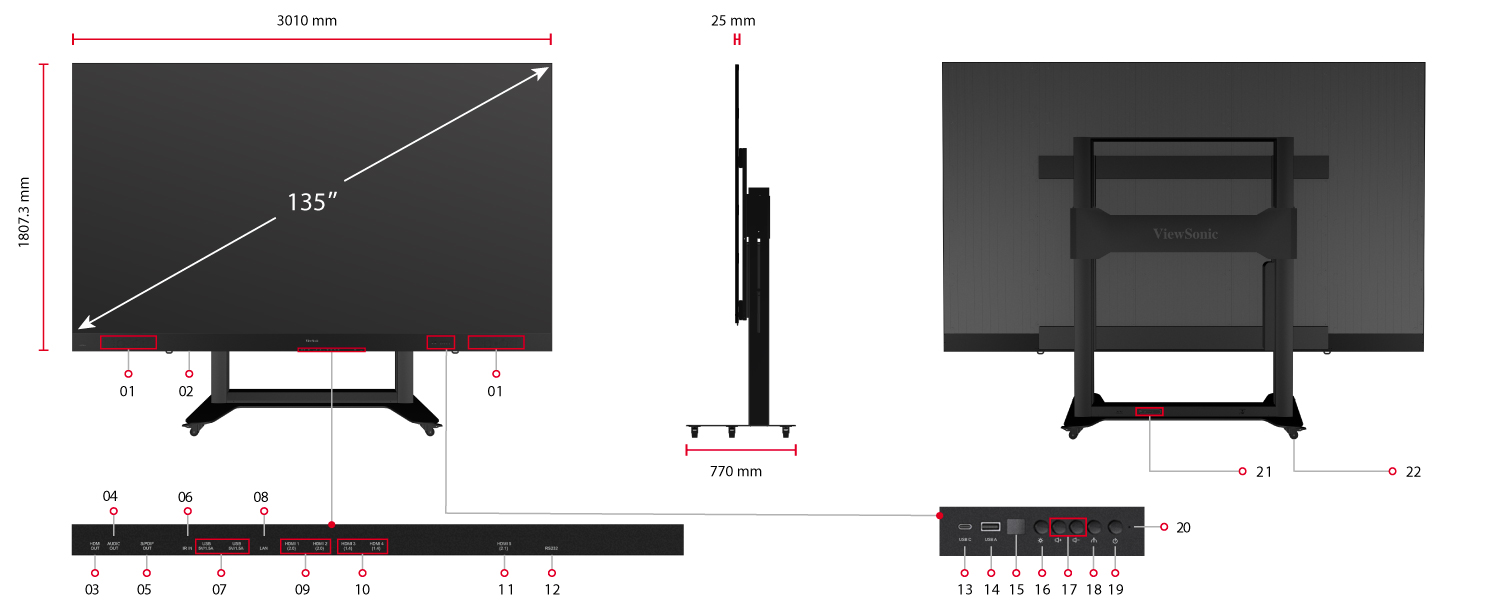

  1. Harman Kardon Speakers
  2. Power Button
  3. HDMI Out
  4. Audio Out
  5. S/PDIF Out
  6. IR In
  7. USB 2.0 (5V/1.5A) x 2
  8. LAN & Control
  9. HDMI 2.0 x 2
  10. HDMI 1.4 x 2
  11. HDMI 2.1
  12. RS232
  13. USB-C (5V/2A)
  14. USB 2.0 (5V/1.5A)
  15. IR Receiver
  16. Menu Control: Brightness Level
  17. Menu Control: Volume
  18. Menu Control: Input Source
  19. Power Button
  20. Indicator Light
  21. Control Panel: Height Adjustment
  22. 360° Silent Wheels
เยี่ยมชม เรา
  • www.viewsonic.com
  • SPECIFICATION
    Screen Size: 135''
    Display Area (mm): 3000 (H) x 1687.5V)
    Native Resolution: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1
    Bonding Wire: Gold
    Pixel Pitch (mm): 1.56
    Refresh Rate: 4440Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    Orientation: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    Local Storage: Total 64GB
    (56GB available storage)
    Embedded OS: Android 9.0
    Resolution Support: VGA(640 x 480) to
    1080p(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
    Horizontal Frequency: 23-120 kHz
    Vertical Scan Rate: 15-135 Hz
  • INPUT
    HDMI: x6
    (HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2, HDMI 2.0 internal x1)
    USB Type A: x3
    ( USB2.0 x3)
    RJ45 Input (Internet): x1
    IR in: x1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: x1
    (Video input、 Power output (5V/2A))
    Audio-in (3.5mm): x1
  • OUTPUT
    HDMI out: x2
    (HDMI 2.0 external x1,internal x1)
    Speaker: 20W x2 (Harman Kardon)
    Audio out (3.5mm): x1
    USB Type A (Power): Shared with USB input
    (5V/1A x3)
  • CONTROL
    RJ45 (LAN control): x1(shared with internet)
    USB Type A (Services): x1(shared with USB A input)
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • OTHERS
    Power Supply Voltage: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
    (vary by country)
    Power Consumption: 1200W (typ), 2300W (max)
    < 0.5W (Sleep), < 0W (Off)
    Operating Temperature: 0~40℃
    LED Module Quantity: 100
    Ingress Protection Rating: IP30
    Net Weight: 496 lbs
    (225 kg)
    Gross Weight: 728 lbs
    (330 kg)
    Screen Dimensions (WxHxD): 1800x1948x770 mm(min.)
    3010x2598x770 mm(max.)
    Packing Dimensions: 74.8x80x31.5 inches
    (1900x2032x800 mm)
  • STANDARD ACCESSORIES
    Power Cord: x1
    LAN Cable (Cat 5A): x1 (5m)
    IR Extender Cable: x1(3m)
    Remote Control: x1
    QSG: x1
    Spare Parts: LED PCB Unit x7
    Maintenance Tool: LD-MK-001 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-001
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
