คีย์ คุณสมบัติ
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • Built-in ViewSonic Education Software supports dynamic learning and enriched classroom experiences.​
  • 64-point advanced touch recognition and palm rejection enhances interactivity and collaboration.​
  • USB-C with 65W power delivery simplifies display, audio, touch, and network connectivity.​
  • Light and motion sensors automatically adjust brightness for better energy efficiency and panel lifespan. ​
​​​

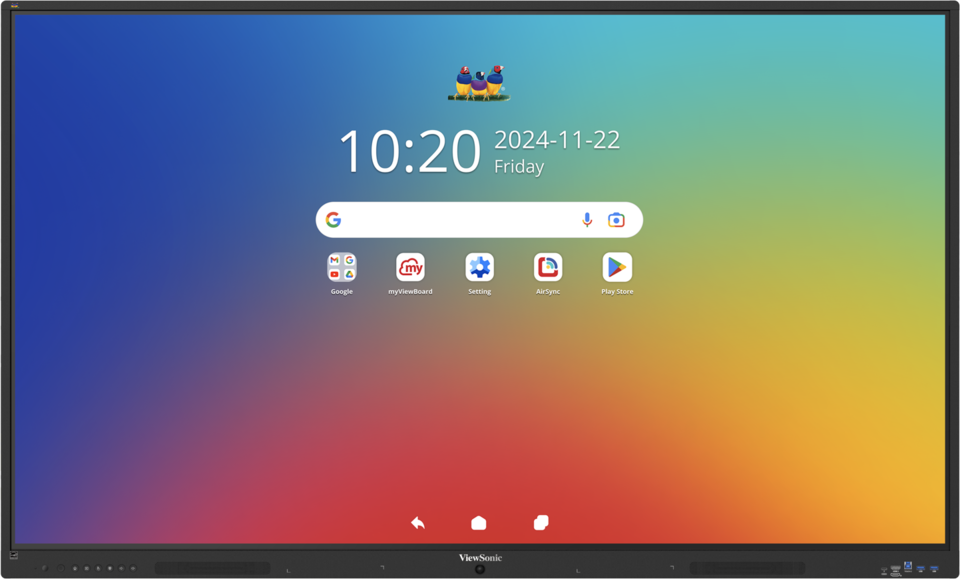

ViewBoard IFP6535-1-1C
สินค้า รายละเอียด
Experience fast, smooth, and reliable performance in every class with the ViewBoard® IFP35-1 Series. Available in 65", 75", and 86" models, it’s powered by an octa-core CPU with 128GB storage. EDLA-certified Android 16 ensures secure access to Google Play apps and a responsive system for effective teaching. Integrated ViewSonic Education Software includes tools for whiteboarding, wireless casting, and device management, helping teachers create interactive and engaging lessons while streamlining IT workflows. Built-in ambient light and motion sensors complete the experience, optimizing brightness, conserving energy, and extending panel life for smarter, more efficient classrooms.​

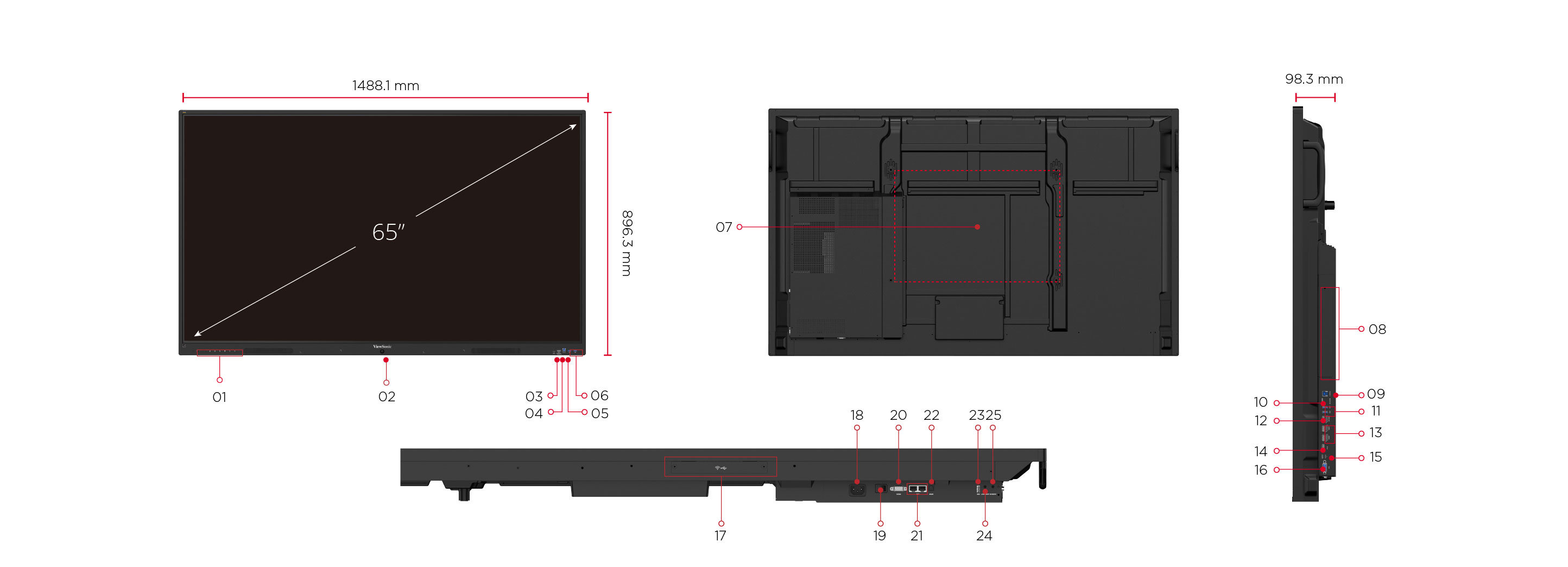

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI 3
  5. Touch 2
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 600 x 400 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Wi-Fi Slot
  18. AC In
  19. Power Switch
  20. RS232
  21. LAN x 2
  22. SPDIF
  23. USB
  24. Audio Out
  25. Audio In
เยี่ยมชม เรา
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 65"
    Panel Type: TFT LCD Module with DLED Backlight
    Display Area (mm): 1428.48mm(H) x 803.52mm(V)(64.5" diagonal)
    Aspect Ratio: 16:9
    Resolution: UHD 3840 x 2160
    Colors: 1.07B colors (8bit+FRC)
    Brightness: 350 nits (typ.)
    Contrast Ratio: 5000:1 (max. with DCR enabled)
    Response Time: 6.5ms
    Viewing Angles: H = 178°, V = 178° typ.
    Backlight Life: 50,000 Hours
    Surface Treatment: Hardness: 9H, Anti-glare coating
    Orientation: Landscape
  • PLATFORM
    Processor: Octa-Core CPU
    RAM: 8GB
    Storage: 128GB
  • TOUCH
    Type/ Tech: Ultra Fine Touch Technology (IR Recognition)
    Touch Resolution: 32767 x 32767
    Touch Point: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1: HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI2.1 4K@60Hz with CEC, ARC)x1+(HDMI2.1 4K@60Hz with CEC)x1]
    RGB / VGA: x1
    DisplayPort: x1
    Audio: x1
    RS232: x1
    SD/SDHC: x1 TF Card Slot (Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Audio: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    Type A: x5 (Front x2 and Rear x2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x1 with USB 2.0 for system update)
    Type B: x2 (Front x1 and Rear x1 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2 with 2.0 data)
    Type C: x2 (Frontx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • SPEAKERS
    20W x 2 Front soundbar
  • EMBEDDED OS
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Basic Annotation Software: myViewBoard for Android
    Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
    Wireless Presentation: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • SPECIAL FEATURES
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    Consumption: On: 69.56 W ; Off:< 0.5 W
  • ERGONOMICS
    Wall Mount (VESA® ): 600 mm x 400 mm
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH Non-Condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 58.58 x 35.29 x 3.96 in / 1488 x 896.3 x 98 mm
    Packaging (inch / mm): 63.78 x 39.80 x 7.05 in / 1620 x 1011 x 179 mm
  • WEIGHT
    Net (lb / kg): 63.27 lb / 28.7 kg
    Gross (lb / kg): 70.70 lb / 35.7 kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • ENERGY STAR VERSION
    8.0
  • EEI RATING
    D
  • PACKAGE CONTENTS
    1. Power Cord x1 3 meters,

    by shipping area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Touch cable x1 3 meters

    3. Touch pen (Passive pen) x2

    4. Quick Start Guide (With Compliance statement )

    5. Screw x4 (for wall mount)

    6. HDMI cable x1 3 meters,

    (HDMI LA certified)

    7. Remote controller x1

    8. AAA battery x2

    9. Warranty card (only for VSCN)
  • COMPATIBLE SLOT-IN PC
    VPCF5-W33-G1 / VPC37-W53-G1 / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
