Ключевые особенности

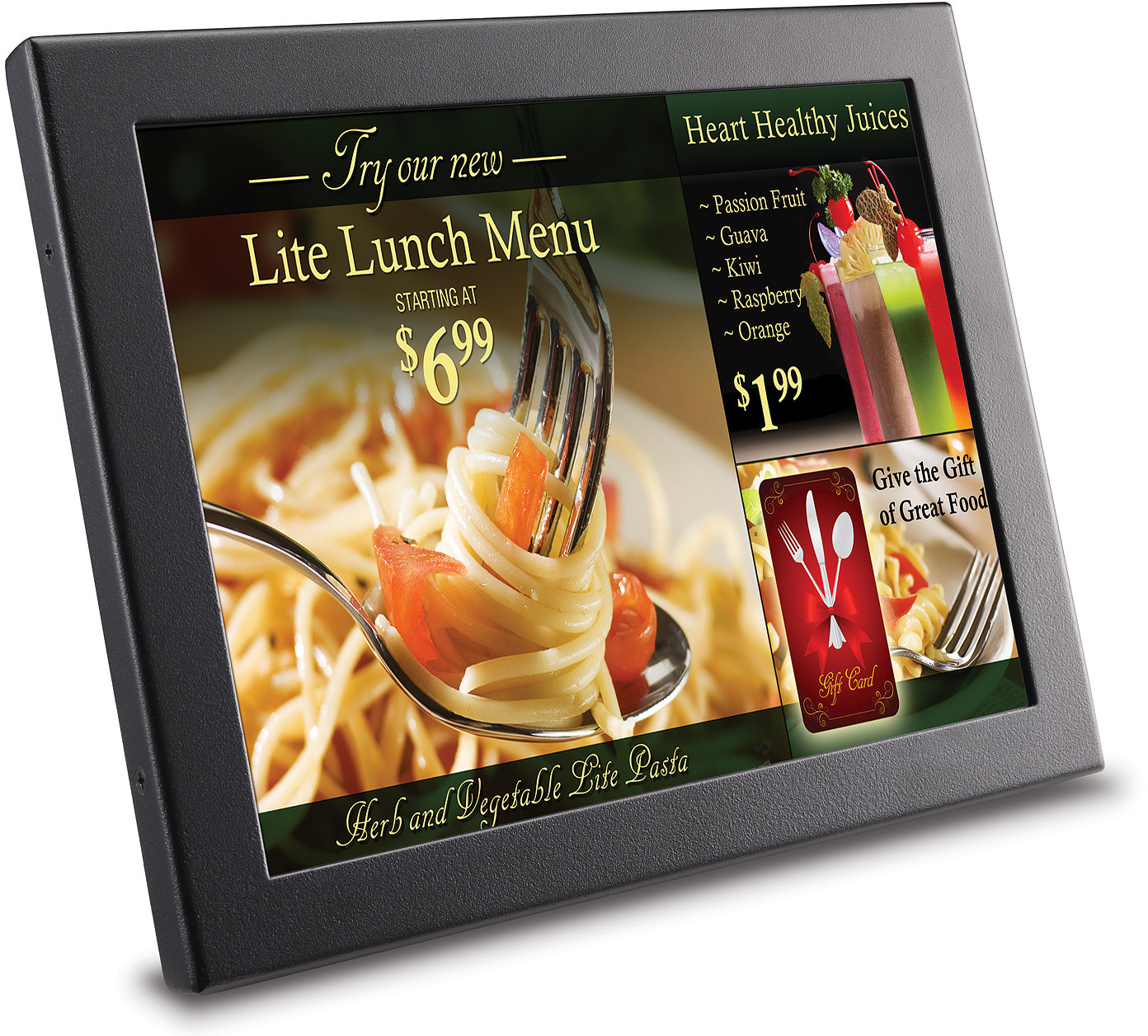

EP1020r
Описание продукта
ViewSonic’s EP1020r wireless display is just right for POS messaging or meeting room schedules. It features a built-in media player with internal storage capable of playing of JPEG images and video content with audio. Vivid retail messagingis easily configured via a play list, using the included Signage Manager Express Software and uploaded into the EP1020r display over a corporate network or manually using a USB thumb drive. Great for advertising in high visibility locations, informational signs for hotel lobbies and public locations, even for advertising boards in banks and on university campuses. The EP1020r is also SMIL compatible making the perfect companion for ViewSonic’s new ScheduleIT software for automated meeting room scheduling.
Посетите нас
  • www.viewsonic.com
  • COLORS
    Black
  • СОВМЕСТИМОСТЬ
    Фото форматы: JPEG baseline 5120x3840, progressive 2048x1536
    Audio Formats: LPCM, sampling rate: 32–48KHZ/16–24 bit, MPEG1 Layer 3, sampling rate: 32–48KHZ, bit rate: 32–320Kbps
  • РАЗМЕРЫ
    Физические (ШхВхГ): 9.9" x 7.8" x 1.7" (251mm x 198mm x 43mm)
  • ИНСТРУКЦИЯ
    FCC, ICES 003, CE
  • СОДЕРЖИМОЕ УПАКОВКИ
    ePoster, AC adapter, stand, antenna, Quick Start Guide and Software on CD
  • АУДИО
    Динамики: 3W (x2)
  • СОЕДИНЕНИЕ
    USB: 1.1 (x1)
    Ethernet: RJ45 (10/100M)
    WIFI: WiFi 802.11g/b

    WiFi Security: WPA/WPA2, TKIP/AES
  • Питание
    Потребление: Max 24W
    Save Mode (W): Off < 1W
    Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
  • УСЛОВИЯ ЭКСПЛУАТАЦИИ
    Влажность: 5–85% (non-condensing)
    Температура: 32–122º F (0–40º C)
  • ДИСПЛЕЙ
    КОНТРАСТНОСТЬ: 400:1 (typ)
    Display size: 10.4" (4:3) TFT LCD
    Ресурс лампы (норм/эко-режим): 250 cd/m2 (typ)
    Разрешение: 800x600 dots
    Color Depth: Over 16.7M color (depending on video card used)
    Время отклика: 8ms (typ gray-to-gray)
    Углы обзора: Up and down 178º, left and right 178º (typ) @ CR>10
    Внутренняя память: 2GB Compact Flash
  • Крепление
    75mm x 75mm
  • Вес
    Гросс: 5.3 lbs. (2.4 kg)
    Нетто: 4.0 lbs. (1.8 kg)
  • CONTENT MANAGEMENT
    Операционная система: MS Windows
    ПО: Signage Manager Express
  • MTBF
    50,000 hrs.
