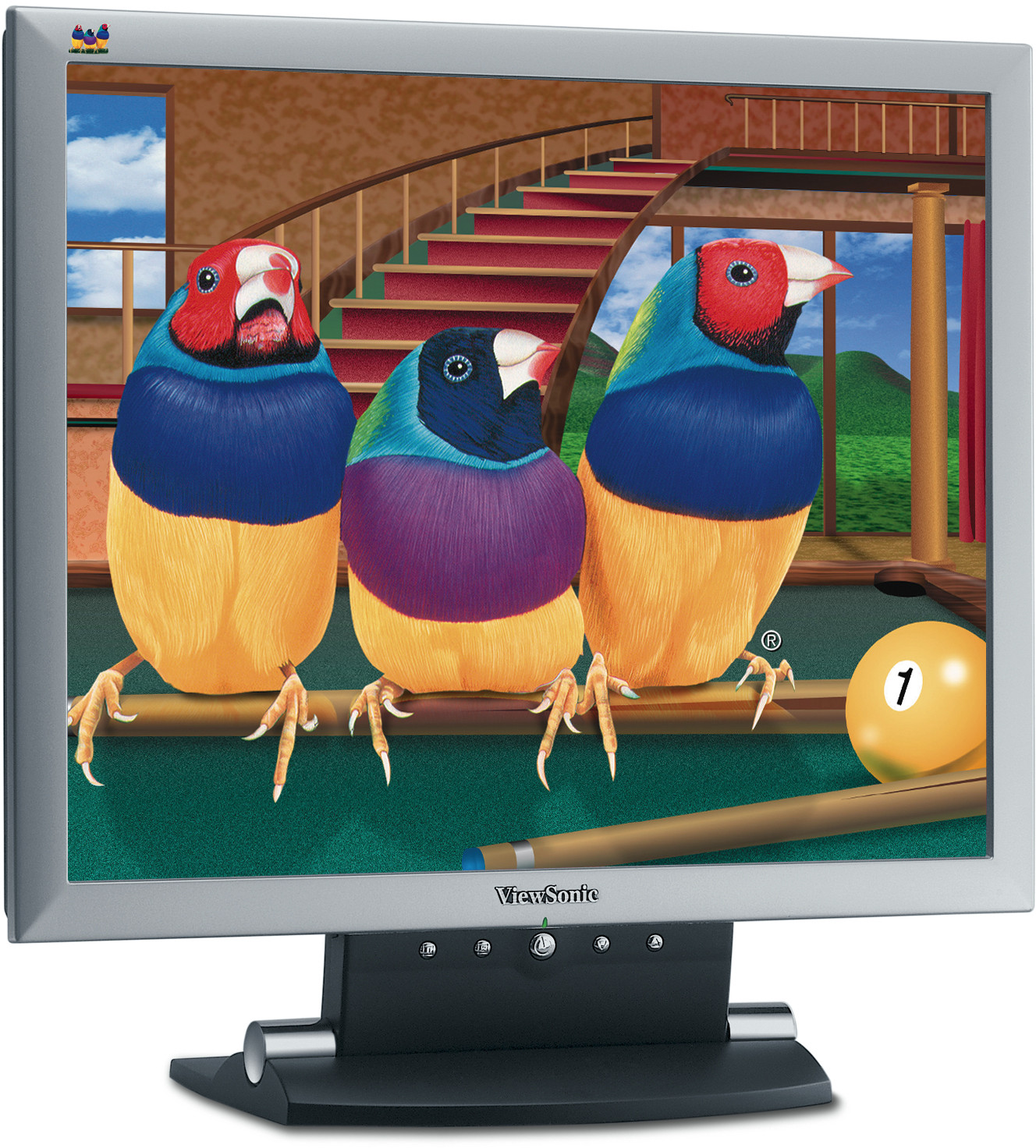

ViewSonic VA702 43 cm / 17" A series LCD Display

LCD

Tip:	43 cm / 17" Colour TFT Active Matrix SXGA LCD, TN Technology
Rată de contrast:	500:1 (typ.)
Unghiuri de vizualizare:	140° horizontal, 130° vertical @10:1 160° horizontal, 155° vertical @ 5:1
Luminozitate:	300 cd/m² (typ.)
Display Area:	33.8cm horizontal x 27.0cm vertical, 43.2cm diagonal
Optimum Resolution:	1280 x 1024
Timp de răspuns:	8ms (typ.)
Panel Surface:	Anti-glare 3H
Pixel Pitch:	0.264mm
Colour Support:	16.2M colours (6-bit + 2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 @ 75Hz (non interlaced)

Mac®: Power Mac™ up to 1152 x 870 @ 75Hz
DIMENSIONS

Dimensiuni (DxÎxA): 378 x 374 x 196 (W x H x D in mm)
CONȚINUT PACHET

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
CONNECTOR

Signal: 15-pin mini D-Sub (detachable cable)

Putere: 3-pin AC plug (CEE22)
POWER

Voltaj: AC 100-240V, 50-60Hz (auto-switch), internal power supply

Consum: <35W (typ.), <1W in suspend mode

CONTROLS

OSD:

Auto Image Adjust, Contrast, Brightness, Colour Adjust [sRGB,
9300K, 6500K (default), 5400K, User (R, G, B)], Information
[Mode, Model Number, Serial Number, Website], Manual Image
Adjust [H. Size, H./V. Position, Fine Tune, Sharpness, Scaling],
Setup Menu [Language (English, French, German, Italian,
Spanish, Finnish, Japanese, Simplified and Traditional Chinese),
Resolution Notice, OSD Position, OSD Timeout, OSD
Background], Memory Recall

Physical:

Power on/off, menu, up, down, select

OPERATING CONDITIONS

Temperatură: 0–40°C

Umiditate: 10–90% (non-condensing)
WEIGHT

Masă: 4.5kg
VIDEO INPUT

Frequency: Fh: 30-82kHz, Fv: 50-85Hz

Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)

Sync: H/V separated (TTL)
POWER MANAGEMENT

Meets TCO, ENERGY STAR and ENERGY standards.
ERGONOMICS

Down 5°, Up 20°

PC:	VGA up to 1280 x 1024 @ 75Hz (non interlaced)
Mac®:	Power Mac™ up to 1152 x 870 @ 75Hz

Signal:	15-pin mini D-Sub (detachable cable)
Putere:	3-pin AC plug (CEE22)

Voltaj:	AC 100-240V, 50-60Hz (auto-switch), internal power supply
Consum:	<35W (typ.), <1W in suspend mode

Frequency:	Fh: 30-82kHz, Fv: 50-85Hz
Analogue:	RGB Analogue (75 ohms, 0.7 Vp-p)
Sync:	H/V separated (TTL)

Temperatură:	0–40°C
Umiditate:	10–90% (non-condensing)
