ViewSonic SD-Z225 Perfect Solution for a Seamless Desktop Experience

Funcții esențiale

Descrierea produsului

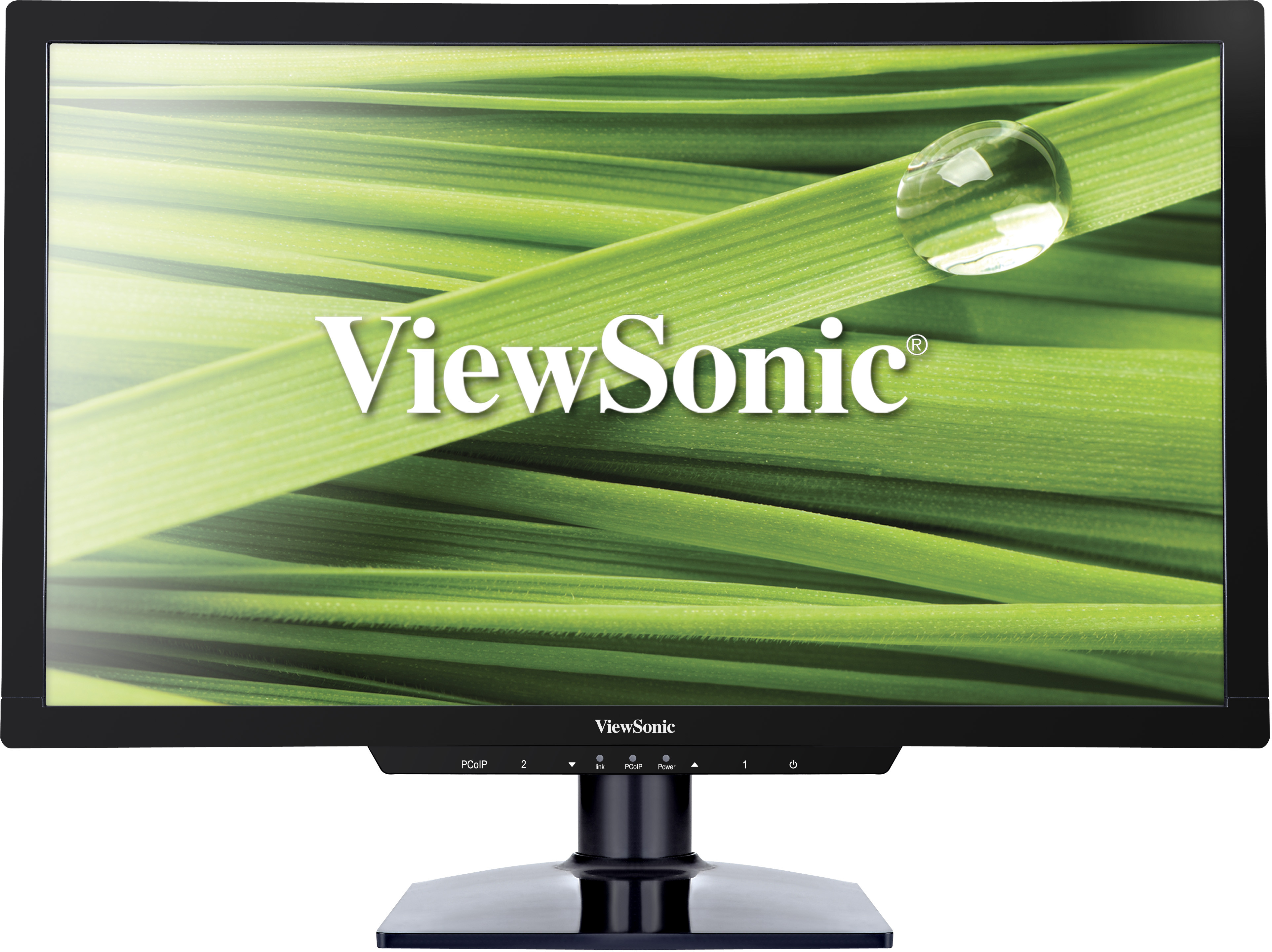

The ViewSonic® SD-Z225 22" (21.5" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z225 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z225 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware-certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.

Vizitează Noi

www.viewsonic.com

LCD

Tip:	22" (21.5" viewable) Wide Colour TFT Active Matrix LED
Effective Viewing Area:	170º horizontal, 160º vertical
Rată de contrast:	1000:1 (typ.)
Display Area:	19.0" horizontal x 10.7" vertical; 21.5" diagonal
Optimum Resolution:	1920 x 1080
Timp de răspuns:	5ms (typ.)
Panel Surface:	Anti-glare, hard-coating (3H)
Luminozitate:	250 cd/m2 (typ.)
Rată de contrast dinamic:	20,000,000:1
Backlight:	White-light LED
Durată de viață sursă de lumină fundal:	30,000 hours (min.)

COMPATIBILITY

PC: PC compatibles (VGA up to 1920x1080 non-interlaced)

Mac®: Up to 1920x1080

DIMENSIONS

Physical With Stand:	22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
Physical Without Stand:	22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
Packaging:	24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm

CONNECTOR

Putere:	External power adapter
Intrare video:	15-pin mini D-sub (VGA)
Video Output:	DVI-I (x1)
USB:	USB 2.0 (x4)
Headphone:	3.5mm mini jack (x1)
LAN:	RJ45 (x1)
Audio line in:	3.5mm mini jack (x1)
Intrare microfon:	3.5mm mini jack (x1)

POWER

Voltaj: AC 100-240 V (universal), 50/60 Hz

Consum: 28W (typ)

CONTROLS

Basic:	PCoIP, 2, Down, Up, 1, Power
OSD:	Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)

OPERATING CONDITIONS

Temperatură: 32–95ºF (0–35ºC)

Umiditate: 15–90% (non-condensing)
WEIGHT

Net With Stand: 11.2 lb. / 5.1 kg

Net Without Stand: 8.6 lb. / 3.9 kg
MEMORY

System: DDR3 512MB @ 1066MHz

Stocare: None
VIDEO INPUT

Analog/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Frequency: Fh: 24~82kHz, Fv: 50~75Hz

Sync: Separate Sync
ERGONOMICS

Înclinare: Forward 5º / Back 20º
CORE

Procesor: Teradici Tera2321

Image Performance: 50Mpps (DVI out)
GRAPHICS

Chipset: None

Rezoluție: 1920 x 1200 (for single display)
COMMUNICATION

Ethernet LAN: 10/100/1000 MB
SOFTWARE

Protocols: VMware PCoIP
AUDIO

Speakers: 2-watt (x2)

PC:	PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac®:	Up to 1920x1080

Temperatură:	32–95ºF (0–35ºC)
Umiditate:	15–90% (non-condensing)

Net With Stand:	11.2 lb. / 5.1 kg
Net Without Stand:	8.6 lb. / 3.9 kg

Analog/Digital:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frequency:	Fh: 24~82kHz, Fv: 50~75Hz
Sync:	Separate Sync

Procesor:	Teradici Tera2321
Image Performance:	50Mpps (DVI out)

Voltaj:	AC 100-240 V (universal), 50/60 Hz
Consum:	28W (typ)

System:	DDR3 512MB @ 1066MHz
Stocare:	None

Chipset:	None
Rezoluție:	1920 x 1200 (for single display)
