Funcții esențiale
  • Full HD 1080p resolution
  • 4-in-1 power button
  • Vertical lens shift with centered lens
  • PortAll® compartment for wireless dongle
  • LAN control support-Crestron, AMX and PJ Link

Descrierea produsului

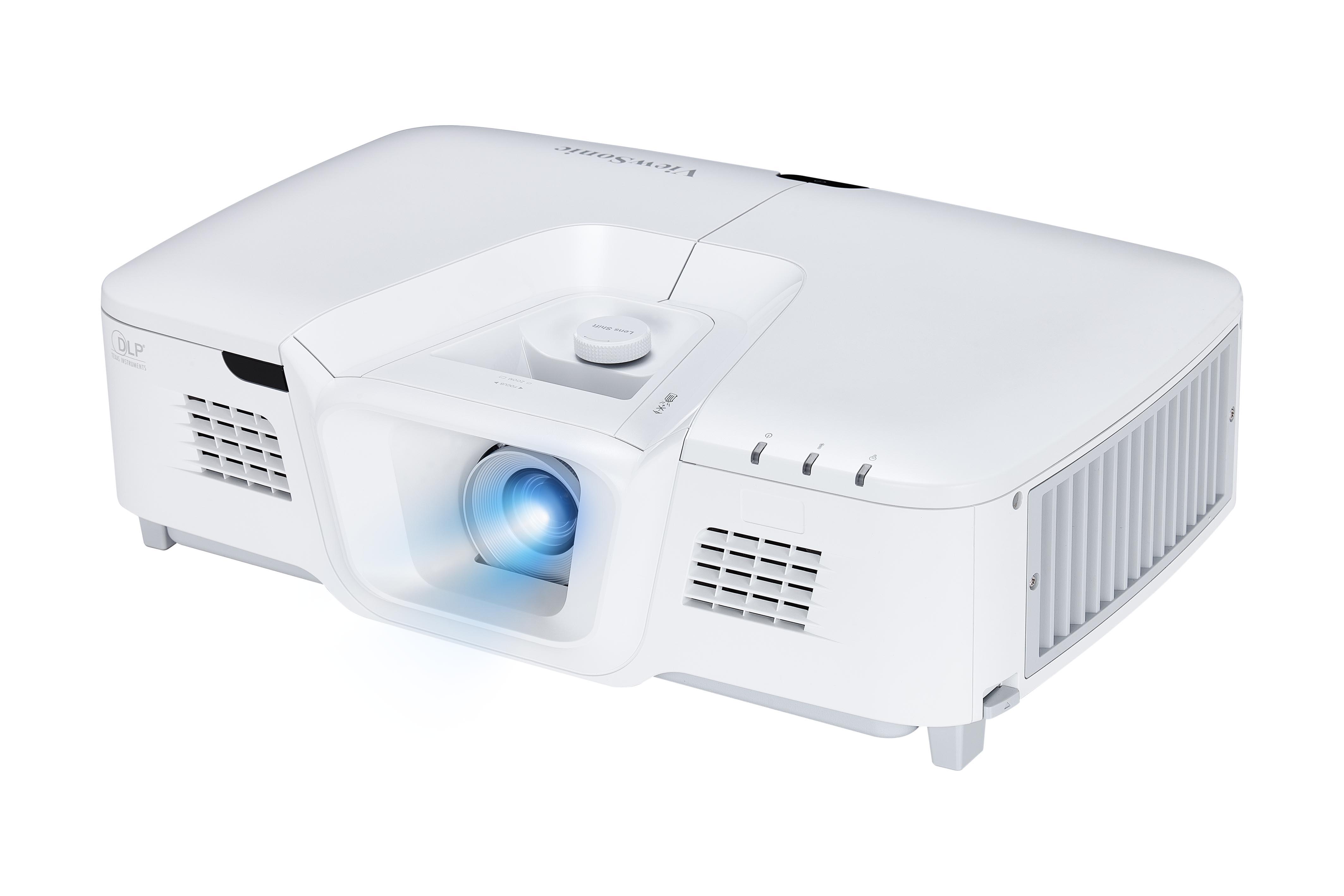

Delivering 5000 ANSI Lumens of brightness in 1080p resolution, the ViewSonic PG800HD is the perfect installation projector for large, brightly lit environments such as conference rooms, classrooms, or any other large public venue. Utilizing an intuitive design, PG800HD is highly flexibility and easy to install. It comes equipped with centered lens and vertical lens shift, which offer extra flexibility that makes the projectors more adaptable to difficult installation locations. The concealed PortAll® compartment can accommodate optional HDBT or wireless dongles for versatile content projection. PG800HD is certified by Creston, AMX, PJ Link and Extron, meaning that it can be controlled remotely via LAN connection for efficient projector management. Other notable features include SuperColor™ technology for true-to-life image color, SonicExpert, and SonicMode for incredibly clear sound which allows PG800HD to deliver a professional audio-visual experience.

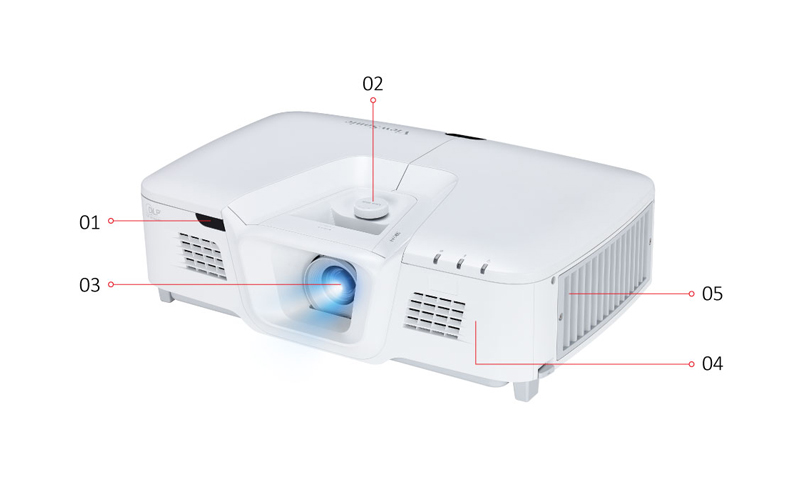

  1. Front IR receiver
  2. Lens shift adjustment
  3. 1.3X optical zoom
  4. 10W x2 cube
  5. Air filter

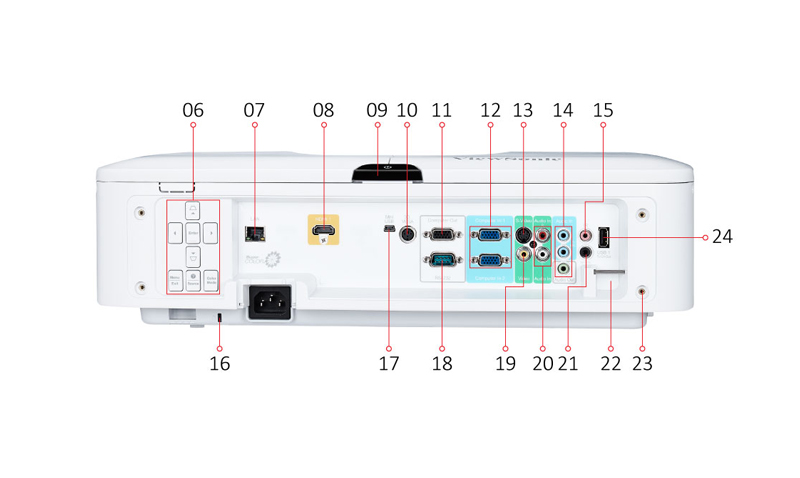

  6. Keypad
  7. LAN
  8. HDMI
  9. 4-in-1 power button
  10. 3D VESA
  11. Monitor out
  12. Computer in
  13. S-Video
  14. Audio in/out
  15. IR out
  16. Kensington lock
  17. Mini USB for service
  18. RS232
  19. Video
  20. Audio in L/R (RCA)
  21. 12V out
  22. Security bar
  23. Cable managenment screw hole
  24. USB type A (5V/2A)
Vizitează Noi
    Rezoluție Nativă: 1920 x 1080P
    DC type: DC3
    Luminozitate: 5000 ANSI Lumens
    Contrast Ratio with SuperEco mode: 5000:1 (with Eco mode)
    Culori Display: 1.07 Billion Colours
    Sursă de lumină: Lamp
    Light source life (Nor/SuperEco): 2000/2500 (Nor/Eco)
    Putere lampă (W): 370W
    Lentile: F=2.59-2.87, f=16.88-21.88mm
    Decalaj de proiecție: 116%+/-5%
    Raportul de proiectare: 1.15-1.5
    Image size: 30" - 300"
    Distanță de proiectare: 0.76m-9.96m(100" @2.55m)
    Intrare Keystone: ±40° (Vertical)
    Lentile Shift V. Range: Yes (+7%, -0%)
    Zoom optic: 1.3x
    Audible Noise (Eco): 33dB
    Suport rezoluție: VGA(640 x 480) to WUXGA_RB(1920 x 1200)

    *RB-Reduced Blanking
    Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Compatibilitate Video: NTSC, PAL, SECAM
    Frecvență orizontală: 15K~102KHz
    Rată verticală de scanare: 23~120Hz
    Computer in (D-SUB 15 pin): 2
    Compozit: 1
    S-video: 1
    Intrare audio (3.5mm): 2
    Intrare audio (RCS R/L): 1
    Intrare microfon: 1 (shared with Audio-in 2)
    HDMI: 2 (Back & PortALL)
    3D VESA (Sync): 1
  • IEșIRE
    Monitor out (D-SUB 15 pin): 1
    Ieșire audio (3.5mm): 1
    Difuzor: 10W Cube x 2
    USB type A (Power): 1 (5V2A)
    USB type Micro B (Power): 1 (5V2A Front)
    12V Trigger: 1 (3.5mm)
    Ieșire Infraroșu: 1
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
    Wired Remote Control - Ieșire: 1 (Share to top IR)
    Voltaj sursă: 100-240V+/- 10%, 50/60Hz AC
    Consum de putere: Normal: 574W

    Standby: <0.5W
    Temperatură de funcționare: 0~40℃
    Carton: Brown
    Greutate netă: 6.2kg
    Dimensions (WxDxH) w/adjustment foot: 470x316x140mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
    Cablu alimentare: 1
    VGA cable: 1
    Telecomandă: 1 (w/Laser pointer)
    QSG & CD: QSG: 1 / CD: NA
    Filtru de aer: 1 (CN only)
