Proiector
LSD401HD
Funcții esențiale
- 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
- 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
- High native contrast ratio powered by a 0.65” DMD chip and DLP technology
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
- Centralized LAN control for efficient management
Descrierea produsului

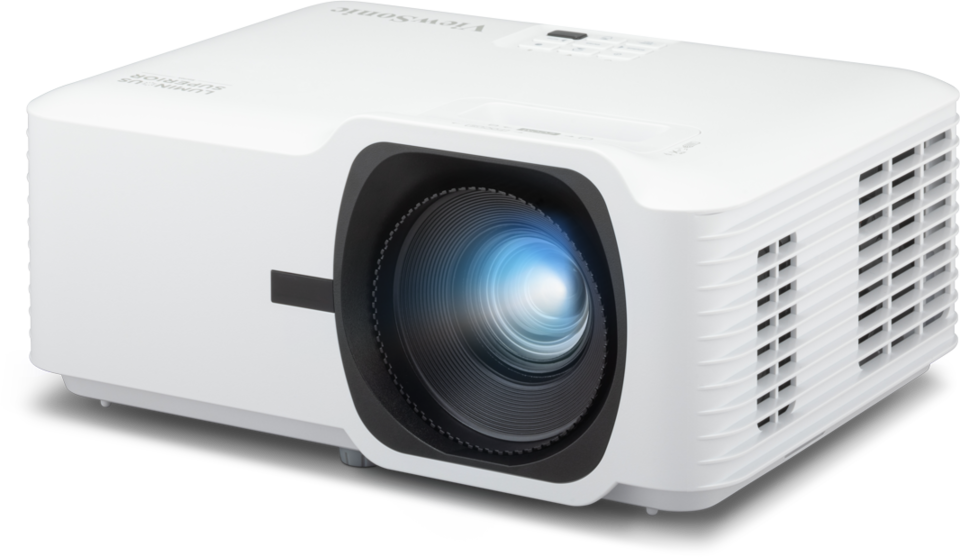

The LS401HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS401HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

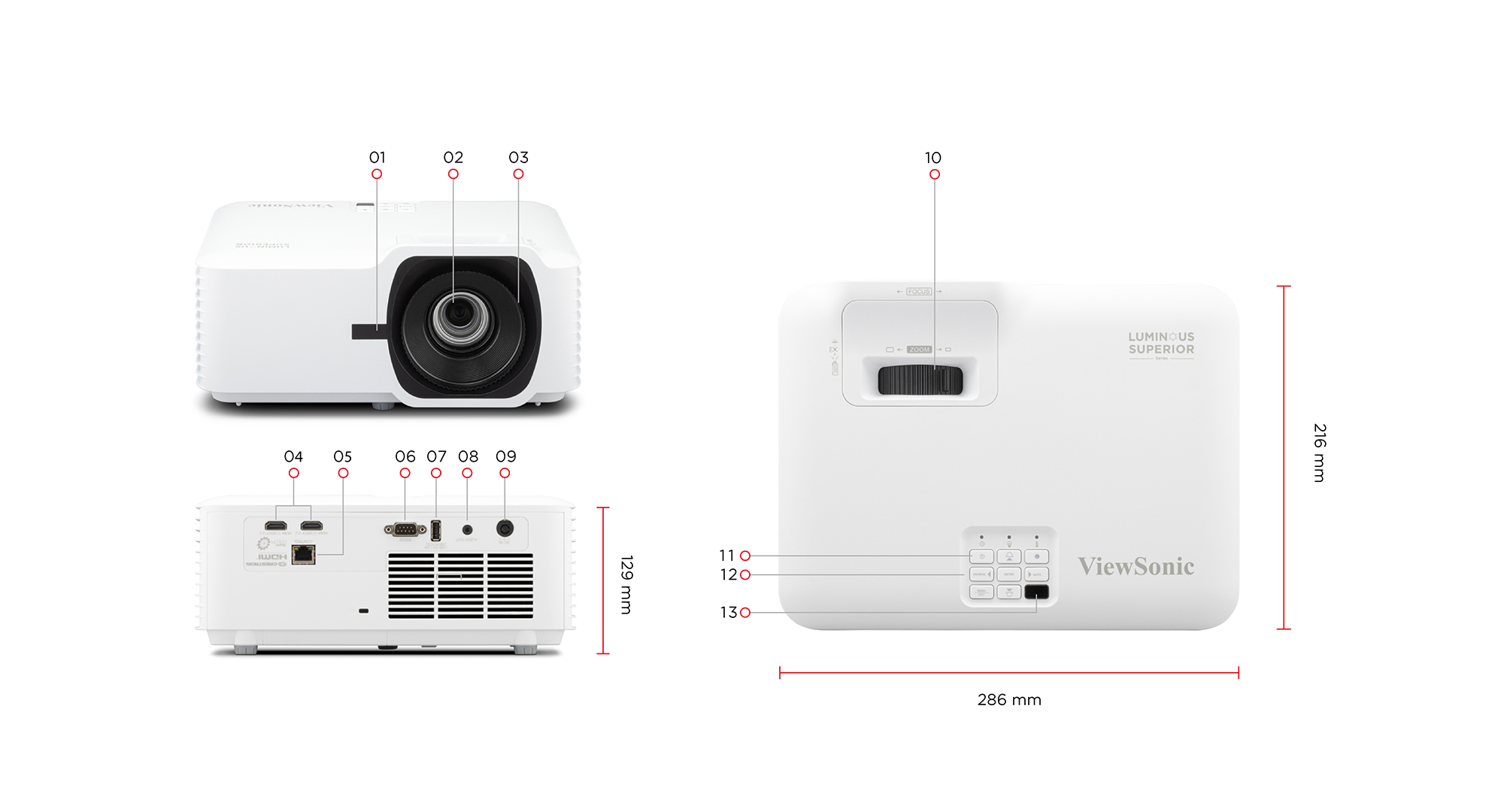

- Front IR
- Lens
- Focus Ring
- HDMI 2.0 / HDCP 2.2 x2
- RJ45
- RS232
- USB-A (5V/1.5A, Service)
- Audio Out
- DC In
- Zoom Ring
- Power Button
- Keypad
- Top IR
Vizitează Noi
- www.viewsonic.com
-
SPECIFICAțIE
Sistem de proiecție: 0.65" 1080P Rezoluție Nativă: 1920x1080 Luminozitate: 4000 (ANSI Lumens) Brightness (Center Lumens): 4400 Rată de contrast: 3000000:1 Display Color: 1.07 Billion Colors Tip sursă de lumină: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Lentile: F=2.43-2.78, f=16.90-21.61mm Decalaj de proiecție: 132%+/-10% Raportul de proiectare: 1.13-1.47 Zoom optic: 1.3X Zoom Digital: 0.8x-2.0x Dimensiune Imagine: 30"-300" Distanță de proiectare: 0.75-9.76m
(100"@2.50m)Intrare Keystone: H:+/-30° , V:+/-30° Zgomot perceptibil (funcție Normal): 32dB Audible Noise (Eco): 27dB Input Lag: 16.7ms Suport rezoluție: VGA(640 x 480) to 4K UHD(3840 x 2160) Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Frecvență orizontală: 15K-135KHz Rată verticală de scanare: 24-120Hz -
INPUT
HDMI: 2
(HDMI 2.0, HDCP 2.2) -
IEșIRE
Audio-out (3.5mm): 1 Difuzor: 15W USB Tip A (Alimentare): 1 (5V/ 1.5A) -
CONTROL
RS232 (DB-pin-tată): 1 RJ45 (LAN control): 1 USB Type A (Services): 1
(share with USB A Output) -
ALTELE
Voltaj sursă: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 9.23AConsum de putere: Normal: 143W
Standby: <0.5WTemperatură de funcționare: 0~40℃ Carton: Brown Greutate netă: 3.00kg Gross Weight: 4.50kg Dimensiuni (WxDxH) cu Adjustment Foot: 286x216x129mm Packing Dimensions: 400x280x155mm Limbă meniu display: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Cablu alimentare: 1 Telecomandă: 1 QSG: Yes Warranty Card: Yes (CN Only) -
ACCESORIU OPțIONAL
Wall/Ceiling Mount: PJ-WMK-007 Geantă de transport: PJ-CASE-008
