Proiector
LSC520WU
Funcții esențiale
- 5,200 ANSI Lumens offering bright images in any environment
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
- Installation flexibility: V lens shift, 1.6x optical zoom, and H/V keystone correction
- 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
- Centralized LAN control for efficient management
Descrierea produsului

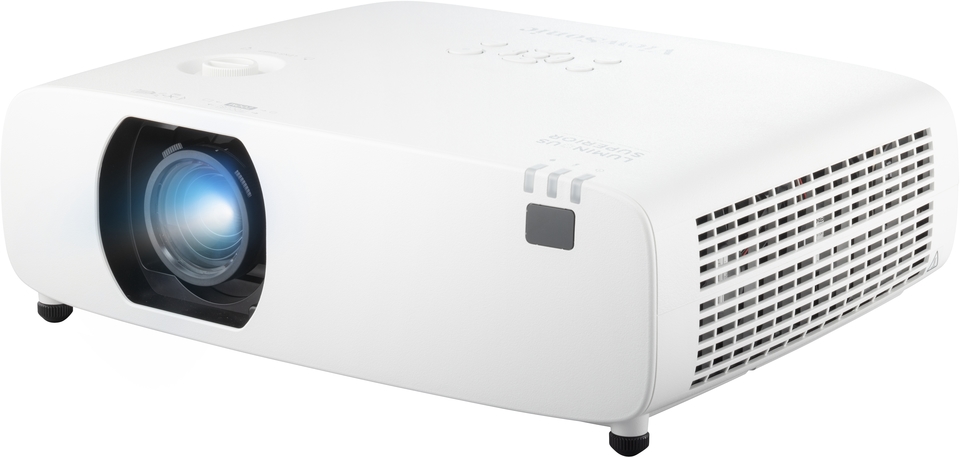

The LSC520WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 3rd generation laser phosphor technology, this projector delivers 5,200 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC520WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

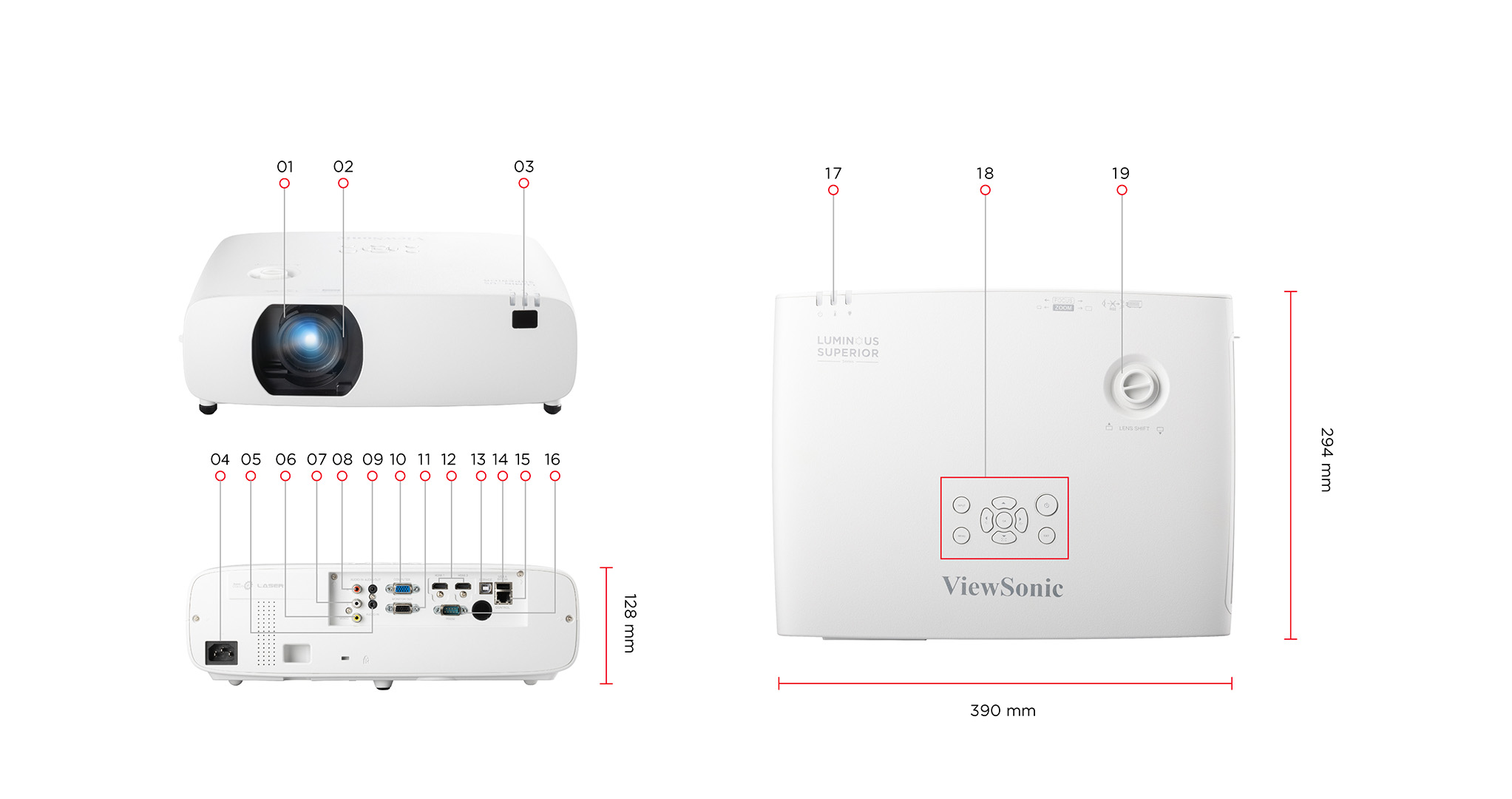

- Zoom Ring
- Focus Ring
- Front IR
- AC In
- Audio In
- Video
- Audio In (L)
- Audio In (R)
- Audio Out
- Computer
- Monitor Out
- HDMI x2
- Service
- USB-A (5V/1.5A)
- RJ45
- RS232
- LED Indicator
- Keypad
- Lens Shift Control Knob
Vizitează Noi
- www.viewsonic.com
-
SPECIFICAțIE
Sistem de proiecție: 3LCD (3x0.64" with MLA) Rezoluție Nativă: 1920x1200 Luminozitate: 5200 (ANSI Lumens) Brightness (Center Lumens): 6000 Rată de contrast: 3000000:1 Display Color: 1.07 Billion Colors Tip sursă de lumină: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Lentile: F=1.58-2.02, f=15.3-24.6mm Decalaj de proiecție: 0%+/-5% Raportul de proiectare: 1.08-1.76 Zoom optic: 1.6X Zoom Digital: 1.0x-4.0x Dimensiune Imagine: 30"-300" Distanță de proiectare: 0.70-11.37m
(100"@2.33m)Intrare Keystone: H:+/-30° , V:+/-30° Lentile Shift V. Range: +45%, 0% Zgomot perceptibil (funcție Normal): 35dB Audible Noise (Eco): 26dB Input Lag: 60ms Suport rezoluție: VGA(640 x 480) to 4K(3840 x 2160@30Hz) Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@30Hz Frecvență orizontală: 15K-100KHz Rată verticală de scanare: 23-85Hz -
INPUT
Intrare computer (partajare componentă): 1 Compozit: 1 HDMI: 2
(HDMI 1.4/ HDCP 1.4)Intrare audio (3.5mm): 1 Intrare audio (RCS R/L): 1 USB Tip A: 1 (5V/1.5A) -
IEșIRE
Ieșire monitor: 1 Audio-out (3.5mm): 1 Difuzor: 16W USB Tip A (Alimentare): 1
(USB2.0 - 5V/1.5A,
share with USB A Input) -
CONTROL
RS232 (DB-pin-tată): 1 RJ45 (LAN control): 1 USB Tip B (Service): 1 -
ALTELE
Voltaj sursă: 100-240V+/- 10%, 50/60Hz
(AC in)Consum de putere: Normal: 230W
Standby: <0.5WTemperatură de funcționare: 0~40℃ Carton: Brown Greutate netă: 5.2kg Gross Weight: 7.23kg Dimensiuni (WxDxH) cu Adjustment Foot: 390x294x128mm Packing Dimensions: 492x443x239mm Limbă meniu display: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian,Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Cablu alimentare: 1 Telecomandă: 1 QSG: Yes Filtru de aer: Yes Warranty Card: Yes (CN Only) -
ACCESORIU OPțIONAL
Filtru de aer: Yes Wall/Ceiling Mount: PJ-WMK-007
