Funcții esențiale
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • 64-point touch with palm rejection and Write Away offer precise, instant annotation.
  • Integrated ViewSonic Education Software empowers seamless classroom experiences.
  • Built-in 2.1-channel speakers with subwoofer and 8-microphone array deliver rich audio.
  • Light and motion sensors optimize brightness, improving energy efficiency and panel lifespan.

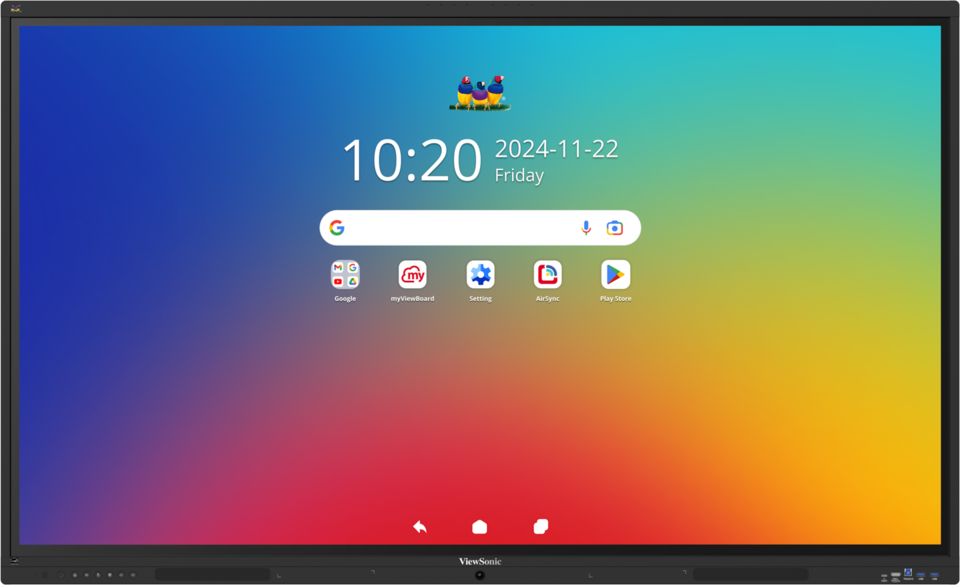

ViewBoard IFP6541-1-1C
Descrierea produsului
Bring powerful performance and effortless interactivity to any classroom with the ViewBoard® IFP41-1 Series, available in 55", 65", 75", 86", and 98" models. Built-in ambient light and PIR motion sensors allow for automatic screen brightness adjustment to support sustainability, while 64-point touch technology and instant annotation with Write Away offer smooth, responsive collaboration. Dual USB-C ports provide seamless connectivity with up to 100W power delivery, enabling convenient single-cable charging and data transfer. As an EDLA-certified interactive display with Android 16, it ensures regular security updates and reliable access to the latest Google Play Store apps. Integration with ViewSonic Education Software enhances functionality with whiteboarding, wireless casting, and device management solutions, creating a smart, secure, and connected teaching experience.

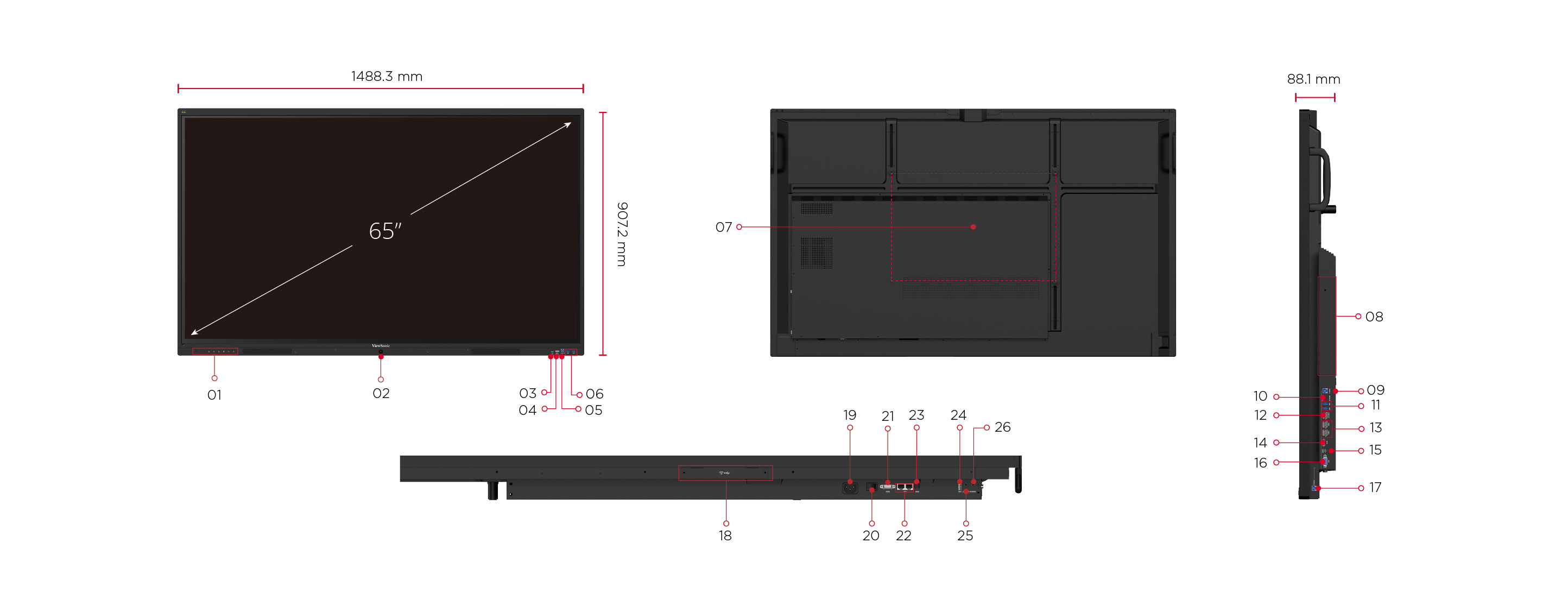

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI
  5. Touch 3
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 600 x 400 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Touch 2
  18. WiFi Slot
  19. AC In
  20. Power Switch
  21. RS232
  22. LAN x 2
  23. SPDIF
  24. USB 2.0
  25. Audio Out
  26. Audio In
Vizitează Noi
  • www.viewsonic.com
  • DISPLAY
    Dimensiune Panel: 65"
    Tip Panel: TFT LCD Module with DLED Backlight
    Suprafață Display (mm): 1428.48mm(H) x 803.52mm(V)(64.5" diagonal)
    Aspect Ratio: 16:9
    Rezoluție: UHD 3840x2160
    Colors: 1.07B colors
    Luminozitate: 450 nits
    Rată de contrast: 5000:1 (max. with DCR enabled)
    Timp de răspuns: 6.5ms
    Unghiuri de vizualizare: H = 178°, V = 178° typ.
    Durată de viață sursă de lumină fundal: 50,000 hours
    Tratament pentru protecția suprafeței: Hardness:9H, Anti-glare coating
    Orientare: Landscape
  • PLATFORMă
    Procesor: Octa-Core CPU
    Memorie RAM: 8GB
    Stocare: 128GB
  • TOUCH
    Tipul/ Tehnologia: Ultra Fine Touch Techology (IR Recognition)
    Rezoluție Touch: 32767×32767
    Touch Point: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1:HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI 2.1 4K@60Hz with CEC, ARC)x1+(HDMI 2.1 4K@60Hz with CEC)x1]
    RGB/ VGA: x1
    Display Port: x1
    Audio: x1
    RS232: x1
    Card SD/SDHC: TF Card Slot(Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Audio: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    Tip A: x5 (Front x 2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
    Tip B: ×3 (Front ×1, Rear ×2 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2/3 with 2.0 data)
    Tip C: x2 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • DIFUZOARE
    20W x 2 Front soundbar + 15W x 1 subwoofer
  • MICROPHONE
    Built-in 8-array microphone
  • SISTEM DE OPERARE INCORPORAT
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Software Basic Annotation: myViewBoard for Android
    Software Pro Annotation: myViewBoard for Windows (embedded in VPC)
    Prezentare wireless: AirSync
    Device Management: Manager
    Launcher ViewSonic: Yes
  • CARACTERISTICI SPECIALE
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    Partajare simplă LAN între IFP și dispozitivul cu slot-in: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • PUTERE
    Voltaj: 100-240V AC +/- 10% Wide Range
    Consum: On: 69.56W (Typ.) Off:< 0.5 W
  • ERGONOMICS
    Montare pe perete (VESA® ): 600 x 400
  • OPERATING CONDITIONS
    Temperatură (º C): 0°C to 40°C
    Umiditate: 20% ~ 80% RH non-condensing
  • DIMENSIUNU (D X Î X A)
    Dimensiuni (inch/ mm): 58.59 x 35.72 x 3.47 in / 1488.3 x 907.2 x 88.1 mm
    Ambalare (inch/ mm): 63.78 x 39.8 x 7.05 in / 1620 x 1011 x 179 mm
  • WEIGHT
    Masă (Ib/ kg): 75.84lb / 34.4 kg
    Greutate (Ib/ kg): 93.47 lb / 42.4 kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • VERSIUNE ENERGY STAR
    8.0
  • RATING EEI
    D
  • CONȚINUT PACHET
    1. Power Cord x1 3 meters,

    by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Type-C cable x1 1.8 meters , USB-IF certified

    3. USB Touch cable x1 3 meters

    4. Touch pen (Passive pen) x 2

    5. Quick Start Guide (With Compliance statement )

    6. Screw x 4 ( wall mount 4)

    7. HDMI cable x1 3meters,

     (HDMI LA certified)

    8. Remote controller x1

    9. AAA battery x2
  • COMPATIBIL SLOT INTRARE PC
    VPCF5-S55-G1-2A /VPCF5-W55-G1-2A / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
