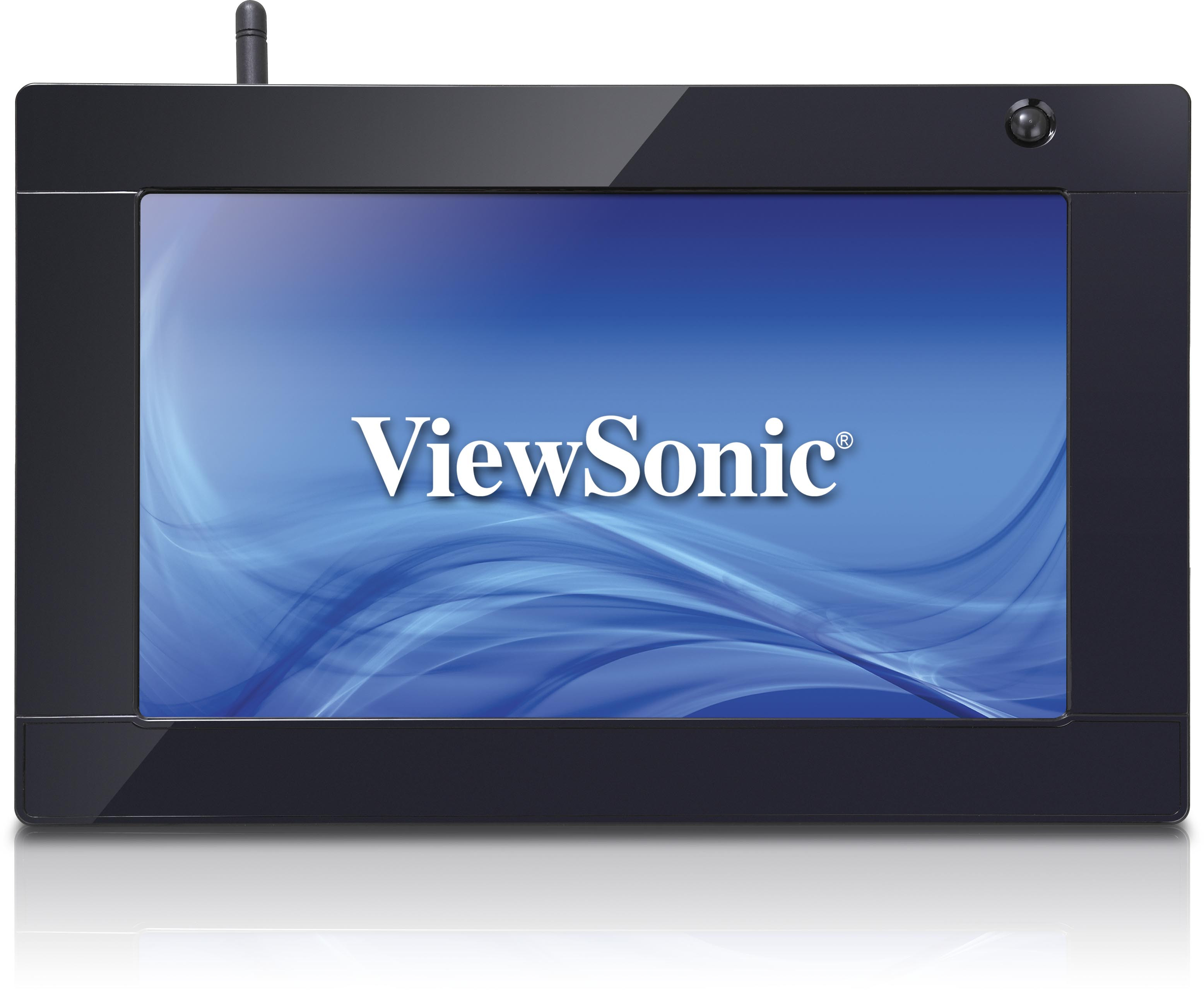

ViewSonic EP1031r 10.1’’ Multimedia Digital Poster

Funcții esențiale

Descrierea produsului

The ViewSonic EP1031r is a 10’’ wall-mounted multimedia all-in-one digital ePoster. It delivers eye-catching commercial messaging at retail POS, hotel lobbies and front desks, conference and exhibition venues, and other high-visibility locations. The EP1031r features wireless b/g/n network and LAN connectivity for easy loading of content, and supports Power over Ethernet (PoE) for convenient one-wire installation. Boasting an exclusive integrated motion sensor, 6 touch-screen control keys, and bundled Signage Manager Express software, the EP1031r effectively delivers customized messaging to target audiences. Its built-in media player, 4GB internal storage, and integrated speakers enable the playback of video clips, as well as photos and music, from a USB hard drive or SD/SDHC memory card. With VESA-mount compliance (75mm x 75mm), and W3C and SMIL compatibility, the EP1031r provides versatile options to display creative brand messaging.

Vizitează Noi

www.viewsonic.com

COLORS

Black

LCD

Tip:	TFT LCD Module with LED Backlight
Rată de contrast:	500:1
Unghiuri de vizualizare:	Top 45°/ Bottom 65°/ Left 65° / Right 65°
Display Area:	219.6(W) x 131.76(H)
Optimum Resolution:	800 x 480
Timp de răspuns:	30ms
Colour Support:	16.7M colors
Size:	10.1’’ viewable
Luminozitate:	300 cd/m2
Backlight:	LED

COMPATIBILITY

HDMI: 720p@50/60, 1080i@50/60, 1080p@50/60
DIMENSIONS

Dimensiuni (DxÎxA): 10.94 x 7.32 x 1.57 (inches)/ 278 x 186 x 40 (mm)

Packaging: 12.60 x 10.04 x 3.50 (inches)/ 320 x 255 x 89 (mm)

CONȚINUT PACHET

1. AC Adapter

2. Ethernet Cable

3. Standard 3.5mm to RCA AC cable

4. Display stand and screws

5. Hardware Quick Start Guide

6. Software Quick Start Guide

7. Documentation CD

*Actual content may differ from market to market

WARRANTY

1-year limited

**Warranty offered may differ from market to market
CONNECTOR

HDMI (input): x1

Audio: x1

LAN: x1

SD: x1 (for expand storage)

Difuzor: 2-watt x2
POWER

Voltaj: 100-240VAC +/- 10% Wide Range
CONTROLS

Physical: Touch button
OPERATING CONDITIONS

Temperatură: -4°F to 140°F (-20°C to 60°C)

Umiditate: 5% ~ 85% @ 40°C, non-condensing

Altitude: <2000M
VESA® MOUNT

75 x 75mm
WEIGHT

Greutate: 3.42 (lbs)/ 1.55 (kg)

Masă: 1.72 (lbs)/ 0.78 (kg)
INPUT

USB Tip A: x 2 (for content loading, F/W upgrade, Key board, Mouse)

USB Type B (mouse control): x 1 (for F/W troubleshooting)
STORAGE / SHIPPING CONDITION

Temperatură: -4°F to 140°F (-20°C to 60°C)

Umiditate: 5% ~ 85% non-condensing

Altitude: <2000M
POWER SAVING FUNCTION

On: Max. : 12W

Off (Suspend): <0.5 W

Dimensiuni (DxÎxA):	10.94 x 7.32 x 1.57 (inches)/ 278 x 186 x 40 (mm)
Packaging:	12.60 x 10.04 x 3.50 (inches)/ 320 x 255 x 89 (mm)

HDMI (input):	x1
Audio:	x1
LAN:	x1
SD:	x1 (for expand storage)
Difuzor:	2-watt x2

Temperatură:	-4°F to 140°F (-20°C to 60°C)
Umiditate:	5% ~ 85% @ 40°C, non-condensing
Altitude:	<2000M

USB Tip A:	x 2 (for content loading, F/W upgrade, Key board, Mouse)
USB Type B (mouse control):	x 1 (for F/W troubleshooting)

Greutate:	3.42 (lbs)/ 1.55 (kg)
Masă:	1.72 (lbs)/ 0.78 (kg)

On:	Max. : 12W
Off (Suspend):	<0.5 W
