ViewSonic E70f E70f - ViewSonic România

Funcții esențiale

Descrierea produsului

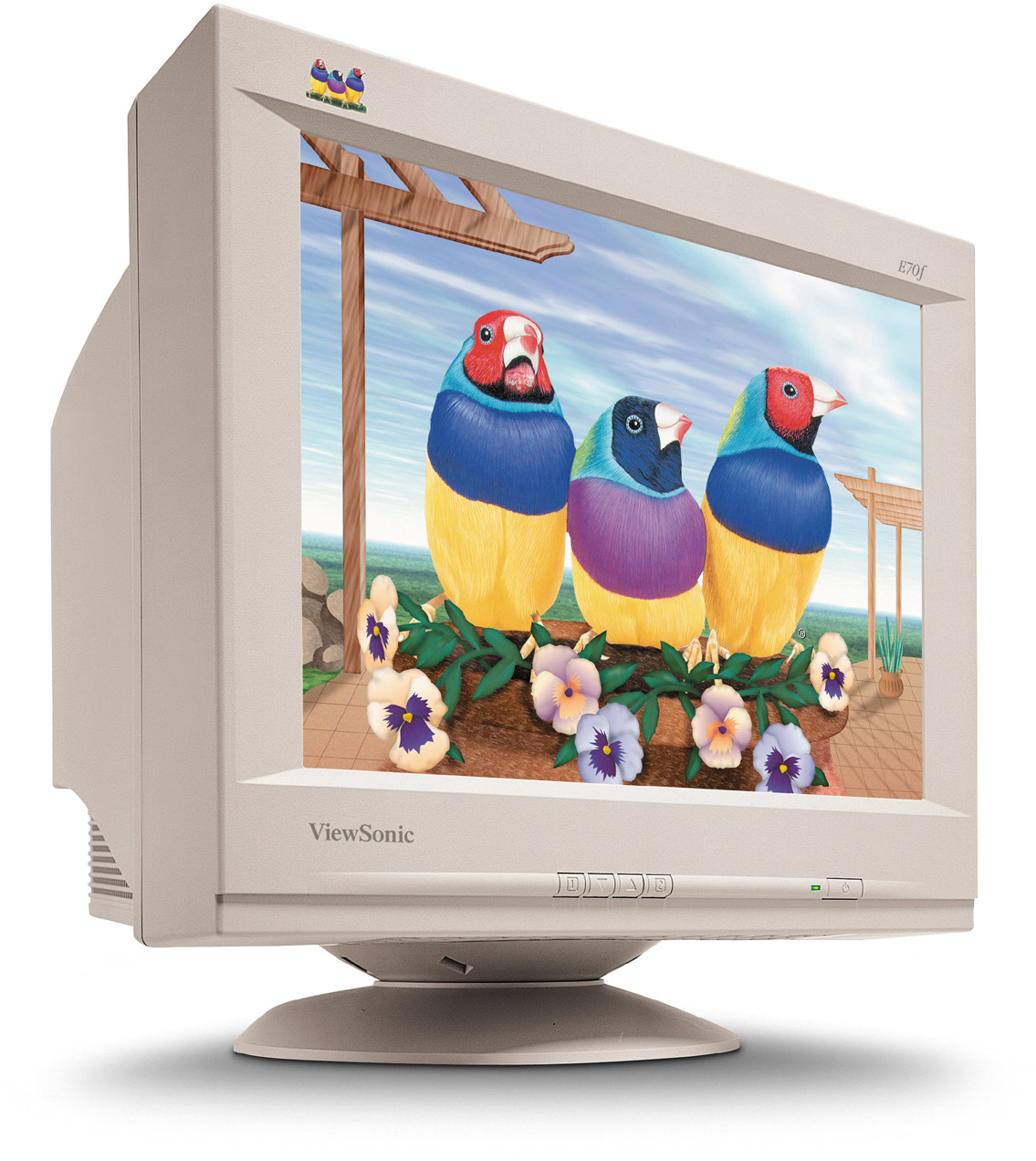

The new 17" (16.0" viewable) ViewSonic E70f monitor is an exceptional value forthose who demand the precise images and minimal glare provided by ourPerfectFlat screen technology. The E70f monitor offers a maximum resolution of1280 x 1024 and boasts a super fine 0.21mm horizontal (0.25mm diagonal) dotpitch for a superior, sharp focus. It is equipped with a new base design for anoptional ViewSonic USB hub. Offering a multitude of upgrades at an affordableprice, the ViewSonic E70f is the ideal PerfectFlat display for education, homeoffice, general business and Internet surfing.

Vizitează Noi

www.viewsonic.com

COMPATIBILITY

PC: IBM and PC compatible from VGA up to
1280 x 1024 (non-interlaced)

Mac®: Power Mac™ compatible (up to 1024 x 768)
DIMENSIONS

Dimensiuni (DxÎxA): 405mm (W) x 413mm (H) x 420mm (D)

15.9" (W) x 16.3" (H) x 16.5" (D)
WARRANTY

Three year limited warranty on CRT, parts and labour
INPUT SIGNAL

Frequency: Fh:30~70kHz, Fv:50~120Hz

Video: RGB Analogue (Impedance 75 ohms, 0.7Vp-p)

Sync: H/V separated (TTL)
CONNECTOR

Putere: 3-pin plug (IEC320)
POWER

Voltaj: AC 100-240V (auto switch) 50/60 Hz

Consum: 100W (typical)

CONTROLS

OSD:	Brightness, contrast, H/V size, H/V position, zoom, pincushion, pin balance, trapezoid, parallelogram, rotation, ViewMeter®, ViewMatch® colour, degauss, H/V moiré, language, recall
Physical:	Power ON/OFF, 1, DOWN, UP, 2

OPERATING CONDITIONS

Temperatură: 5°C to 60°C (40°F to 140°F)

Umiditate: 0% to 95% (non-condensing)
WEIGHT

Masă: 17Kgs (37.4lbs)
OTHER

DDC1 & DDC2B, VESA® GTF
VIDEO INPUT

Bandwidth: 110 MHz

CRT

Tip:	43cm / 17" (16.0" viewable) 90° deflection
Dot Pitch:	0.21mm Horizontal, 0.13mm Vertical, 0.25mm Diagonal
Phosphor:	RGB P22, medium/short persistence
Glass Surface:	TM=50.0%, Anti-static, anti-reflection

MISCONVERGENCE

0.25 mm (max) centre

0.35 mm (max) corner
DISPLAY AREA

Factory Setting: 310mm (H) x 230mm (V) (typical)

Maximum Scan: 320mm (H) x 240 mm (V) [Depending upon signal timing used]

PC:	IBM and PC compatible from VGA up to 1280 x 1024 (non-interlaced)
Mac®:	Power Mac™ compatible (up to 1024 x 768)

Frequency:	Fh:30~70kHz, Fv:50~120Hz
Video:	RGB Analogue (Impedance 75 ohms, 0.7Vp-p)
Sync:	H/V separated (TTL)

Voltaj:	AC 100-240V (auto switch) 50/60 Hz
Consum:	100W (typical)

Temperatură:	5°C to 60°C (40°F to 140°F)
Umiditate:	0% to 95% (non-condensing)

Factory Setting:	310mm (H) x 230mm (V) (typical)
Maximum Scan:	320mm (H) x 240 mm (V) [Depending upon signal timing used]
