Descrierea produsului

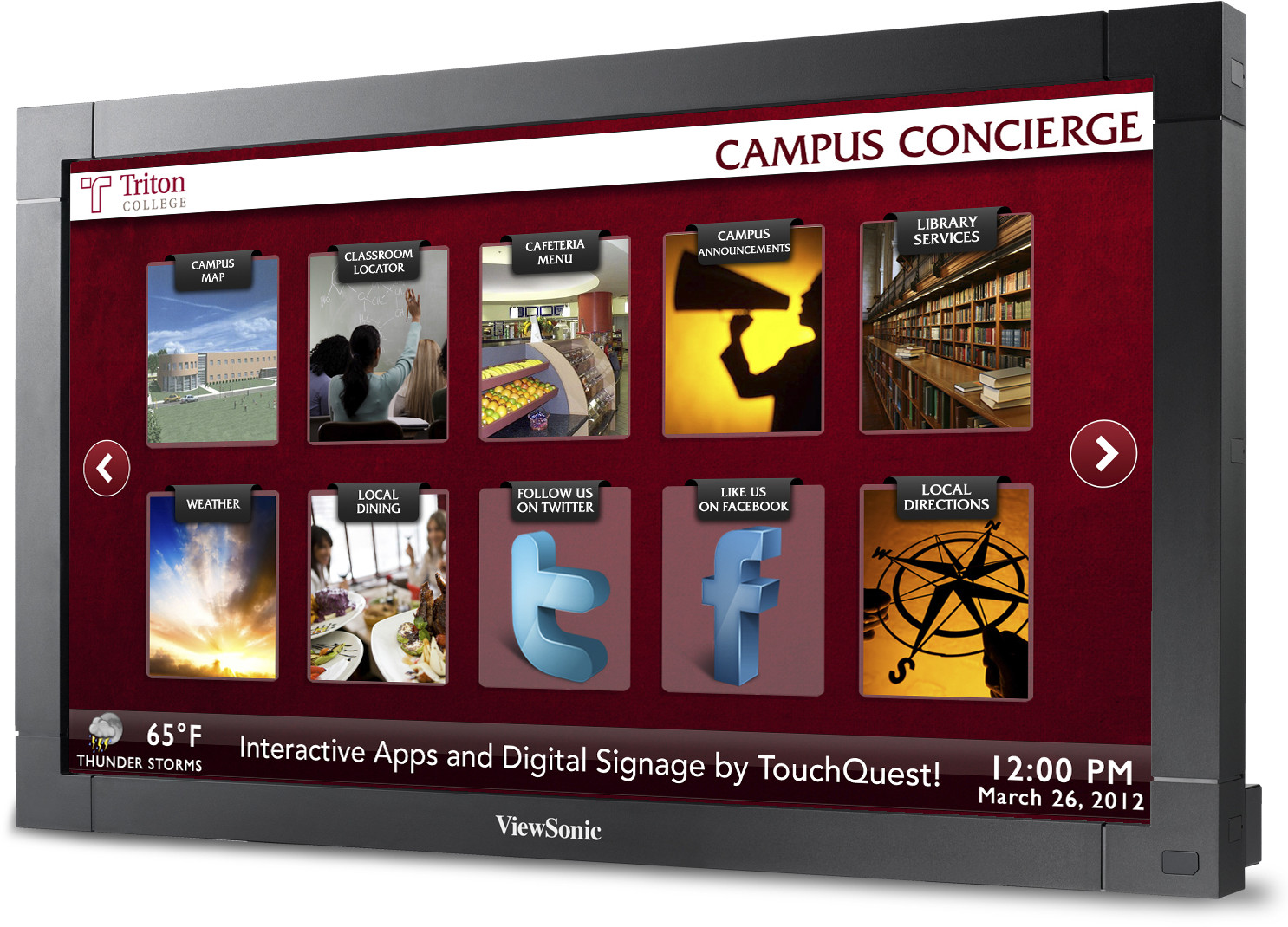

The ViewSonic® CDP4235-T Full HD Touch Commercial Display features a 1920 x 1080p panel with a 4000:1 contrast ratio and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S-Video and composite, YPbPr and built-in 10W x2 speakers. The CDP4235-T will support up to a 5x5 display video wall with internal clock and scheduler. RS-232 daisy chain capable and RJ-45 are provided for remote control.
Vizitează Noi
  • LCD
    Tip: 42" colour TFT active matrix, wide LCD
    Rată de contrast: 4000:1 (typ)
    Unghiuri de vizualizare: 178º horizontal, 178º vertical
    Luminozitate: 450 cd/m2(typ)
    Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal
    Optimum Resolution: 1920 x 1080, 435mm dot pitch
    Timp de răspuns: 8ms
    Sursă de lumină: Long life, 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
    Physical With Stand: 39" x 25.4" x 11.2" / 991.6 x 621 x 328.8mm
    Physical Without Stand: 39" x 25.5" x1.5" / 991.6 x 115.5 x 25.5mm
    Packaging: 44.8" x 29.3" x12" / 1139 x 743 x 305.2 mm
    LCD display, power cable, remote control with batteries, User Guide CD
    Intrare video: HDMI, DVI, component, VGA, S-Video, composite
    Video Output: VGA, component, DVI
    Control Input/Output: RS-232/RJ45
    TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
    Digital: HDMI, DVI
    Putere: 3-pin plug
    Analog: 9-pin mini D-sub (VGA)
    Voltaj: AC 100–240V (universal), 50–60Hz
    Consum: 210W (typ)
    Picture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness
    Front Panel: Power, Exit, +, –, Menu/Enter
    Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
    Audio: Volume, mute, audio source
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    Input: VGA, DVI, HDMI, YPbPr
    OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
    VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
    Touch: Type : Optical Imaging

    Capability : 4 simultaneous touches

    Support OS : Windows® 2000, XP, Vista®, Windows 7 (multi-touch requires driver), Max OS X, and Linux (requires evtouch)

    Touch Resolution : 32,767 x 32,767

    Accuracy : +/- 3.5 mm over 95% of touchable area

    Response Time : 9ms to 22ms depending on configuration; 14ms (typ)

    Touch Method : Touch with any object, Finger, Pen or Brush

    Connection : USB

    Glass : 5mm tempered glass
    VESA® 400mm x 200mm, 200mm x 200mm
    Greutate: 61.7 lb. / 28 kg
    Masă: 50.7 lb. / 23 kg
    Umiditate: 10–80% (non-condensing)
    Temperature (landscape): 32–104ºF (5–40ºC)
    Temperature (portrait): 32–95ºF (5–35ºC)
    The lamp in this product contains mercury. Please dispose of in
    accordance with local, state or federal laws.
    Speakers: Internal 10-watt (x2)
  • OPS
    Open Pluggable Specification slot (OPS ready)
