Display comercial
CDE4331-1C
Funcții esențiale
- Fast Warm Boot eliminates long startup delays, launching signage and content in under 7 seconds.
- Native 4K UHD in Any Orientation delivers sharp, high-resolution visuals in landscape or portrait.
- USB media playback & scheduling with automatic failover ensures uninterrupted signage
- Commercial‑Grade Brightness & 24/7 Reliability keep content clear and visible around the clock.
- Centralized control with Pro-AV integration and remote management via Web UI and ViewSonic Manager.
- Secure, Future-Ready Platform with Android 14, Quad-Core SoC, and 8GB RAM.
Descrierea produsului
The ViewSonic CDE31 Series is a turnkey, commercial-grade digital display that delivers impactful communication across corporate, retail, education, and healthcare environments. With native 4K Ultra HD resolution and reliable 24/7 operation, it delivers sharp, consistent visuals in both landscape and portrait orientations— ideal for digital signage and meeting spaces. Powered by Android 14 OS and a next-generation Quad-Core SoC with 8GB RAM, the CDE31 Series ensures smooth playback and responsive performance for continuous content delivery. The platform is upgradeable to Android 16, supporting ongoing security updates and long-term compatibility. For streamlined deployment and management, it offers seamless ProAV integration with leading control systems, dual 16W built-in speakers, 3.5 mm audio in/out. It also supports static IP configuration, a simplified web-based UI, and centralized remote control via ViewSonic Manager.

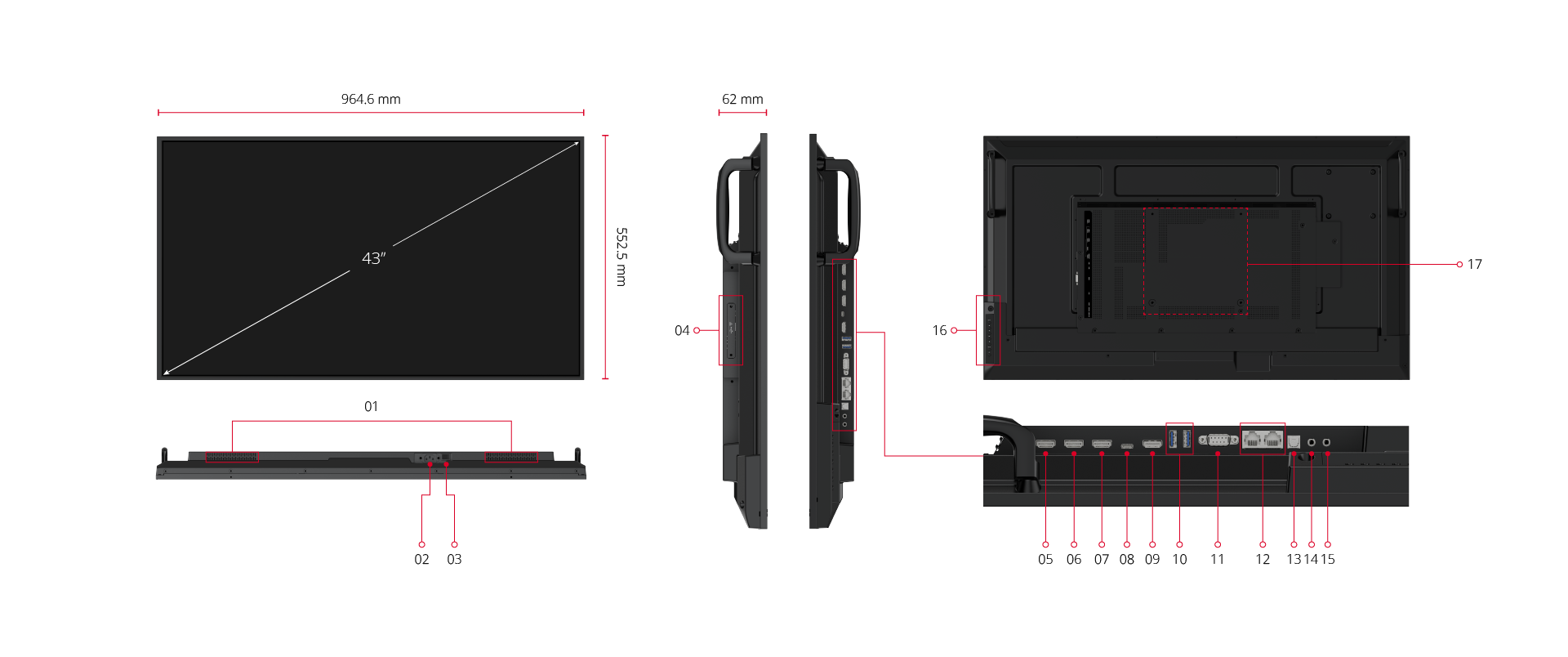

- Speaker
- AC IN
- Power Switch
- WiFi Slot
- HDMI 1
- HDMI 2
- HDMI 3
- USB Type-C
- HDMI Out
- USB2.0 x1, USB3.2 Gen x1
- RS232
- LAN
- SPDIF
- Audio In
- Audio Out
- Control Panel
- VESA® Wall Mount (200x200mm)
Vizitează Noi
- www.viewsonic.com
-
DISPLAY
Dimensiune Panel: 43" Tipul/ Tehnologia: TFT LCD module with DLED backlight Suprafață Display (mm): 941.184(H) x 529.416(V) 42.5" diagonal Rezoluție Nativă: 3840 x 2160 Aspect Ratio: 16:9 Colors: 8bit+FRC Luminozitate: 500 nits Rată de contrast: 1200:1 (typ.) / 2000:1 (DCR enabled) Timp de răspuns: 6.5ms Unghiuri de vizualizare: H = 178, V = 178 typ. Durată de viață sursă de lumină fundal: 50,000 Hours Tratament pentru protecția suprafeței: Hardness: 3H, Anti-glare coating, Haze 25% Ramă: 9.9/9.9/9.9/9.9 mm (L/R/T/B) Orientare: Landscape & Portrait -
PLATFORMă
Procesor: Quad-core ARM Cortex-A73 Memorie RAM: 8GB DDR4 Stocare: 32GB -
INPUT
HDMI: REAR x3 (HDMI 2.1 4K@60Hz, HDMI 1 support ARC) Audio: 3.5mm x1 RS-232: x 1 WiFi Slot: WIFI slot x1 -
OUTPUT
HDMI: X 1 Audio: 3.5mm x1 (Line out) SPDIF: x 1 -
LAN
RJ45: x 2 (*1 LAN-in & *1 LAN-out) 10/100M for USB TypeC, 1000M for OPS -
USB
Tip A: x 2 (USB2.0 x1, USB3.2 Gen1 x1) Tip C: x 1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing) -
DIFUZOARE
16W x 2 -
COMPATIBILITY
HDMI: 3840X2160 @60Hz -
SISTEM DE OPERARE INCORPORAT
Android 14 AOSP -
BUNDLED SOFTWARE
Prezentare wireless: AirSync Device Management: Manager -
POWER
Voltaj: 100-240 VAC +/- 10% Consum: 44.58W with Energy Star -
ERGONOMICS
Montare pe perete (VESA® ): 200x200 mm -
OPERATING CONDITIONS
Temperatură (º C): 0 to 40℃ Umiditate: 20% ~ 80% RH non-condensing -
OPERATING HOURS
24/7 -
DIMENSIUNU (D X Î X A)
Dimensiuni (inch/ mm): 37.98 x 21.75 x 2.44 in/ 964.6 x 552.5 x 62 mm Ambalare (inch/ mm): 41.57 x 24.88 x 6.14 in/ 1056 x 632 x 156 mm -
WEIGHT
Masă (Ib/ kg): 20.06lb / 9.1kg Greutate (Ib/ kg): 28.75lb / 13.04kg -
REGULATIONS
cTUVus, FCC/ICES003, Energy star 8, EPEAT Gold, EEI,, EMC/CE Report, CB, EAC, UkrSEPRO, RCM, Green BOM, RoHS DoC, ErP-Eco, REACH DoC, SCIP, WEEE report, Annex I, Annex II, TPCH DoC, Packing waste, CA65 DoC -
ENERGY STAR
ES8.0 -
RATING EEI
F -
CONȚINUT PACHET
1. 3m power cord by ship area
2. Remote control
3. AAA battery x 2
4. Quick Start Guide
5. RS232 adapter
6. Clamp x 5
7. wall mount Screw x 4
8. HDMI cable 3m(HDMI LA certified)
9. Compliance statement
