Główne cechy

VSD231
Opis produktu

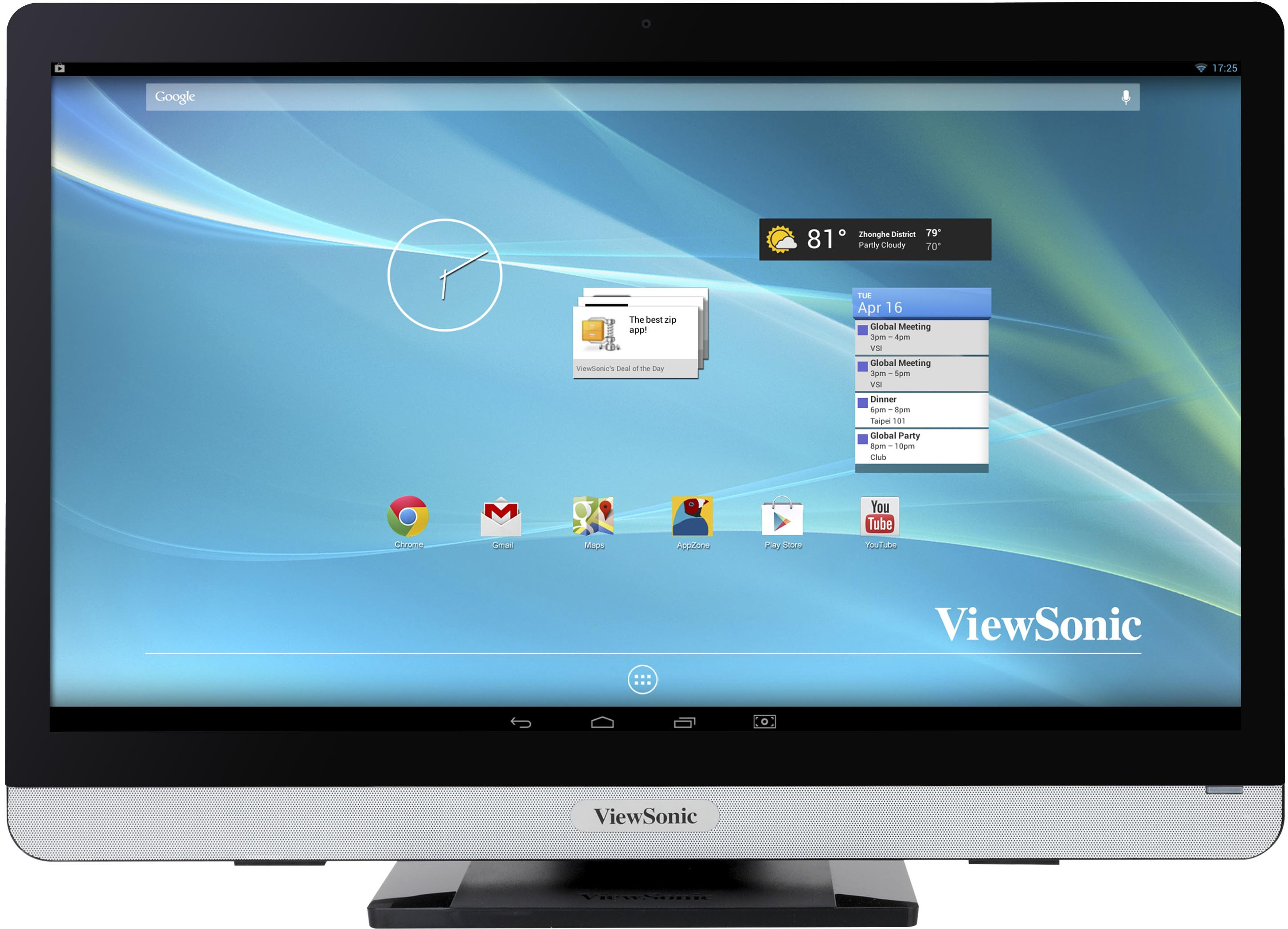

The ViewSonic VSD231 is a 23” IPS LED Smart Display with 1920x1080 Full HD resolution. It features an NVIDIA Tegra® 4 1.6 GHz Processor, a 10-point projected capacitive touch screen, and Android Jelly Bean OS. With Google GMS certification, the VSD231 allows users to enjoy diverse Android multimedia applications such as social networking, cloud services, and online video. Versatile connectivity options include HDMI (MHL), four full-size USB and one micro USB port, SD card reader, RJ45 LAN, headphone jack, and 2M pixel webcam with integrated mic for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents, and multimedia files. In addition, the VSD231 can also operate as a traditional 23’’ Full HD touch display via HDMI to your PC/Laptop for office work, or for surfing the internet and gaming. Integrated speakers with ViewSound Premium Audio system complete the package for your multimedia enjoyment.
Odwiedź Nas
  • www.viewsonic.com
  • SYSTEM
    CPU Processor: nVidia Tegra® T40S (Quad- Core 1.6GHz)
    System Operacyjny: Android Jelly Bean 4.3.1 OS
    System Memory: 2GB DDR3
    Storage Memory: 8GB eMMC iNand
  • DISPLAY
    Typ: 23” TFT transmissive LCD
    Display Area: 23"
    Optimum Resolution: 1920 x 1080
    Jasność: 300 cd/m2 (typ.)
    Współczynnik kontrastu: 1,000:1 (typ.)
    Kąty widzenia: 178° / 178°
    Czas reakcji: 14ms (typ.)
    Panel Surface: Touch Glasses (7H)
    Touch Panel: HannsTouch PCT 10 points supported
  • INPUT/OUTPUT
    USB: USB 3.0 Type A x3, USB 3.0 Type B x1,USB 2.0 Type A x1, Micro USB x1 (data transferig with PC)
    HDMI: HDMI in (MHL) x1, HDMI out x1
    Card Reader: SD card slot x1
    LAN/Ethernet: RJ45 x1 (10M/100M/1000M)
    Dźwięk: 3.5mm audio jack x1, 3.5mm ear-phone jack x1
    Video: D-Sub In x1
    Moc: DC jack power x1
    Speakers: 2W x2
    Front Camera: Wafer lens 2.0 MP
  • POWER
    Napięcie: AC Input voltage 100~240VAC, 50/60Hz (universal),
    Zużycie energii: On mode: 90W, Standby mode: <5W, Off mode: 0.5W
  • ERGONOMICS
    Nachylenie: -5° ~ 90°
    Regulacja wysokości: 0~ 22mm
  • OPERATING CONDITIONS
    Temperature (º F / º C): 0°C to 35°C
    Wilgotność powietrza: 20%~90% non-condensing
  • DIMENSIONS (W X H X D) (INCH / MM)
    Physical w stand: 21.30 x 15.46 x 7.57 inches / 547.1 x 392.61 x192.4 mm
    Physical w/o stand: 21.30 x 14.64 x 1.87 inches / 547.1 x 371.91 x 47.4 mm
    Packaging: 24.4 x 17.9 x 6.7 inches / 620 x 455 x 170 mm
  • WEIGHT
    Waga netto (lb / kg): 15.86 lbs / 7.20 kg
    Brutto (Ib/kg): 19.60 lbs / 8.9 kg
  • WALL MOUNT
    VESA® (mm): 100 x 100mm
  • RECYCLE / DISPOSAL
    Please dispose of in accordance with local, state or federal laws
  • WARRANTY
    **Warranty offered may differ from market to market
  • WHAT'S IN THE BOX
    The top level assembly shall contain:
    1. VSD231
    2. Power adapter with power cord depend on regions.
    3. HDMI (1.8M)
    4. VGA cable (1.8M)
    5. Quick Start Guide
    *Actual content may differ from market to market
