Główne cechy

Opis produktu

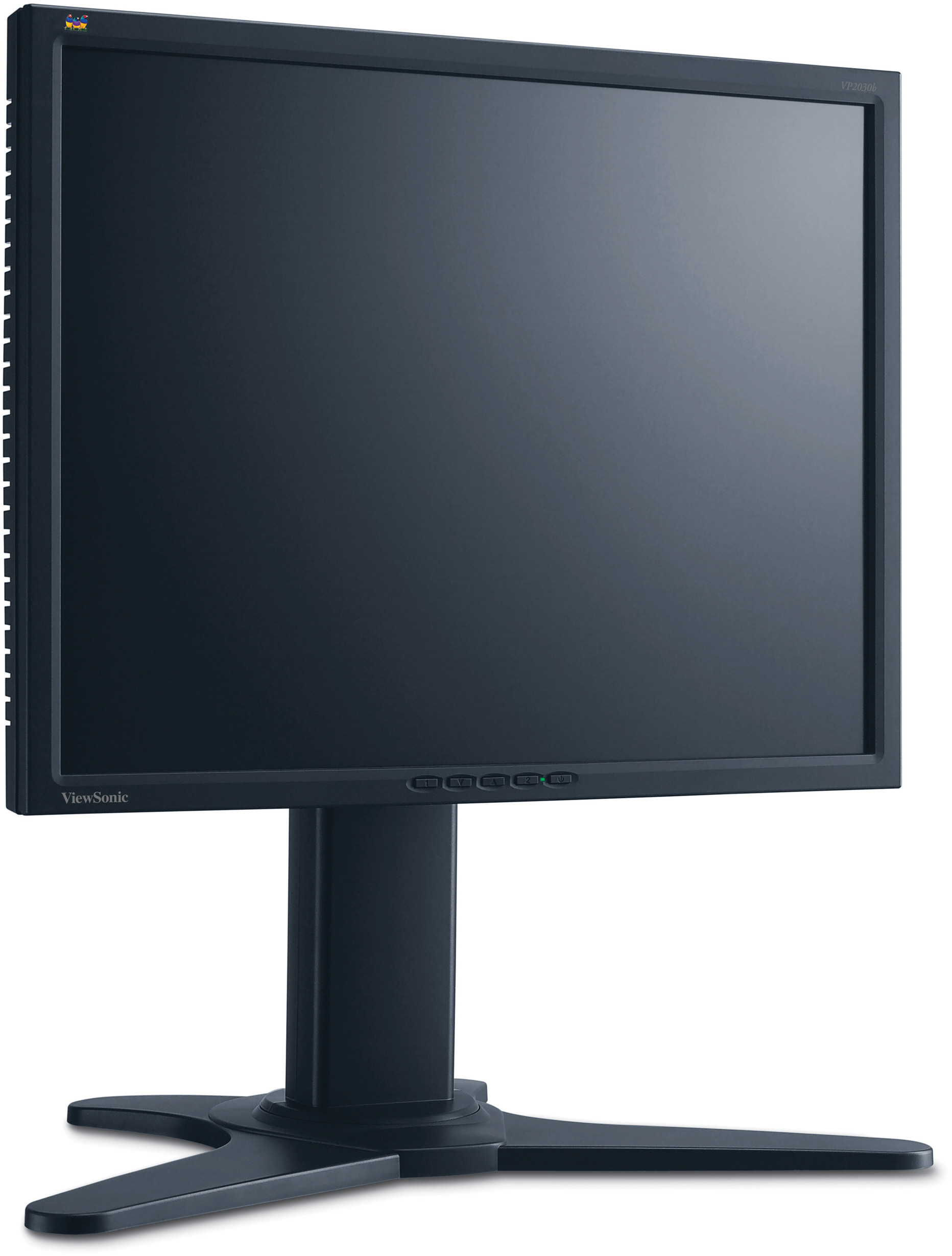

With the VP2030b, the large 20.1” screen and 1600 x 1200 resolution ensures you don’t lose sight of your big ideas. This THINEDGE ULTRA-SLIM BEZEL LCD MONITOR also increases productivity thanks to 170o ultra-wide viewing angles and ClearMotiv™ 8 ms broadcast- quality display technology. Professional users such as video editors, financial traders and CAD/CAM engineers as well as power gamers will welcome the possibility of multiple-panel configurations with easy HEIGHT/TILT/270° SWIVEL/PIVOT adjustments. The numerous digital/analogue inputs and USB 2.0 high-speed connectivity make the VP2030b extremely versatile and is sure to become a popular choice for demanding applications.It's not just another professional LCD. It's a ViewSonic.
Odwiedź Nas
  • www.viewsonic.com
  • LCD
    Typ: 20.1" MVA colour TFT active matrix UXGA LCD
    Współczynnik kontrastu: 1000:1 (typ.)
    Kąty widzenia: 170° horizontal, 170° vertical (at 10:1)
    170° horizontal, 170° vertical (at 5:1)
    Glass Surface: Anti-glare
    Display Area: 40.8cm (horizontal) x 30.6cm (vertical), 51.1cm diagonal
    Optimum Resolution: 1600 x 1200
    Czas reakcji: 8ms (grey-to-grey), 16ms (off-on-off)
    Pixel Pitch: 0.255mm
    Bandwidth: 165MHz
    Colour Support: 16.7M colours (8-bit)
    Jasność: 300cd/m2 (typ.)
    Mac®: Power Mac™ up to 1600 x 1200 (max. 60Hz)
    PC: Compatible from VGA up to 1600 x 1200 non-interlaced (max. 60Hz)
    W x H x D mm: 468 x 403 - 538 x 315 (w/stand)
    448 x 346 x 66 (w/o stand)
    LCD monitor, power cable, 15-pin VGA video cable, DVI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers), PerfectSuite™ CD-ROM
    Analogue: 15-pin mini D-sub (detachable cable)
    Digital: 29-pin Digital DVI-I (analogue and digital) (detachable cable)
    USB: 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)
    Moc: 3-pin AC plug (CEE22)
    Napięcie: AC 100 – 240V, 50/60Hz (Auto-Switch), internal power supply
    Zużycie energii: 52 watt (typ.), < 2 watt in power save mode
    Basic: Soft power, menu [1] , down, up, select [2], main power
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-A, DVI-D), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (PIP [PIP,PIP position, PIP swap], H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, input priority, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock, memory recall
    Temperatura: 0°C to 40°C
    Wilgotność powietrza: 10% to 90% (non-condensing)
    Waga netto: 9kg (w/stand); 5.2kg (w/o stand)
    Frequency: Fh: 24 – 92kHz, fv: 50 – 85Hz
    Sync: H/V separated (TTL), composite, sync on green
    Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
    Digital: DVI (TMDS, 100 ohms)
    Meets TCO’99, ENERGY and Energy Star standards
    Nachylenie: Down 5°, up 20°
    Obrót: 270° (135° left/right)
    Height Adjustment: 0~ ≥135mm
    Pivot: 0°~ 90°
