Główne cechy

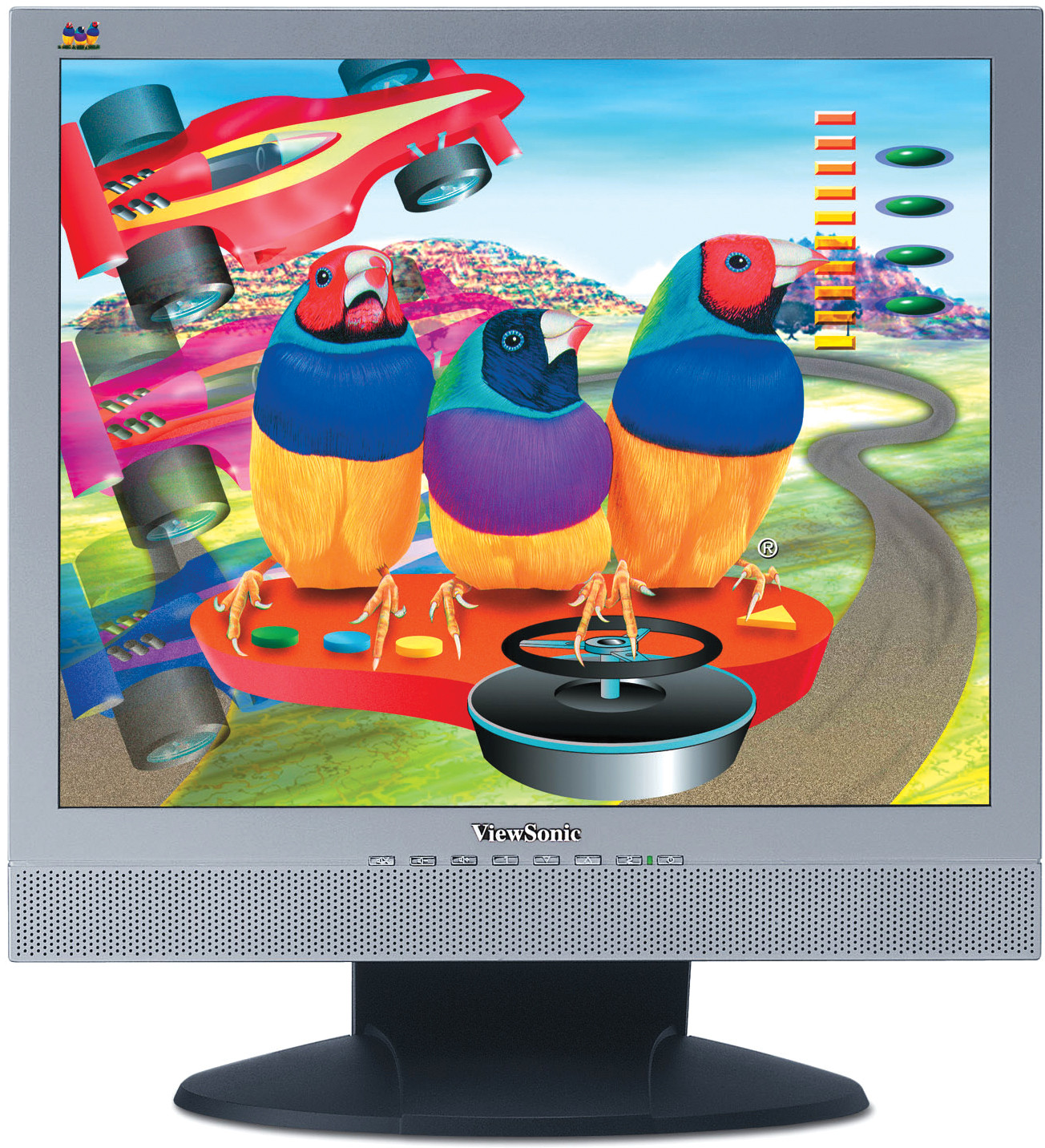

VG712b
Opis produktu
Odwiedź Nas
  • www.viewsonic.com
  • LCD
    Typ: 43mm / 17.0" colour TFT active matrix SXGA LCD
    Współczynnik kontrastu: 500:1 (typ)
    Kąty widzenia: 140° horizontal, 130° vertical (at 10:1)
    160° horizontal, 160° vertical (at 5:1)
    Display Area: 33.8cm horizontal x 27cm vertical; 43.2cm diagonal
    Optimum Resolution: 1280 x 1024
    Czas reakcji: 8ms (typ.)
    Panel Surface: Anti-glare
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
    Jasność: 300 cd/m² (typ)
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024
    Mac®: Power Mac™ G3/G4 up to 1280 x 1024
  • DIMENSIONS
    Physical With Stand: 378mm x 405mm x 177mm
    Physical Without Stand: 378mm x 405mm x 50mm
  • AUDIO
    Głośnik: 2x3-watts
    Amplifier: 3 watts @1kHz
  • CONNECTOR
    Dźwięk: 3.5mm audio line-in
    Signal: 15-pin mini D-sub, DVI-D2
    Moc: 3-pin AC plug
  • POWER
    Napięcie: AC 100-240V, 50-60Hz (auto switch), external power supply
    Zużycie energii: <36W (typ), ≤1W in power save mode
  • CONTROLS
    Basic: Power (soft), 1, down, up, 2, mute, volume up, volume down
    OSD: Auto image adjust, contrast, brightness input select, audio adjust
    (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault,
    5400K, 5000K, user colour), information (mode, model
    number, serial number), manual image adjust (H. size, H. position,
    V. position, fine tune, sharpness), setup menu (language, resolution
    notice, OSD position, OSD timeout), memory recall
  • OPERATING CONDITIONS
    Temperatura: 0–40°C
    Wilgotność powietrza: 10–90% (non-condensing)
  • WEIGHT
    Waga netto: 5.3kg
  • VIDEO INPUT
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
    Digital: DVI-D (TMDS, 100 ohms)
    Frequency: Fh: 30~82kHz, Fv: 50~85Hz
  • POWER MANAGEMENT
    Meets TCO’03 and ENERGY standards.
