Wyświetlacz LCD

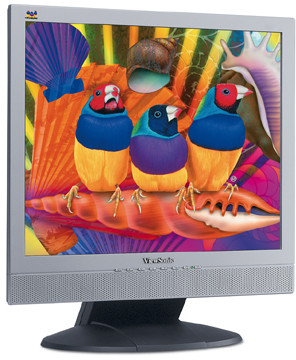

VA912
Główne cechy
Opis produktu
Odwiedź Nas
- www.viewsonic.com
-
LCD
Typ: 48cm / 19" colour TN TFT active matrix SXGA LCD Współczynnik kontrastu: 600:1 (typ) Kąty widzenia: 140° horizontal, 130° vertical (at 10:1)
150° horizontal, 160° vertical (at 5:1)Jasność: 250cd/m² (typ) Display Area: 376mm horizontal x 301mm vertical, 48.3cm diagonal Optimum Resolution: 1280 x 1024 Czas reakcji: 8ms (typ) Panel Surface: Anti-glare Pixel Pitch: 0,294mm Colour Support: 16.2M colours (6-bit + 2-bit FRC) -
COMPATIBILITY
PC: VGA up to 1280 x 1024 (up to 75Hz) Mac®: Power Mac™ G3/G4/G5 up to 1280 x 1024 @ 75 Hz -
DIMENSIONS
W x H x D mm: 424 x 442 x 186 (with stand) -
INPUT SIGNAL
Frequency: Fh: 30-82kHz,
Fv: 50-85HzAnalogue: RGB analogue (75 ohms, 0.7 Vp-p) Digital: DVI-D (TMDS, 100 ohms) Sync: H/V separated (TTL) -
CONNECTOR
Analogue: 15-pin mini D-Sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) Dźwięk: Stereo mini audio line in -
POWER
Napięcie: AC 100–240V (universal), 50–60Hz (auto switch), internal power supply Zużycie energii: < 60W (typ.); ≤ 3 watt in power save mode -
CONTROLS
OSD: Auto image adjust, brightness, contrast, input select (analogue, digital), colour adjust (sRGB, 9300K, 6800K, 6500K, user RGB), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall Physical: Physical Power on/off, menu, up, down, select -
OPERATING CONDITIONS
Temperatura: 0°C to 40°C Wilgotność powietrza: 10% to 90% (no condensing) -
WEIGHT
Waga netto: 5.5kg -
POWER MANAGEMENT
Meets TCO'99 and ENERGY standards -
ERGONOMICS
Nachylenie: Down 5°, Up 20°
