Główne cechy
  • 6,000 ANSI Lumens ensure vibrant images in large venues​
  • High native contrast ratio provided by a 0.65” DMD chip and DLP technology
  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan​
  • Installation flexibility: 1.7x zoom, V lens shift, H/V keystone correction, and 360° projection​
  • Centralized LAN control for efficient management​
  • HDMI 2.0b enables 4K HDR/HLG content playback

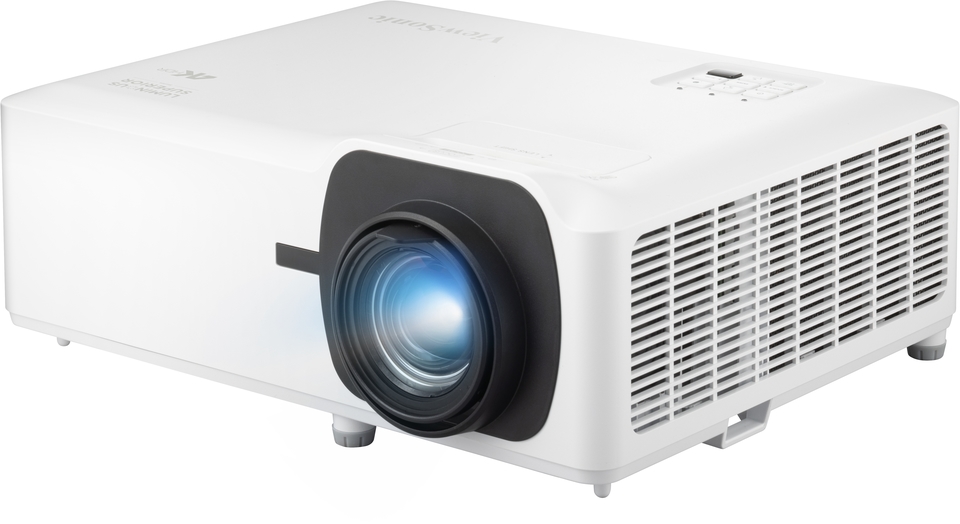

LS901HD
Opis produktu
Introducing the LS901HD from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 6,000 ANSI Lumens brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. With a 1.7x optical zoom, it allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. The projector also features HDMI 2.0b, allowing you to enjoy original 4K quality content with HDR and HLG support. Employing advanced 3rd generation laser phosphor technology, the LS901HD boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

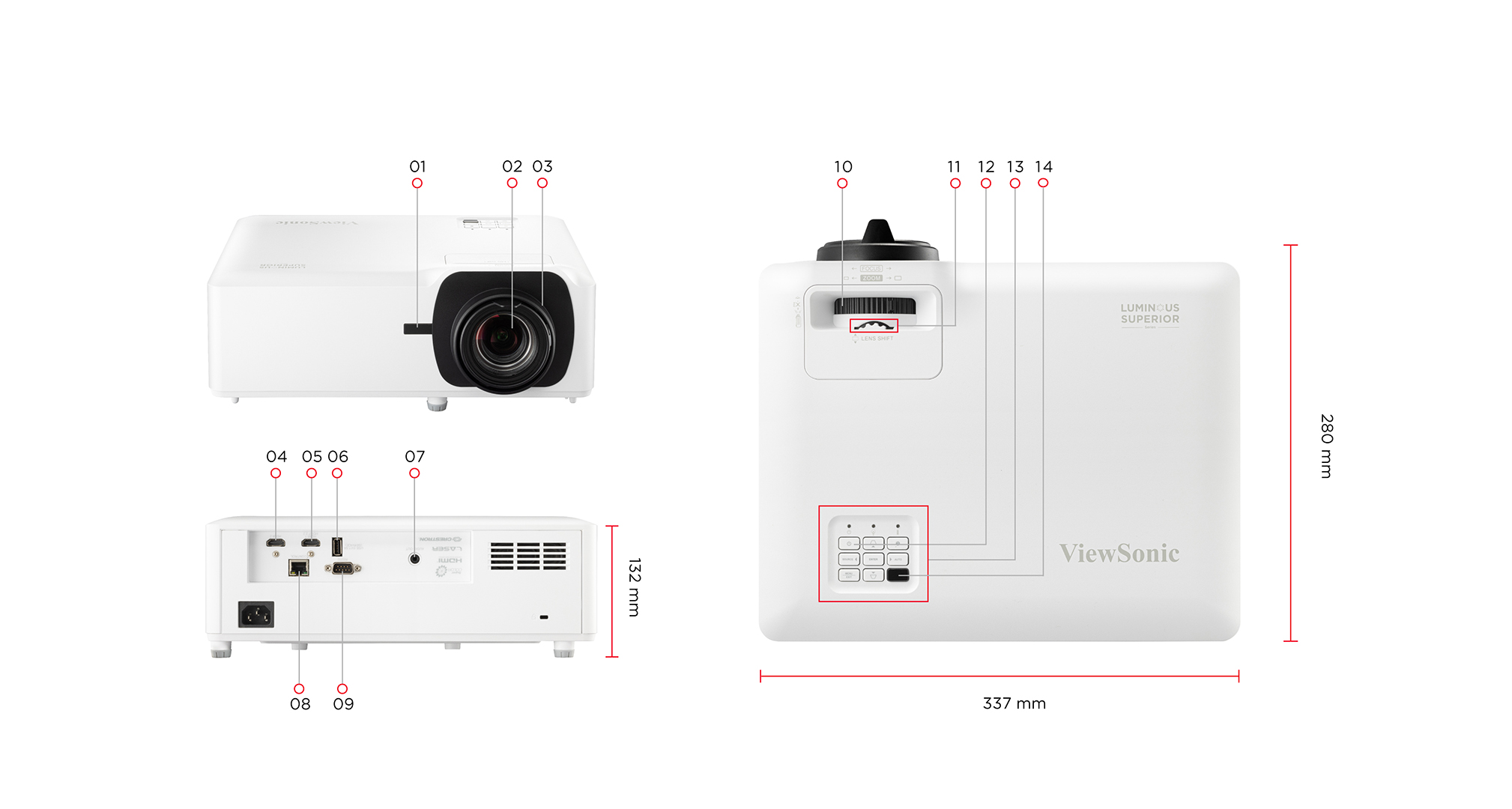

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI 1.4/HDCP 1.4
  5. HDMI 2.0/HDCP 2.2
  6. USB-A (5V/1.5A, Service)
  7. Audio Out
  8. RJ45
  9. RS232
  10. Zoom Ring
  11. Lens Shift Control Knob
  12. Power Button
  13. Keypad
  14. Top IR
Odwiedź Nas
  • www.viewsonic.com
  • SPECYFIKACJA
    System projekcji: 0.65" 1080p
    Rozdzielczość Natywna: 1920x1080
    Jasność: 6000 (ANSI Lumens)
    Brightness (Center Lumens): 6600
    Współczynnik kontrastu: 3000000:1
    Display Color: 1.07 Billion Colors
    Rodzaj źródła światła: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Obiektyw: F=2.3-3.0, f=17.63-27.9mm
    Przesunięcie projekcji: 154% +/- 10%
    Współczynnik rzutu: 1.2-2.04
    Powiększenie optyczne: 1.7X
    powiększenie cyfrowe: 0.8x-2.0x
    Wielkość obrazu: 30"-300"
    Odległość rzutu: 0.80-13.55m
    (100”@2.66m)
    Korekcja trapezowa: H:+/-30° , V:+/-30°
    Zasięg przesunięcia obiektywu w pionie: 0%, -21%
    Dźwięk (tryb normalny): 31dB
    Audible Noise (Eco): 25dB
    Opóźnienie sygnału wejściowego: 16ms
    Obsługa rozdzielczości: VGA(640 x 480) to 4K UHD(3840 x 2160)
    Kompatybilność z HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Częstotliwość w poziomie: 15K-135KHz
    Częstotliwość skanowania pionowego: 23-120Hz
  • WEJśCIE
    HDMI: 2
    (HDMI 2.0/ HDCP 2.2
    HDMI 1.4/ HDCP 1.4)
  • WYJśCIE
    Audio-out (3.5mm): 1
    Głośnik: 15W x2
    USB typu A (zasilanie): 1 (5V/1.5A)
  • STEROWANIE
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • INNE
    Napięcie zasilacza: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Zużycie energii: Normal: 245W
    Standby: <0.5W
    Temperatura Pracy: 0~40℃
    Carton: Brown
    Waga netto: 4.77kg
    Gross Weight: 6.7kg
    Wymiary (S x G x W) z regulowanym stopkiem: 337x280x132mm
    Packing Dimensions: 496x387x195mm
    Język menu: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak, Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Kabel zasilający: 1
    Zdalne sterowanie: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • AKCESORIA OPCJONALNE
    Wall/Ceiling Mount: PJ-WMK-007
