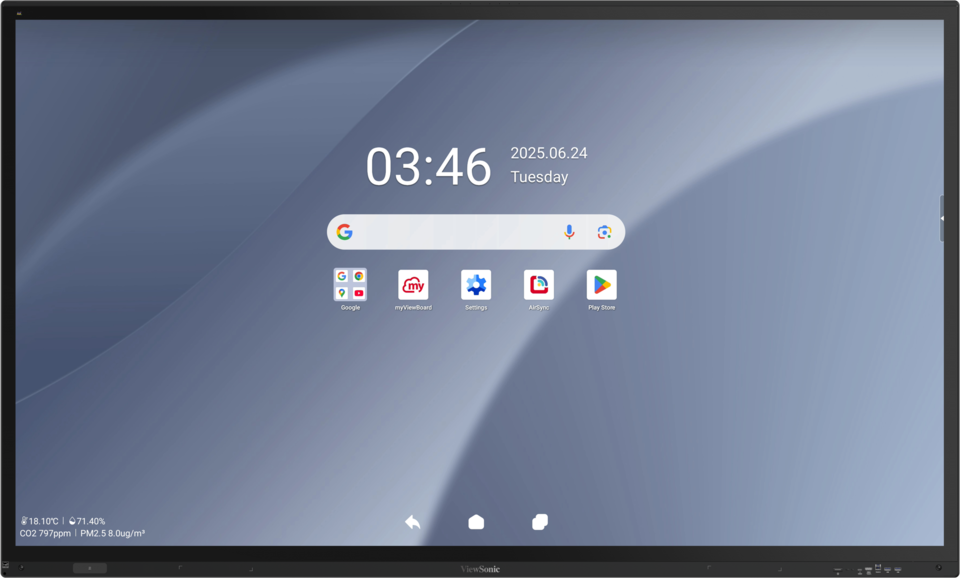

ViewBoard
IFP8663-1C
Główne cechy
- Ultra-precise writing with 50-point PCAP touch, palm rejection, and Write Away™ technology
- Secure, future-ready performance with upgradable Android 15 OS, EDLA certification, and octa-core processor with 16GB RAM
- Streamlined device management with ViewSonic Manager
- NFC login for fast, secure user access in shared workspaces
- Smart sensors that auto-adjust brightness, monitor ambient conditions, and activate power-saving modes
- EPEAT Gold certified delivering up to 24% greater energy efficiency than the previous generation.
Opis produktu
The ViewSonic® ViewBoard® IFP63 Series is a 4K UHD interactive flat panel designed for secure, high-performance collaboration in enterprise and higher education environments. With ultra-responsive 50-point PCAP touch, palm rejection, and Write Away™ technology, it enables seamless, pen-on-paper annotation—ideal for hybrid meetings, interactive lessons, and brainstorming sessions. Powered by Android 15 and EDLA-certified, the interactive display provides secure access to the latest apps and updates on a future-ready platform. An octa-core processor and 16GB of RAM support smooth multitasking for demanding workflows, while NFC tap-to-sign-in simplifies access in shared settings. Part of the ViewSonic Business Solutions, it includes three powerful software tools: Manager for remote device management, AirSync for wireless casting, and TeamOne for real-time collaboration. Designed with sustainability in mind, this display features integrated sensors that adjust brightness, monitor environmental conditions, and trigger energy-saving modes. It is certified EPEAT Gold and EEI Level F for efficient, environmentally responsible deployment.
- NFC
- Power
- USB-C 3.2 Gen 1
- HDMI 4
- Touch 3
- USB-A 3.2 Gen 1
- USB-A 3.2 Gen 1
- USB-C 3.2 Gen1
- VESA® Wall Mount (800x600 mm)
- OPS Slot
- Audio In
- USB-C Out
- Audio Out
- USB-A 3.2 Gen 1*2
- Micro SD
- HDMI Out
- Touch 1
- HDMI 1
- HDMI 2
- HDMI 3
- USB-C 3.2 Gen 1
- WiFi Slot
- Speaker
- Power Switch
- AC In
- SPDIF
- LAN
- DP In
- RS232
- Touch 2
- USB-A 2.0
Odwiedź Nas
- www.viewsonic.com
-
WYśWIETLACZ
Rozmiar panelu: 86" Typ panelu: TFT LCD module with DLED backlight, ADS Obszar wyświetlania (mm): 1895.04 (H) x 1065.96 (V)(85.6”diagonal) Proporcje obrazu: 16:9 Rozdzielczość: UHD 3840x2160(Pixels) Colors: 1.07G colors (8-bit+FRC) Jasność: 500 nits Współczynnik kontrastu: 5000:1 Czas reakcji: 8ms Kąty widzenia: H = 178, V = 178 (Typ.) Czas pracy podświetlenia: 50,000hrs (Typ.) Obróbka powierzchni: Pencil Hardness 9H with AG+AF+Anti-bacteria Ramka: 32.5/32.5/39.7/64.8 Orientacja: Landscape -
PLATFORMA
Procesor: Octa-Core CPU (A76*4 + A55*4) RAM: 16GB LPDDR Pamięć masowa: 128GB eMMC -
TOUCH
Rodzaj/Technologia: PCAP Czułość dotyku: 32767 x 32767 Punkt dotyku: Windows: 50 Android: 50 Palm Rejection: both passive and active pens -
INPUT
HDMI: FRONT x1
(HDMI 2.1) (HDMI support CEC)
REAR x3
(HDMI 2.1) (HDMI 1 support CEC, ARC)
(HDMI 2.1) (HDMI 2, 3 support CEC)DisplayPort: 1 (DP1.2) Dźwięk: 1 (3.5mm phone jack, mic in) RS232: x1 SD/SDHC: MicroSD card slot x1 OPS: OPS slot x1 WiFi: WIFI slot x1 -
OUTPUT
HDMI: x1 (4K@60Hz) Dźwięk: x1 (Earphone out) SPDIF: x1 (Optical) -
SIEć LOKALNA
RJ45: x2
(Speed: 10/100/1000Mbps, WOL supported, ProAV vendor & ViewSonic protocol supported) -
USB
Typ A: REAR x1 (USB 2.0 support OTG)
REAR x2 (USB 3.2 Gen 1)
FRONT x2 (USB 3.2 Gen 1)Typ B: FRONT x1 (USB 2.0)
REAR x2 (TOUCH 1: USB 3.0; TOUCH 2: USB 2.0)Typ C: FRONT x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 65W)
REAR x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 100W)
Top x1 (USB 3.2 Gen 1 + PD15W to support Camera mounting) -
GłOśNIKI
20W x 2 + 20W x 1 (Subwoofer) -
MICROPHONE
Built-in 8 Array Microphone -
TOP CAMERA PLATE
Yes -
COMPATIBILITY
HDMI: 3840x2160 @ 60Hz DisplayPort: 3840x2160 @ 60Hz -
ZINTEGROWANY SYSTEM OPERACYJNY
Android 15 EDLA -
BUNDLED SOFTWARE
Basic Annotation Software: myViewBoard for Android Pro Annotation Software: myViewBoard for Windows (embedded in VPC) Pro Whiteboarding Software: TeamOne Prezentacja bezprzewodowa: AirSync Device Management: Manager ViewSonic Launcher: Yes -
CECHY SZCZEGóLNE
All-in-one USB port: USB 3.2 Gen1 “SmartPort USB” to all channels Proste udostępnianie LAN między IFP a urządzeniem typu "slot-in": (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000) Light Sensor: Yes PIR Sensor: Yes NFC Reader: Yes Pen Sensor for supporting Write Away: Yes Environmental Sensor: Temperature Sensor x1, Humidity Sensor x1, eCO2 Sensor x1, VOCs Sensor x1, PM2.5 Sensor x1 -
MOC
Napięcie: 100-240VAC +/- 10% Wide Range Zużycie energii: On: 121.1W / Off: <0.5W -
ERGONOMICS
Uchwyt do montażu na ścianie (standard VESA®): 800 x 600 -
OPERATING CONDITIONS
Temperatura (º C): 0℃ ~ 40℃ Wilgotność powietrza: 20% ~ 80% RH non-condensing -
WYMIARY (S X W X G)
Wymiary fizyczne (cale / mm): 77.2 x 46.2 x 3.1in/ 1961.9 x 1172.5 x 79.5mm Opakowanie (cale/mm): 87 x 50.8 x 8.9in/ 2110 x 1291 x 225mm -
WEIGHT
Waga netto (lb / kg): 143.5lb/ 65.1kg Brutto (Ib/kg): 185.6lb/ 84.2kg -
REGULATIONS
cTUVus, FCC, EPEAT, CE, CB, BSMI, NCC, RoHS DoC, WEEE, ErP, Flicker Free, Low Blue Light -
WERSJA ZGODNA Z NORMAMI ENERGY STAR
ES8.0 -
WSKAźNIK EFEKTYWNOśCI ENERGETYCZNEJ
Level F -
ZAWARTOść OPAKOWANIA
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. 3m touch USB cable(USB 2.0)
4. Touch pen x 2 (VB-PEN-101-2C)
5. RS232 adapter
6. Quick Start Guide
7. Clamp x 5
8. Camera Plate
9. Screw x 10 (camera 2+4, wall mount 4)
10. HDMI cable 3m(HDMI LA certified)
11. Remote control
12. AAA Battery x 2
13. Compliance statement -
KOMPATYBILNY KOMPUTER TYPU SLOT-IN
VPC3X Series/ VPCF5-2A Series/ VPCF5 Series/ VPC-A31-O1
