Główne cechy

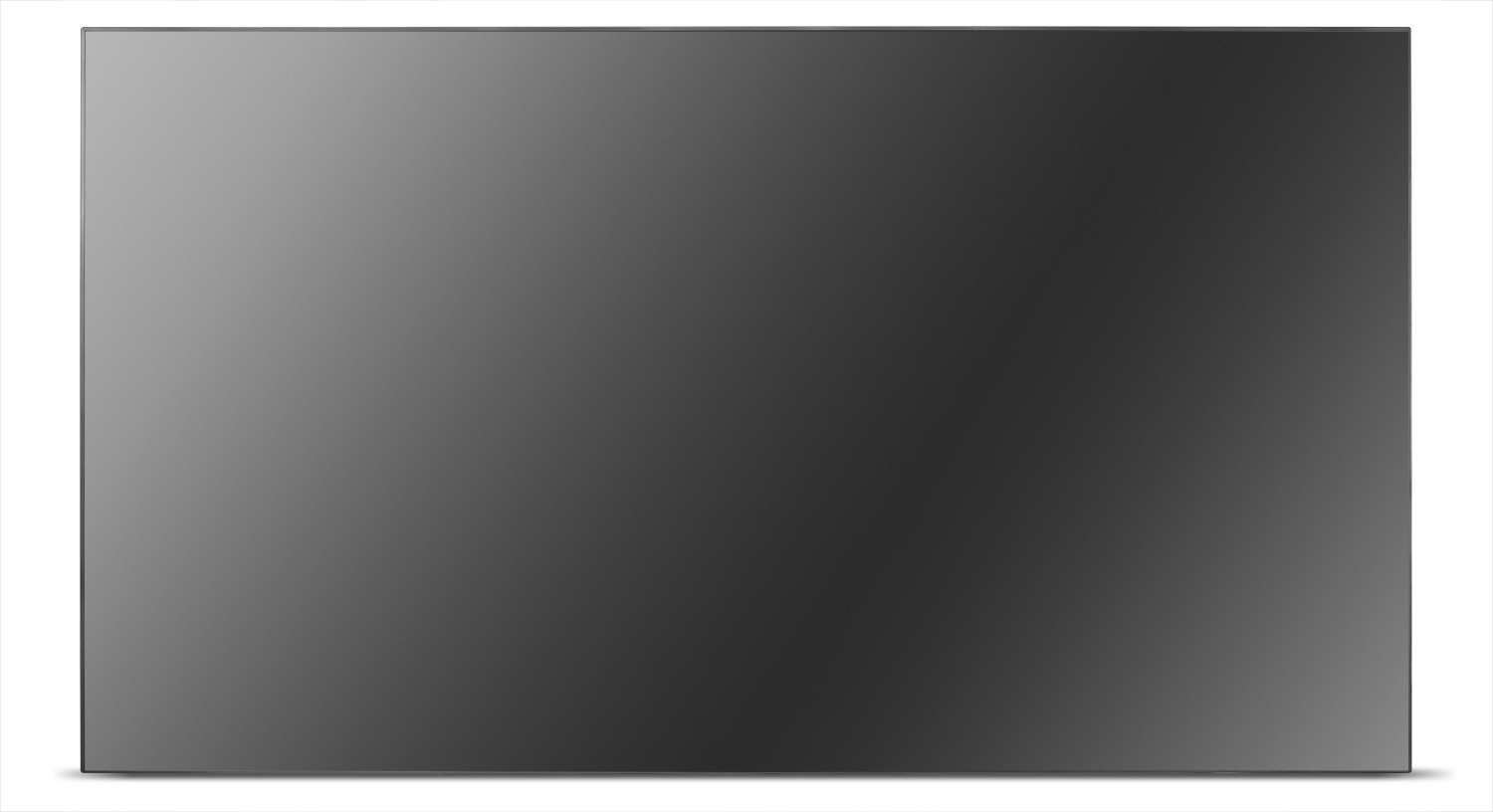

CDX5550-L
Opis produktu
The ViewSonic® ultra narrow CDX5550-L Full HD LED commercial display is engineered for commercial video wall installations. This energy-saving LED backlight display delivers stunning brightness and contrast for a beautiful, crisp picture, with 8ms response time to ensure smooth video playback. One of the few displays this large with support for Intel OPS, the CDX5550-L offers convenient media player integration for scalable, modular solutions,plus multiple digital and analogue connectivity options. A slim bezel, 5x5 tiling and input loop-through make this the perfect display for video wall applications with even a single media player.
Odwiedź Nas
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Typ: 55" (54.6" viewable) color TFT active matrix, wide LED
    Współczynnik kontrastu: 3500:1 (typ)
    Kąty widzenia: 178º horizontal, 178º vertical
    Jasność: 700 cd/m2 (typ)
    Display Area: 47.6" horizontal x 26.7" vertical; 54.6" diagonal
    Optimum Resolution: 1920x1080, 0.485mm dot pitch
    Czas reakcji: 8ms
    Źródło Światła: Long life, 50,000 hrs. (typ)
    Proporcje obrazu: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • DIMENSIONS
    Physical With Stand: 47.9 x 29.1 x 15.8 in. / 1259.3 x 737.8 x 400 mm
    Physical Without Stand: 47.9 x 27.0 x 5.0 in. / 1259.3 x 686.1 x 128.1 mm
    Packaging: 57.5 x 35.6 x 12.6 in. / 1461 x 904 x 320 mm
  • ZAWARTOść OPAKOWANIA
    CDX5550-L LED Display, power cable, remote control with batteries, User Guide, Quick Start Guide
  • AUDIO
    Głośnik: Internal 10-watt (x2) / 8 ohm
    Amplifier: 10w / 8 ohm
  • INPUT
    Wejście wideo: HDMI, DVI, component, VGA, S-Video, CVBS (BNC)
    Video Output: VGA, component, DVI (Loop Through)
    Control Input/Output: RS-232 / RJ45
  • INPUT SIGNAL
    TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
  • CONNECTOR
    Digital: HDMI, DVI
    Moc: 3-pin plug
    Analog: 9-pin mini D-sub (VGA)
  • POWER
    Napięcie: AC 100–240V (universal), 50–60Hz
    Zużycie energii: 220W (typ)
  • CONTROLS
    Picture: Picture mode, contrast, brightness, color temperature,
    temperature adjust, sharpness
    Front Panel: Power, Exit, +, –, Menu/Enter
    Special: Aspect ratio, over scan, power save, image retention,
    auto adjustment, monitor ID, reset
    Dźwięk: Volume, mute, audio source
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    Wejście: VGA, DVI, HDMI, YPbPr
    OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
    VGA Setting: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
  • DISPLAY
    Rozdzielczość: RESOLUTIONS SUPPORTED
    640 x 480 at 60 Hz to 75 Hz
    800 x 600 at 60 Hz, 60Hz to 75 Hz
    1024 x 768 at 60 Hz, 60Hz to 75 Hz
    1280 x 768 at 60 Hz, 60Hz to 75 Hz
    1360 x 768 at 60 Hz, 60Hz to 75 Hz
    1280 x 1024 at 60Hz
    1600 x 1200 at 60 Hz
    1920 x 1080 at 60Hz (recommended resolution)
    NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
    Component: 480i,480p,720p,1080i,1080p
  • OPTIONAL ACCESSORIES AVAILABLE
    Stand (STND-021), Wall Mount (WMK-013), Wall Mount with Locking Media Player Cradle (WMK-028)
  • VESA MOUNT COMPLIANT
    VESA 400mm x 400mm
  • WEIGHT
    Brutto: 94.8 lb. / 43.0 kg
    Net With Stand: 84.2 lb. / 38.2 kg
    Net Without Stand: 79.4 lb. / 36.0 kg
  • OPERATING CONDITIONS
    Wilgotność powietrza: 10–90% (non-condensing)
    Temperature (landscape): 32–104ºF (0–40ºC)
    Temperature (portrait): 32–95ºF (0–35ºC)
  • RECYCLE/DISPOSAL
    Please dispose of in accordance with local, state, or federal laws.
