ViewBoard
CDE5560T
Główne cechy
Opis produktu

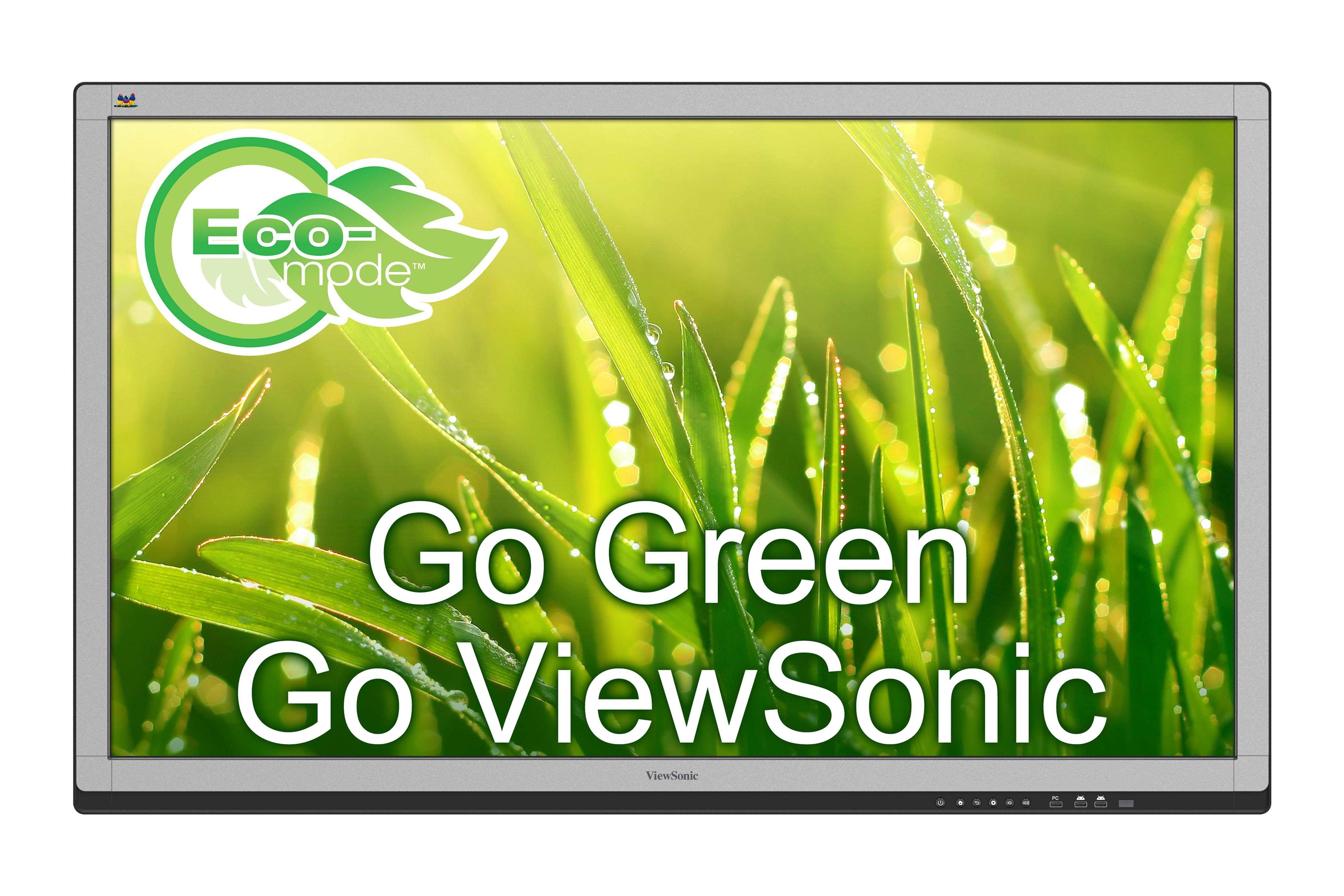

The ViewSonic CDE5560T 55’’(54.6’’ viewable) Full HD interactive LED display solution is perfect for business and education. This 10-point touch-enabled display, paired with pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s hardness surface using fingers or stylus. A Full HD screen guarantees crisp and vivid image quality, while 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms. With built-in dual core processor and 8GB internal storage, as well as integrated versatile connectivity including HDMI, VGA, YPbPr, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP710) capability, offering Windows®8 Professional (64 Bit) OS and ViewBoard annotation software for more computing-intensive interactive applications. The CDE5560T is VESA mountable (wall mount kit WMK-047 included for Europe region) or choose the optional trolley cart for flexible installation for classrooms and corporate meeting rooms.
Odwiedź Nas
- www.viewsonic.com
-
LCD PANEL
Rozmiar panelu: 55” (54.6” viewable) Rodzaj/Technologia: TFT LCD Module with LED Backlight Obszar wyświetlania (mm): 1209.6(H) x 680.4(V) (54.6” diagonal) Proporcje obrazu: 16:9 Rozdzielczość: 1920x1080 Colors: 16.7M colors Jasność: 280 / 350 nits (Min. / Typ.) Współczynnik kontrastu: 1000:1 / 1400:1 (Min. / Typ.) Czas reakcji: 6ms Kąty widzenia: H = 178, V = 178 Backlight: LED Czas pracy podświetlenia: 50,000 Hours Typ Hardness: 7H -
TOUCH
Rodzaj/Technologia: Infrared Czułość dotyku: 32767 x 32767 Punkt dotyku: 10 point for gesture, 5 point for writing Response time: 15ms MAX. System: Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome -
INPUT
HDMI: x3 RGB / VGA: x3 Dźwięk: x3 (PC audio in) CVBS: x1 RS232: x1 OPS / ViewSonic PC module slot: N/A / x1 (for NMP710) -
OUTPUT
RGB / VGA: x1 Dźwięk: x1 (Earphone out) SPDIF: x1 (optical) -
SIEć LOKALNA
RJ45: x1 -
USB
Typ A: x3 (2.0); x1 (3.0) Typ B: x1 (for touch) -
GłOśNIKI
10W x 2 -
BUILT-IN PC
Procesor: ARM Cortex A9 Dual Core CPU Graphic: ARM Mali400 MP4 Pamięć: 1.5GB Pamięć masowa: 8GB Networking: Integrated 10/100/1000M Adaption -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table CVBS: 480i HDMI: 480i, 480p,720p, up to 1080 -
CONTROLS
Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist -
POWER
Napięcie: 100-240VAC +/- 10% Wide Range Zużycie energii: "On" 190W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W -
ERGONOMICS
Wall Mount (VESA® ): 400 x 400 (M8 x 20mm) -
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C) Wilgotność powietrza: 20% ~ 80% non-condensing -
DIMENSIONS (W X H X D)
Wymiary fizyczne (cale / mm): 51.77x31.69x3.66 / 1315x805x93 Opakowanie (cale/mm): 58.27x37.60x11.02 / 1480x955x280 -
WEIGHT
Waga netto (lb / kg): 119.05 / 54 Brutto (Ib/kg): 143.30 / 65 -
WARRANTY
**Warranty offered may differ from market to market -
WHAT'S IN THE BOX?
• CDE Interactive Large Format Display Monitor
• VGA cable
• Power cable x 4
• Remote control
• USB cable
• Audio cable
• Touching pen x 3
• User manual CD wizard
• RS232 adapter
• Wall Mount Kit: WMK-047 (in separate box, for Europe only)
