Key Features
  • SuperClear® IPS Technology for richer, sharper colors at wide angles
  • Full HD 1080p resolution
  • 75Hz refresh rate delivers fluid visuals
  • Three-sided frameless design for seamless viewing in multi-monitor setups
  • HDMI and VGA inputs for flexible connectivity

VA2232-H
Product Description
The ViewSonic VA2232-H is a 22” (21.5” viewable) Full HD Monitor with IPS technology and flexible connectivity for use in the office or at home. With SuperClear® IPS technology and Full HD resolution, images are clear and detailed from a wide range of viewing angles. HDMI and VGA inputs allow for increased setup flexibility when connecting with other devices. The VA2232-H’s three-sided frameless bezel delivers a seamless viewing experience and comes equipped with Eye Care technology to help eliminate eye strain resulting from extended viewing periods. VESA compatibility guarantees easy adaption to both multi-monitor and wall-mount set ups.

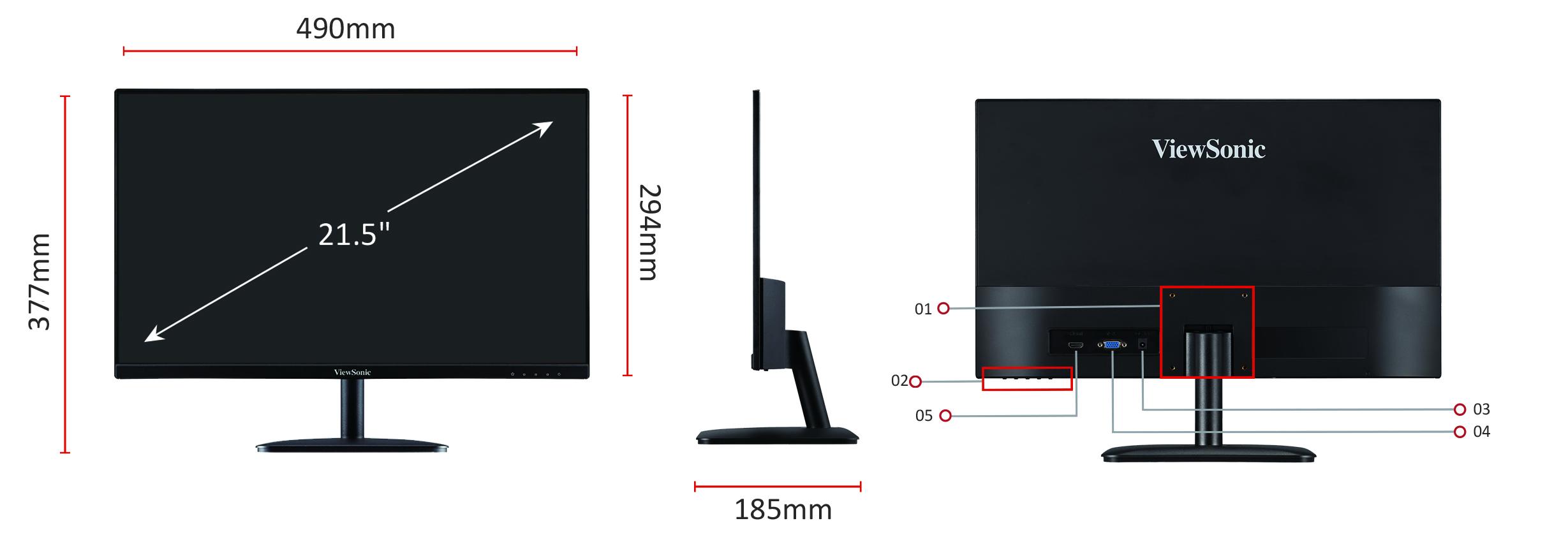

  1. VESA Compatible(Wall Mount 75 x 75mm)
  2. Menu Control Panel
  3. AC in
  4. VGA
  5. HDMI
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 75
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 103% size (Typ)
    Pixel Size: 0.248 mm (H) x 0.248 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    HDMI 1.4: 1
    Power in: DC Socket (Center Positive)
  • POWER
    Eco Mode (Conserve): 14W
    Eco Mode (optimized): 16W
    Consumption (typical): 22W
    Consumption (max): 24W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
    On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 75 x 75 mm
  • INPUT SIGNAL
    Frequency Horizontal: 24 ~ 86KHz
    Frequency Vertical: 48 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -3º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 5.3
    Net Without Stand (lbs): 4.2
    Gross (lbs): 7.7
  • WEIGHT (METRIC)
    Net (kg): 2.4
    Net Without Stand (kg): 1.9
    Gross (kg): 3.5
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 22 x 15 x 4.3
    Physical (in.): 19.3 x 14.8 x 7.3
    Physical Without Stand (in.): 19.3 x 11.6 x 1.4
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 560 x 380 x 110
    Physical (mm): 490 x 377 x 185
    Physical Without Stand (mm): 490 x 294 x 36
  • GENERAL
    PACKAGE CONTENTS: VA2232-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x2
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
