Key Features

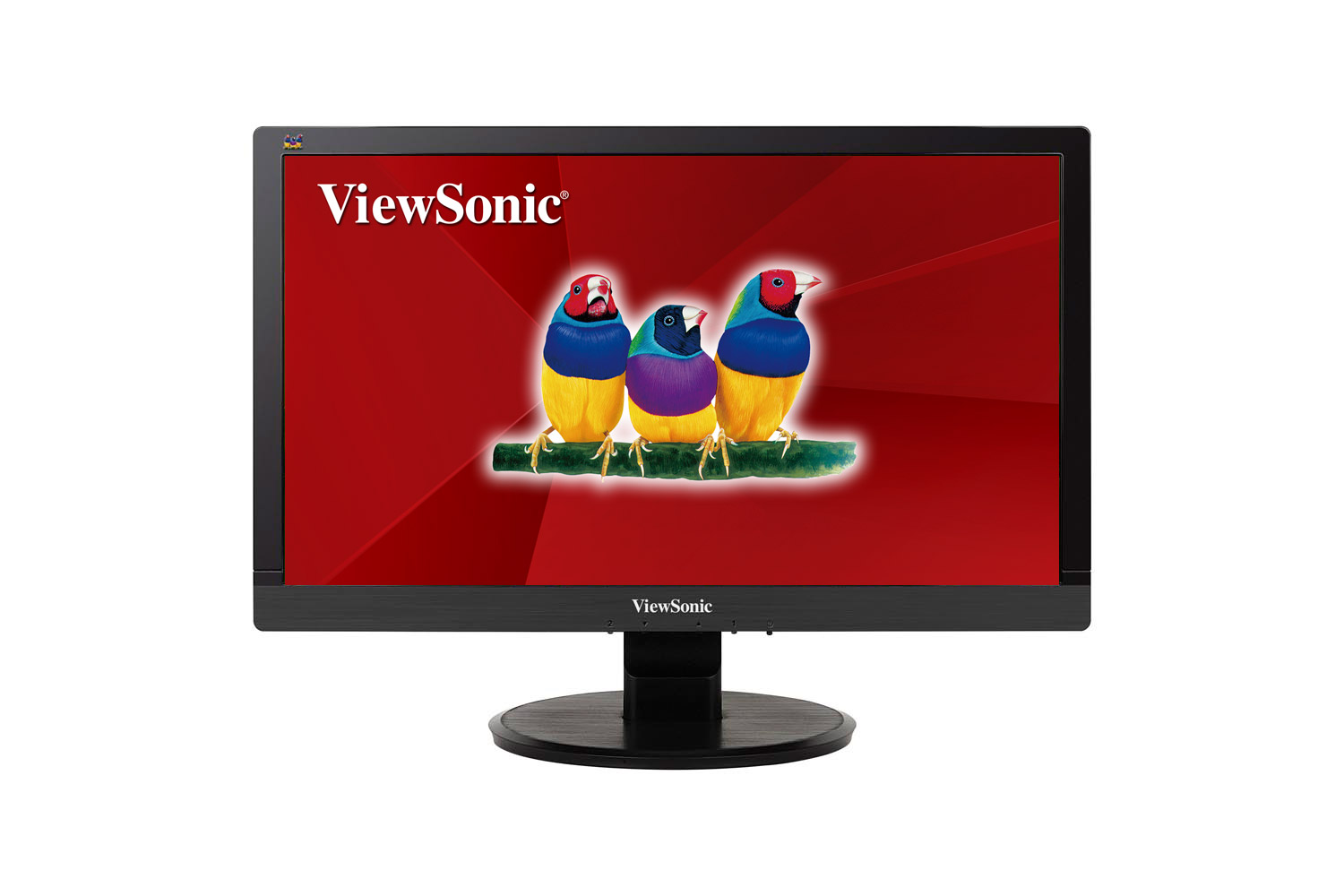

VA2055Sm
Product Description
The ViewSonic VA2055Sm features a 20" (19.5" Viewable) Full HD SuperClear® MVA widescreen panel with integrated dual 2W speakers. The monitor offers 1920x1080 resolution, 3,000:1 Contrast Ratio, VGA & DVI inputs, and a VESA mountable design. In addition, Flicker-Free and Blue Light Filter technology help to eliminate eye strain from extended viewing periods. Viewsonic’s exclusive ViewMode provides intuitive presets to deliver optimized screen performance in different applications. Lastly, included with Energy Star certification, EPEAT Silver, one of the industry’s best pixel performance policy, and energy saving Eco mode. All these features make the VA2055Sm a great long-term investment for any of your entertainment or professional needs.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 20
    Viewable Area (in.): 19.5
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 20ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 40000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.227 mm (H) x 0.221 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8/8.1/11 certified
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    3.5mm Audio In: 1
    DVI-I: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 14W
    Eco Mode (optimized): 18W
    Consumption (typical): 22W
    Consumption (max): 24W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 24 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - DVI-D
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -6º / 22º
  • WEIGHT (IMPERIAL)
    Net (lbs): 6.2
    Net Without Stand (lbs): 5.4
    Gross (lbs): 8.8
  • WEIGHT (METRIC)
    Net (kg): 2.8
    Net Without Stand (kg): 2.5
    Gross (kg): 4
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 20.9 x 15.9 x 4.3
    Physical (in.): 18.6 x 13.7 x 8.3
    Physical Without Stand (in.): 18.6 x 11.3 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 531 x 405 x 110
    Physical (mm): 472 x 349 x 212
    Physical Without Stand (mm): 472 x 288 x 48
  • GENERAL
    PACKAGE CONTENTS: VA2055SM x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
