Key Features
  • Versatile touch applications
  • Efficient multitasking
  • Touch annotation for presentations
  • Accurate yet smooth touch experience
  • Comfortable working angles & quickly start your work
  • Touch support with Windows, Android, Chrome, Linux and Raspberry Pi

*Due to a hardware incompatibility with macOS USB stack, TD2455 cannot support touch functions by vTouch temporarily.


TD2455
Product Description
With responsive in-cell touch technology and an advanced ergonomic design, the ViewSonic® TD2455 touch monitor delivers hands-on control for more productive workspaces and collaborative classrooms. With high-performance in-cell touch technology, this 24” (23.8” viewable) Full HD display provides smooth and responsive touch tracking, along with amazing screen performance, within a sleek and bezel-less design. USB Type-C connectivity offers a single-cable plug-and-play solution for laptops, while DisplayPort output enables easy screen mirroring or extended desktops ideal for office productivity and podium touch applications such as conference rooms or classrooms. A magnetic stylus pen lets you write or draw on screen, and easily attaches to the display stand for secure storage. So whether used on its own on office desktops, as a presentation station in corporate meeting spaces, or as a front-of-classroom interactive teaching hub, the TD2455 helps to boost efficiency and productivity. *Some laptops may need to enter BIOS mode and change the power management setting to “tap-to-wake”.

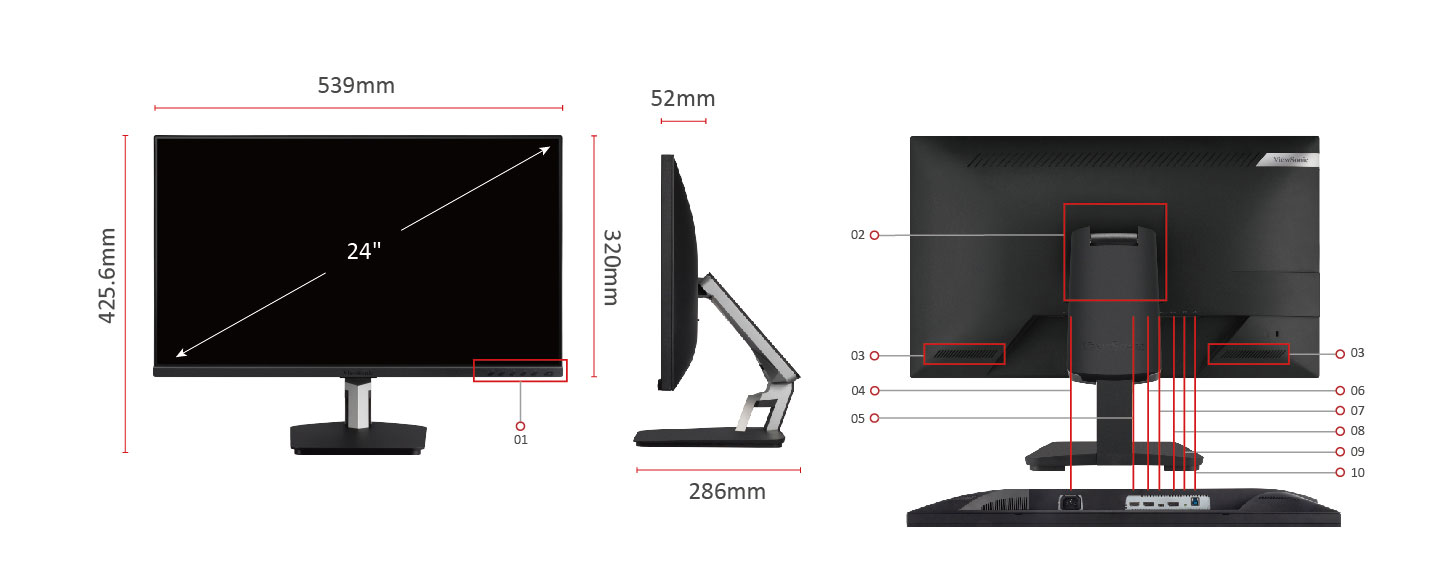

  1. Menu Controls
  2. VESA Compatible(Wall Mount 100x100mm)
  3. Internal Speakers
  4. AC IN
  5. HDMI
  6. DP IN
  7. USB Type C
  8. DP OUT(Output/MST daisy chain)
  9. Audio Out
  10. USB up stream
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 6ms
    Response Time (GTG w/OD): 6ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Blue Light Filter: Yes
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DisplayPort: 1
    DisplayPort Out: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 9.7W
    Eco Mode (optimized): 12.8W
    Consumption (typical): 17.9W
    Consumption (max): 20.4W
    Voltage: AC 100-240V
    Stand-by: 0.3W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 15 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
  • ERGONOMICS
    Tilt (Forward/Back): -5º / 60º
  • WEIGHT (IMPERIAL)
    Net (lbs): 14.2
    Net Without Stand (lbs): 8.2
    Gross (lbs): 18.6
  • WEIGHT (METRIC)
    Net (kg): 6.4
    Net Without Stand (kg): 3.7
    Gross (kg): 8.4
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 24.3 x 16.3 x 11.2
    Physical (in.): 21.2 x 16.8 x 11.3
    Physical Without Stand (in.): 21.2 x 12.6 x 2
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 617 x 415 x 285
    Physical (mm): 539 x 426 x 286
    Physical Without Stand (mm): 539 x 320 x 52
  • GENERAL
    PACKAGE CONTENTS: TD2455 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1, Passive touch pen x1, Passive touch pen head x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
