Key Features
  • SuperClear® technology
  • Frameless design
  • HDMI, DisplayPort and VGA inputs
  • 7H hardness screen
  • Supports Windows® 7/8/10/11 and selected Android and Linux

TD2430
Product Description
Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10/11, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more. *Supports Windows 7/8/10/11, Linux 2.6.38 or later, and Android 4.0 or later.

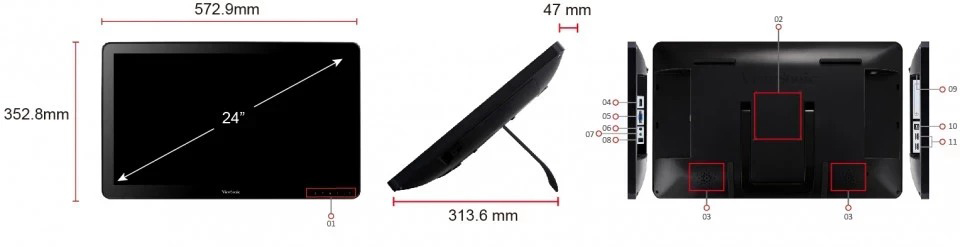

  1. Menu Control Panel
  2. VESA Compatible(Wall Mount 100 x 100mm)
  3. Internal Speakers
  4. DisplayPort
  5. VGA
  6. Headphone
  7. Audio In
  8. DC In
  9. HDMI
  10. USB 3.0 Type B
  11. USB 3.0 Type A (x2)
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.6
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 200 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 10ms
    Response Time (GTG w/OD): 10ms
    Response Time (Typical Tr+Tf): 25ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 40000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.272 mm (H) x 0.272 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.8mm
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 8/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DisplayPort: 1
    Power in: DC Socket (Center Positive)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 19W
    Eco Mode (optimized): 22W
    Consumption (typical): 25W
    Consumption (max): 28W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): 20º / 53º
  • WEIGHT (IMPERIAL)
    Net (lbs): 12.1
    Net Without Stand (lbs): 12.1
    Gross (lbs): 15.6
  • WEIGHT (METRIC)
    Net (kg): 5.5
    Net Without Stand (kg): 5.5
    Gross (kg): 7.1
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 25.3 x 17.1 x 5.5
    Physical (in.): 22.6 x 13.9 x 1.9
    Physical Without Stand (in.): 22.6 x 13.9 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 643 x 435 x 140
    Physical (mm): 573 x 353 x 47
    Physical Without Stand (mm): 573 x 353 x 47
  • GENERAL
    PACKAGE CONTENTS: TD2430 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards
