Key Features
  • Implemented antimicrobial technology on pen and housing
  • High Performance and e-Signature precision with 2048 pen pressure
  • Ergonomic design, VESA-compliance, and Kensington lock security
  • Windows® compatible and support e-Signature software
  • 8H tempered glass with anti-scratch, anti-glare, and anti-fingerprint
  • Ergonomic design in portrait and landscape mode

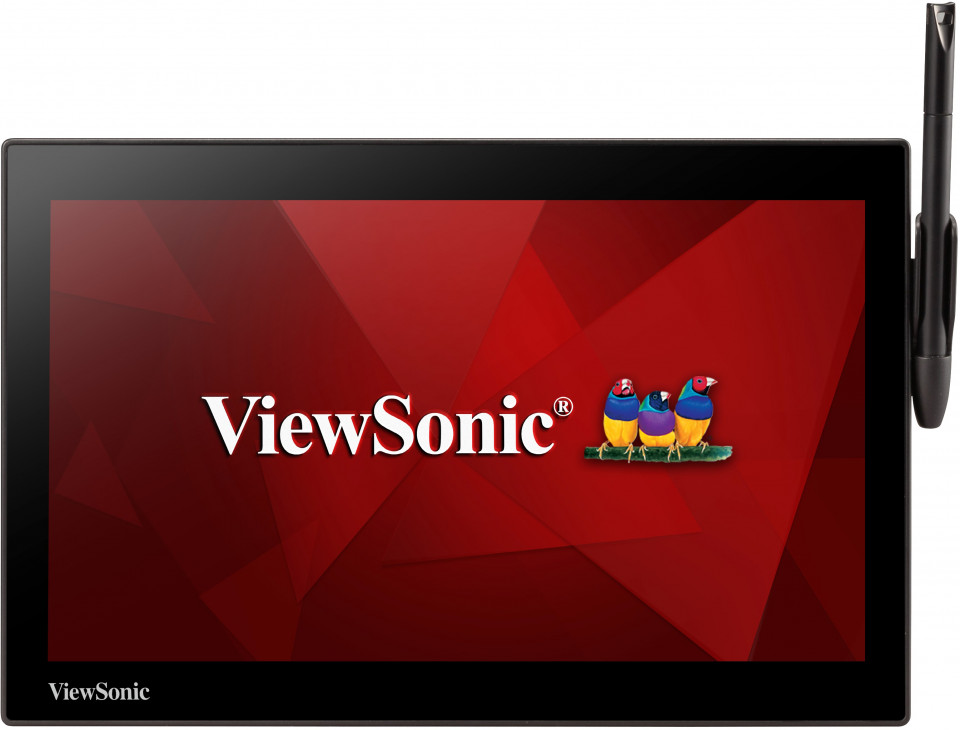

PD1213
Product Description
ViewSonic PD1213 is an ideal solution for optimizing user experience with streamlined service via Kiosk solution. 11.6 - inch LCD pen display offers intuitive writing, annotating, and signage capabilities for organizations that need to let customers use in portrait and landscape mode, making it easier for the user to view and signed documents. It’s an ideal e-Signature solution for corporate, banking, finance, hospitality, insurance, and healthcare.
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Display Area: 256.32 x 144.18 mm (11.6" TFT LCD)
    Optimum Resolution: 1920 x 1080 pixels
    Brightness: 200 cd/m2
    Contrast Ratio: 1000:1
    Backlight: LED Light-Bar
    Viewing Angles: H:170° (85°/ 85°) V:170° (85°/ 85°)
    Panel Surface: 8H tempered glass
  • CONNECTOR
    USB: Micro USB2.0
  • TOUCH
    Technology: EMP Technology
    Digitizer Resolution: 5080 LPI
    Writing Response: 250 PPS
    Accuracy: +/- 0.5mm(center)
    Pressure Level: 2048 levels
  • ERGONOMICS
    Tilt: Portrait : 0/ 15°/ 20°
    Landscape: 0/ 9°/ 13°
  • COMPATIBILITY
    PC: Windows 10, 11, and later
    (Win 7, Linux Ubuntu, Chrome OS by request)
  • POWER
    Voltage: USB 5V
    Consumption: 6.98W (Typ.)/ 7.63W (Max.)
  • OPERATING CONDITIONS
    Temperature (º F / º C): 0℃ to 50℃
    Humidity: 20%-80%(Max), Non-Condensation
  • DIMENSIONS W X H X D (INCH/MM)
    Physical (in / mm): 287.0 X 185.6 X 14.3 mm
    Box (in / mm): 350.0 X 273.0 X 76.0 mm
  • WEIGHT
    Net (lb / kg): 0.72 kg
    Gross (lb / kg): 1.15 kg
  • REGULATIONS
    CE/ FCC/ BSMI
  • WARRANTY
    1 Year
  • WHAT'S IN THE BOX
    1. PD1213 Pen Display x 1
    2. USB 2.0, 2 in 1 Y-cable (Micro USB to Type A x 2) x 1
    3. EMP-001 Pen x 1
    4. Replacement Pen nib x 3
    5. Pen tether x 1
    6. Nib removal tool x 1
    7. Screwdriver x 1
    8. AC/DC Power Adapter 5V/2A x 1
    9. Quick Start Guide x 1
