Key Features
  • 2nd Generation Laser phosphor technology with 20,000 hours lifespan
  • 0.81-0.89 short throw ratio
  • Wide H/V lens shift
  • 360° Creative Applications & 90° Portrait Mode
  • Built-in HDBaseT receiver

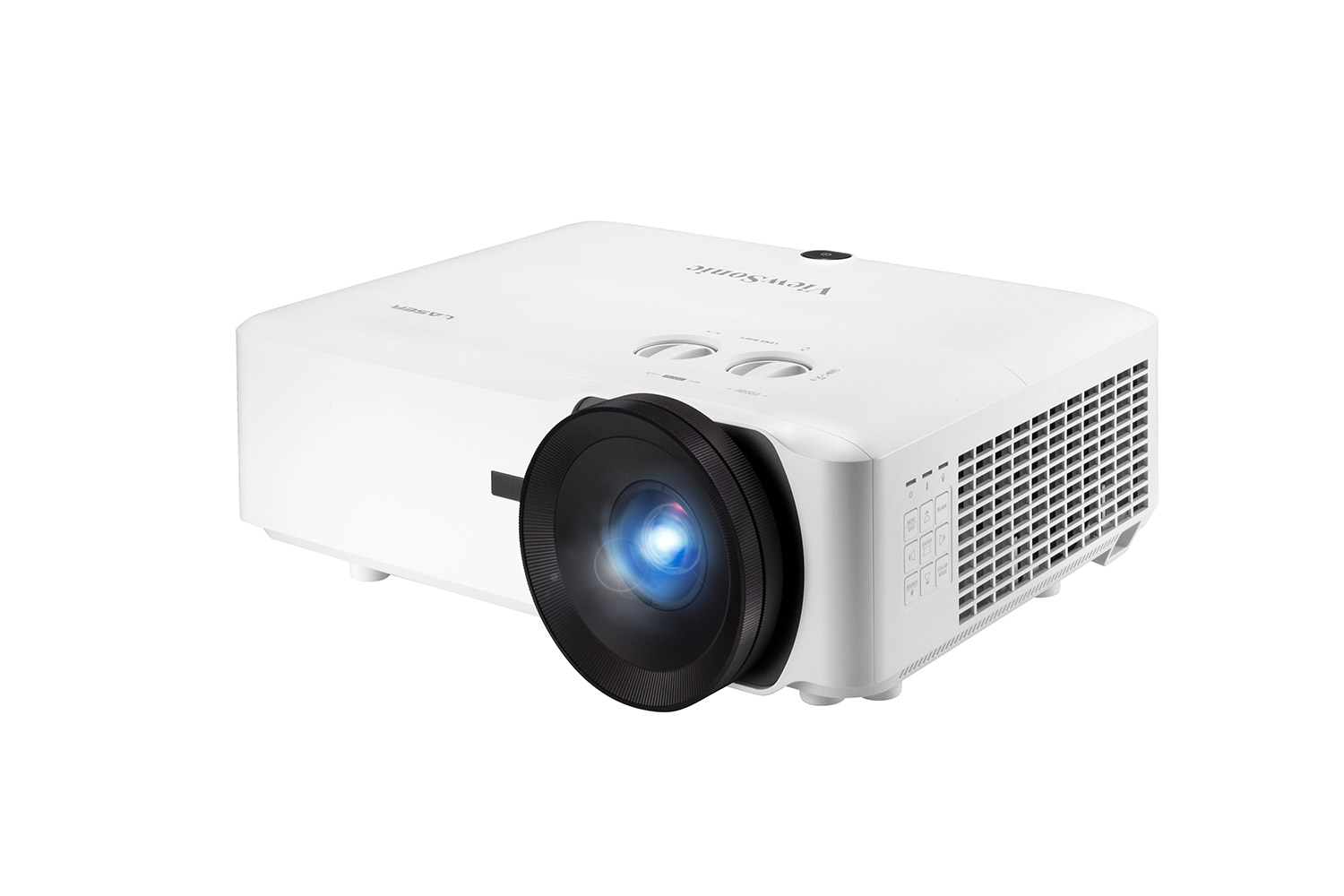

LS860WU
Product Description
ViewSonic LS860WU is an advanced 5,000 ANSI Lumens WUXGA short throw installation projector. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection and portrait mode together build up amazing flexibility to create an overwhelmingly immersive experience, especially ideal for blending projection applications in simulation/experience centers, restaurants and gyms. Adding on to that are the compact size and built-in HDBaseT, ensuring the cost-effectiveness desired.
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1920x1200
    Brightness: 5000 (ANSI Lumens)
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor system
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lamp Watt: Nichia 67W x2
    Lens: F=1.83-1.86, f=8.6-9.4mm
    Projection Offset: 0%
    Throw Ratio: 0.81-0.89
    Optical Zoom: 1.1X
    Digital Zoom: 0.8x-2.0x
    Image Size: 60"-200"
    Throw Distance: 1.04-3.83m
    (100"@1.74m)
    Keystone: H:+/-40° , V:+/-40°
    Lens Shift V. Range: +50%, -50%
    Lens Shift H. Range: +23%, -23%
    Audible Noise (Normal): 35dB
    Audible Noise (Eco): 28dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    3D VESA (Sync): 1
    HDBaseT: 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W x2
    USB Type A (Power): 1 (5V/1.5A)
    12V Trigger (3.5mm): 1
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 430W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 6.6kg
    Gross Weight: 9.1kg
    Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
    Packing Dimensions: 515x490x276mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    (w/ laser pointer)
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
