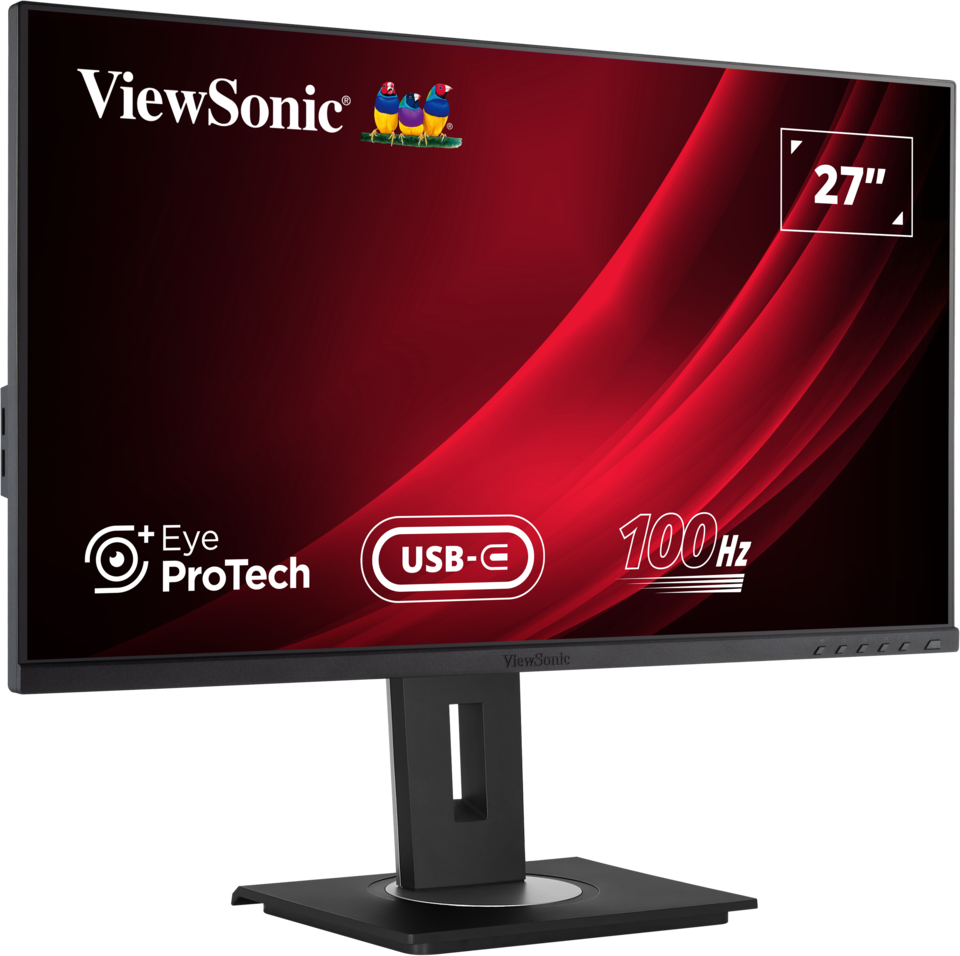

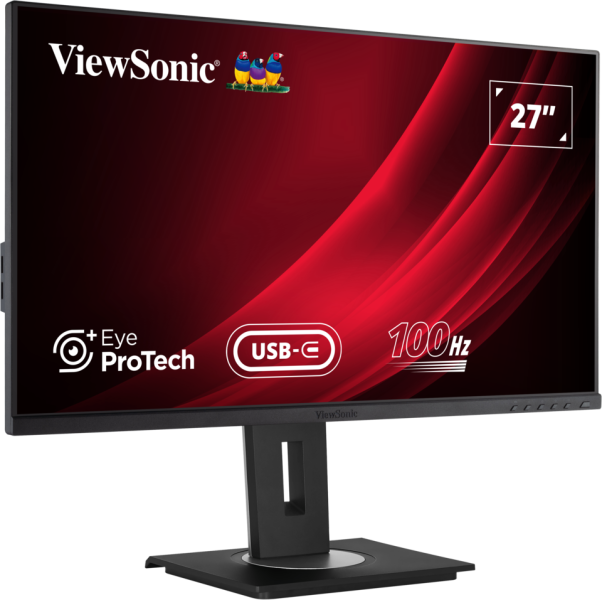

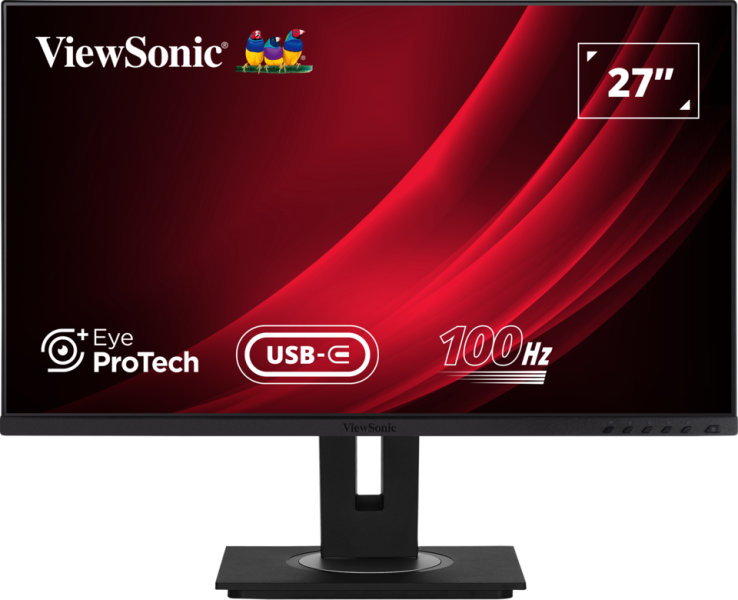

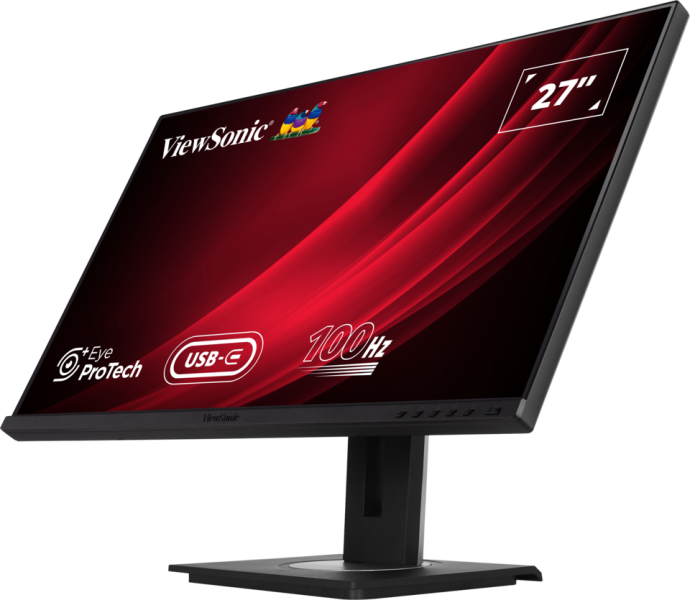

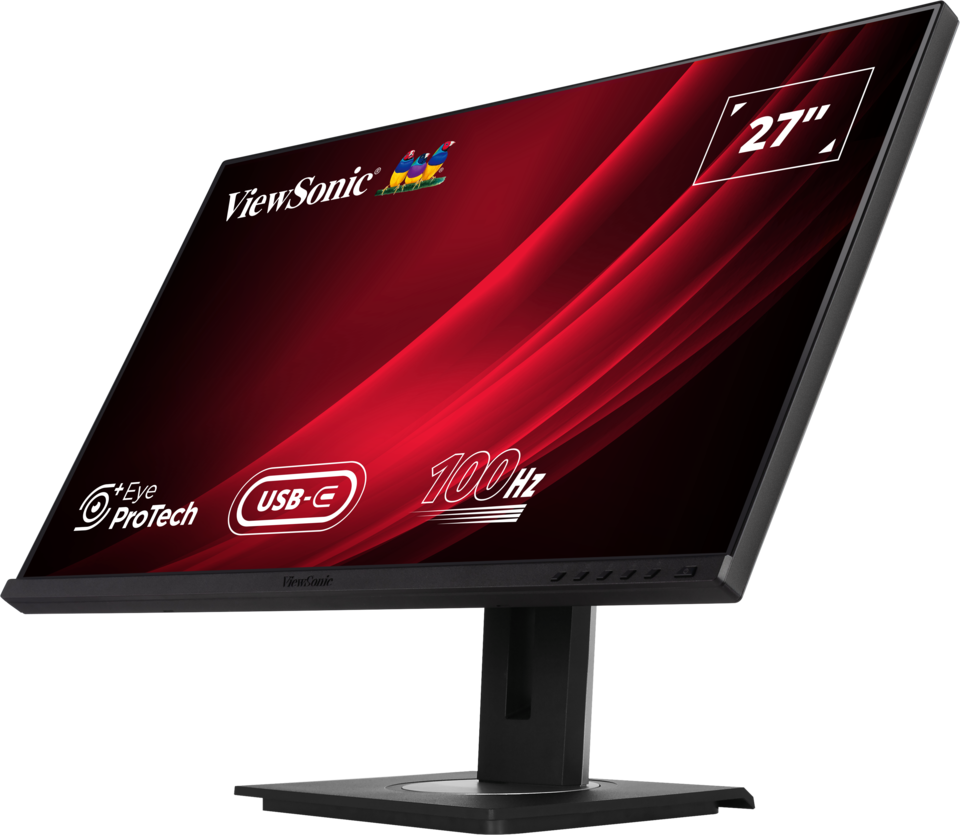

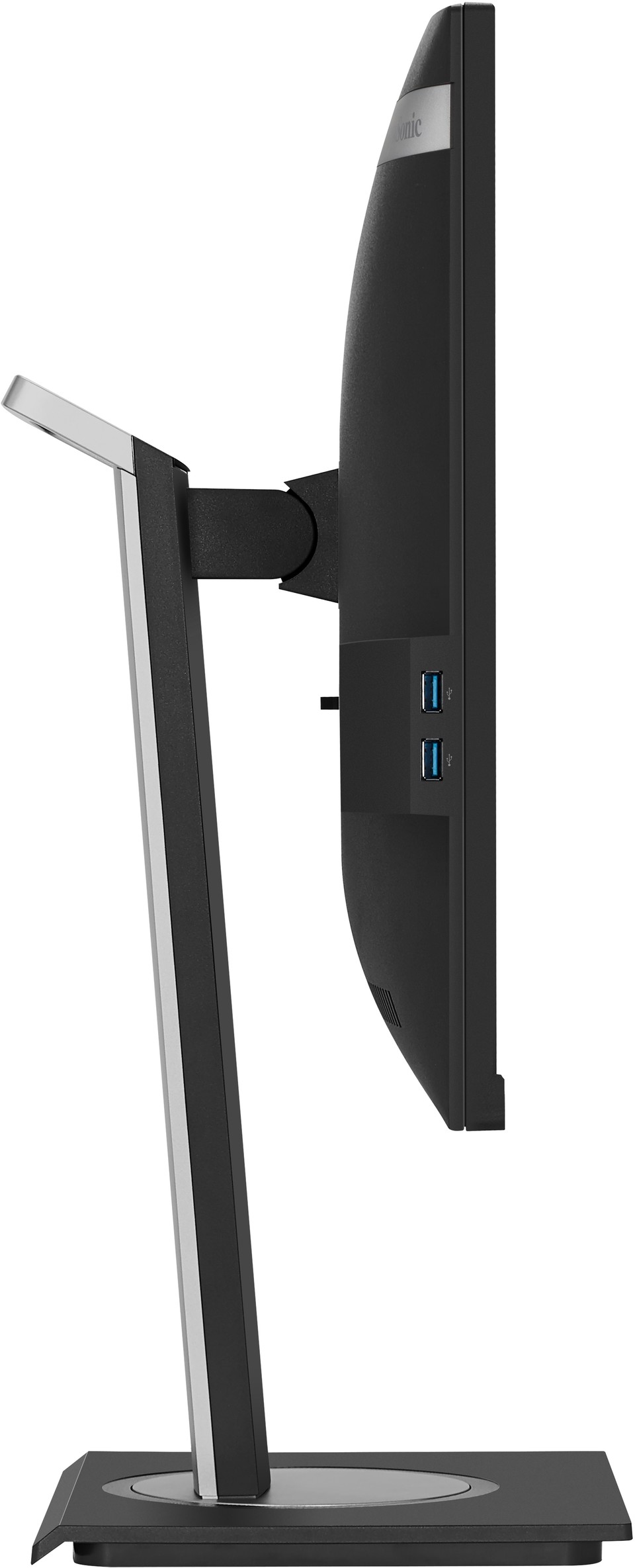

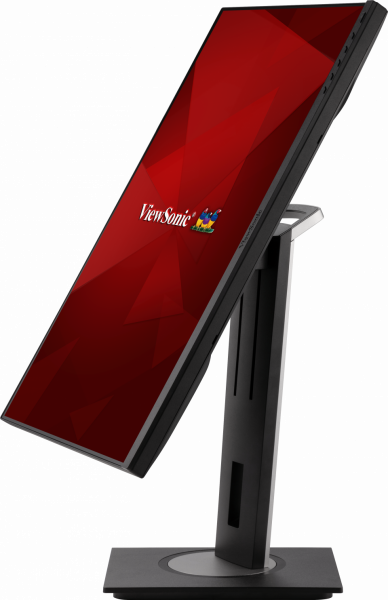

VG2755

27” Advanced Ergonomics Business Monitor

USB Type-C
Full HD 1080p resolution
Frameless bezel
SuperClear® IPS technology
VGA, HDMI and DisplayPort inputs

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Response Time (Typical Tr+Tf): 15ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size / 94% coverage (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1

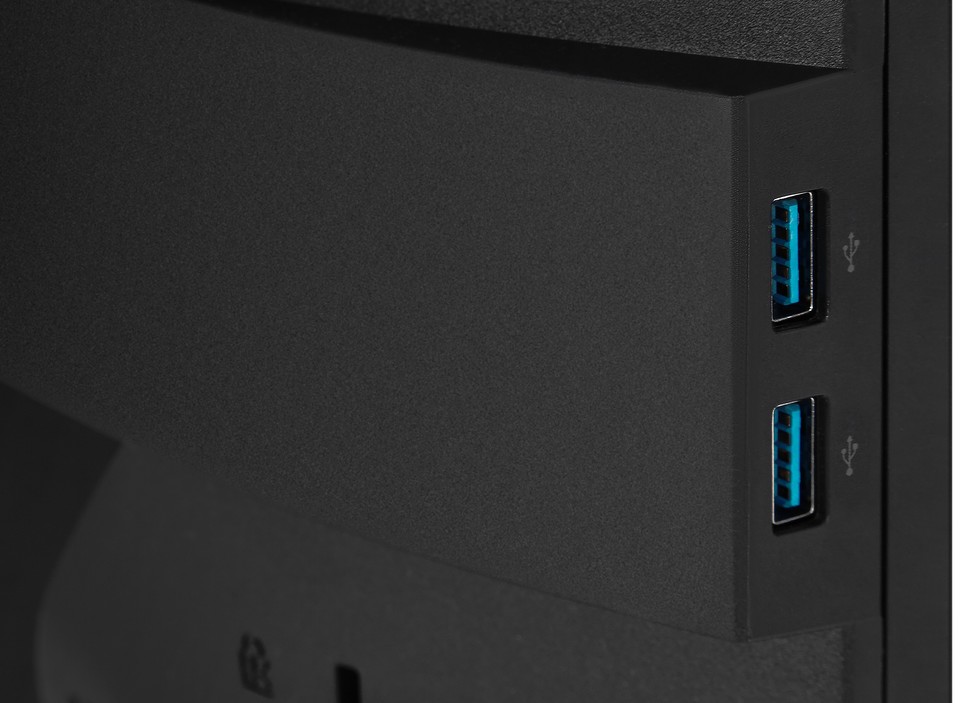

USB 3.2 Type A Down Stream: 3
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 13W
Eco Mode (optimized): 15.6W
Consumption (typical): 19.1W
Consumption (max): 22.54W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz, Type C: 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz, Type C: 24 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
Analog Sync: Separate/Composite/SOG - RGB Analog

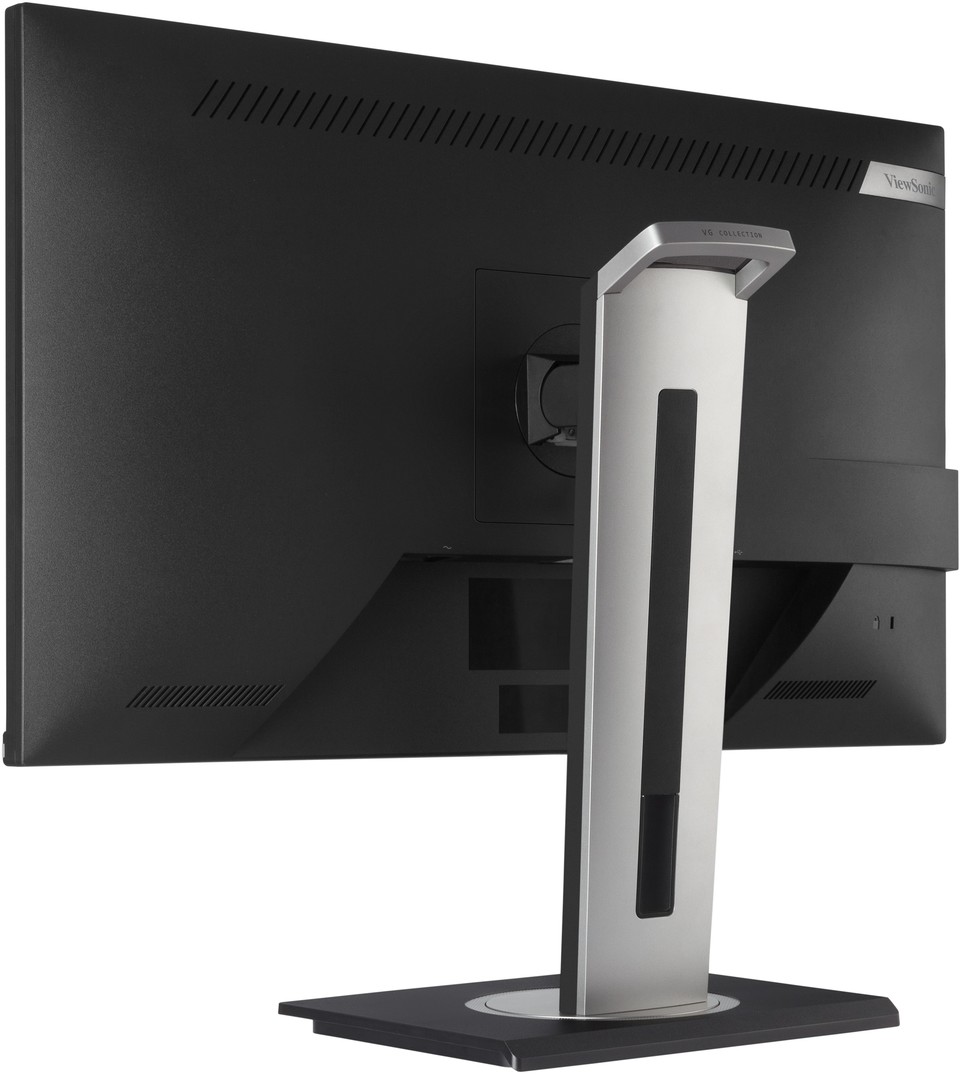

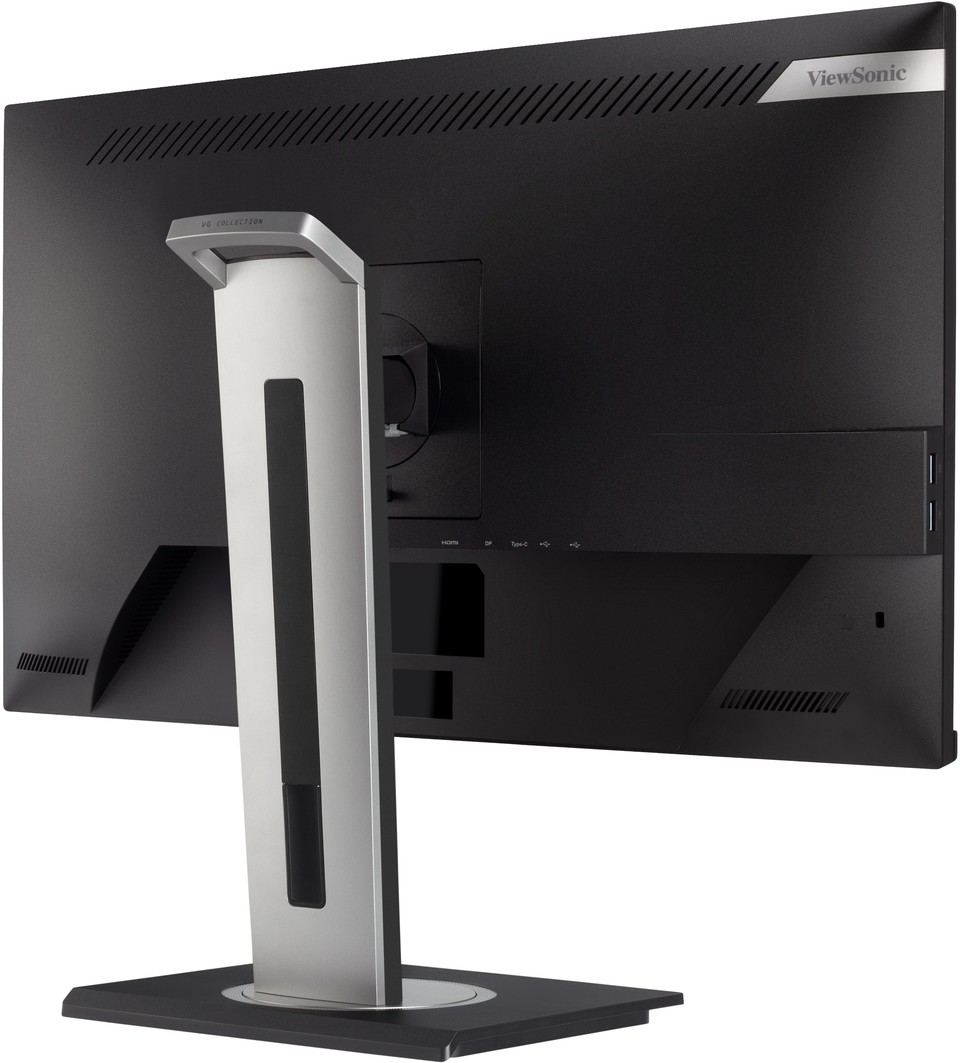

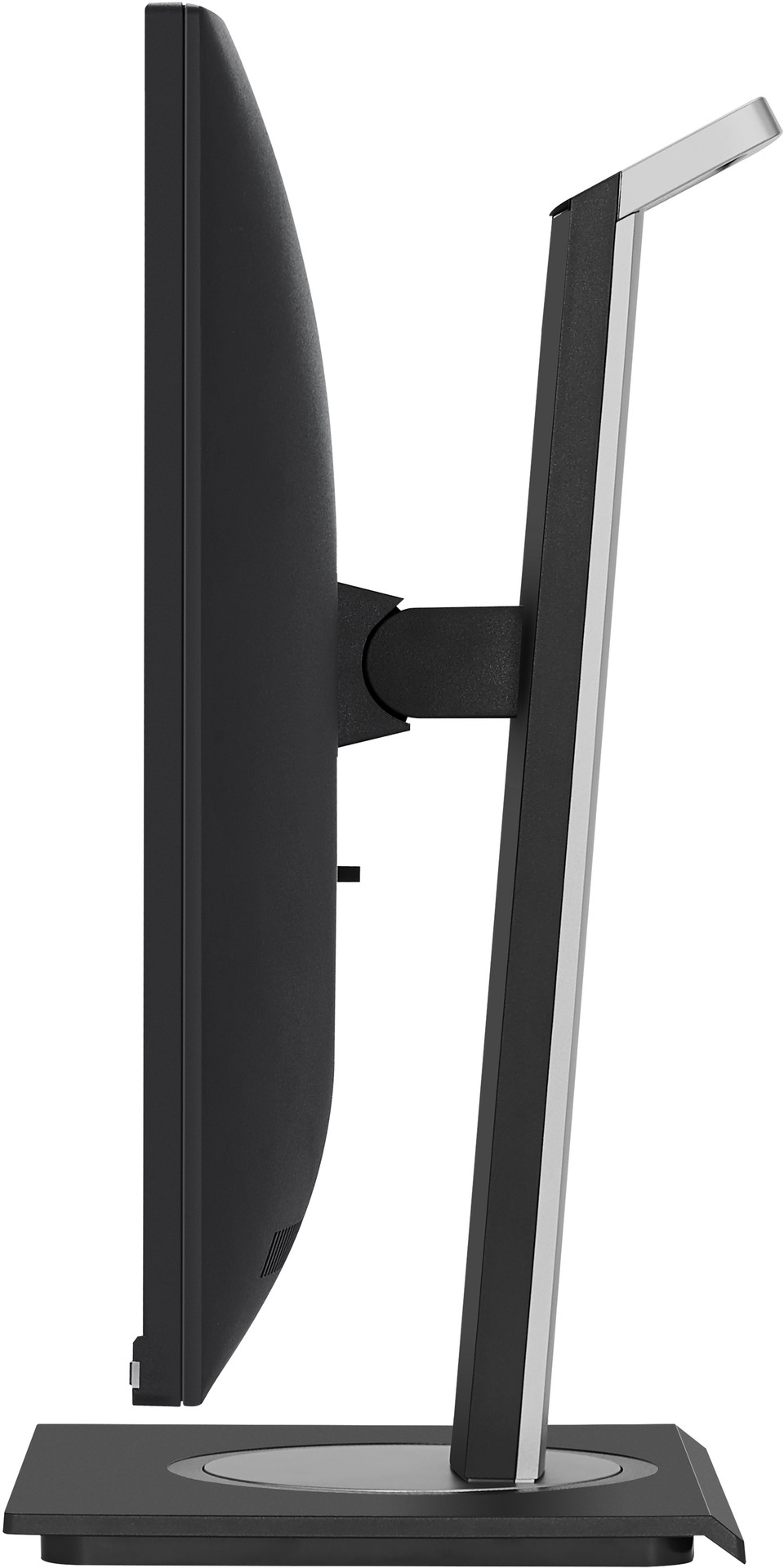

Ergonomics
Height Adjust (mm): 130
Swivel: 120º

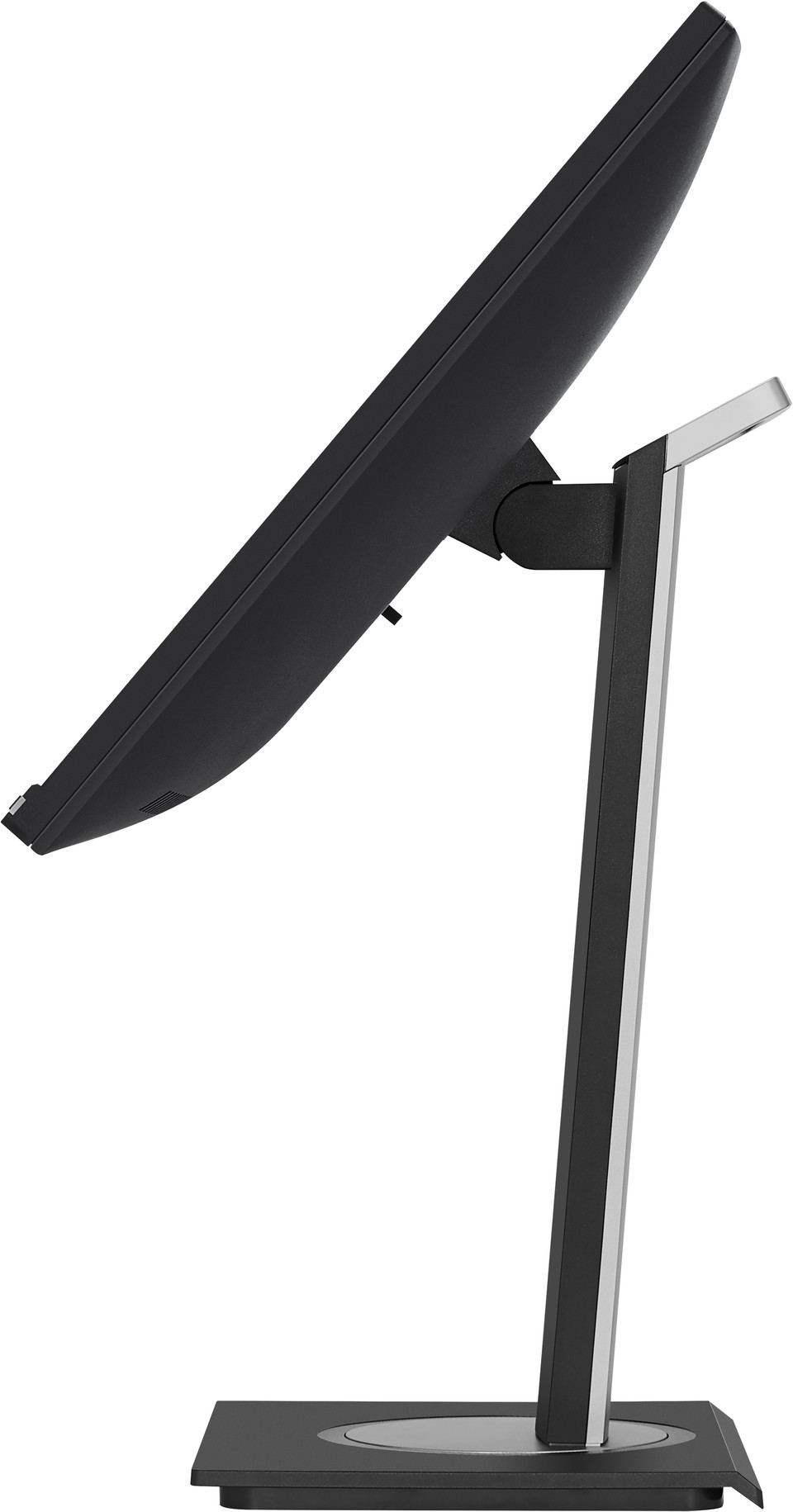

Tilt (Forward/Back): -5º / 40º

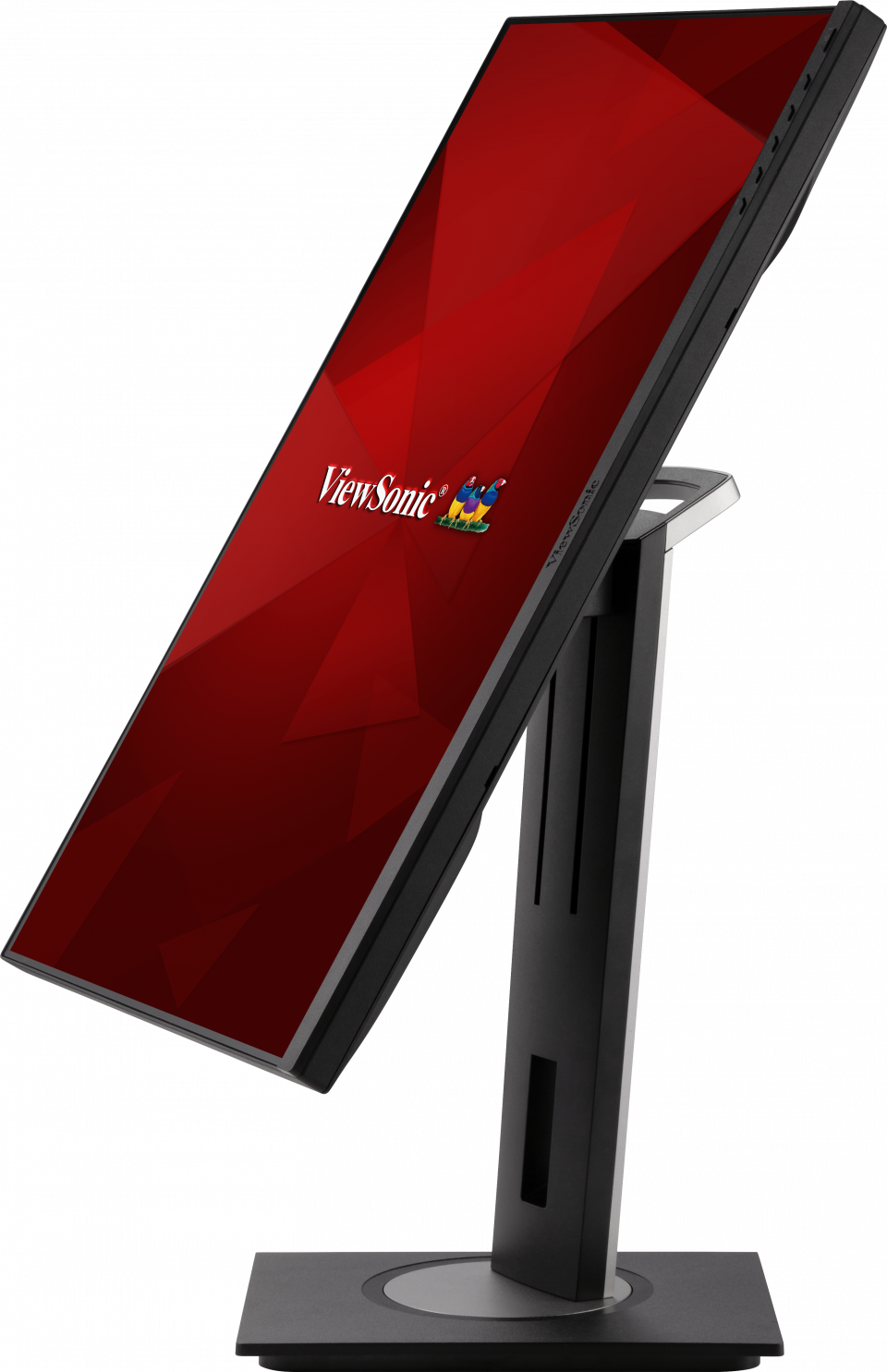

Pivot (Right/Left): 90º / 90º
Weight (imperial)
Net (lbs): 16.5
Net Without Stand (lbs): 11.2
Gross (lbs): 23.6
Weight (metric)
Net (kg): 7.5
Net Without Stand (kg): 5.1
Gross (kg): 10.7
Dimensions (imperial) (wxhxd)
Packaging (in.): 27.2 x 16.9 x 8.6
Physical (in.): 24.1 x 15.99~20.99 x 8
Physical Without Stand (in.): 24.1 x 14.2 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 692 x 430 x 218
Physical (mm): 612 x 406.19~533.24 x 202
Physical Without Stand (mm): 612 x 362 x 52
General
PACKAGE CONTENTS: VG2755 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
