LCD Display
VX2768-PC-MHD
Key Features
- 1500R curved screen for a perfect balance of immersion and comfort
- 165Hz refresh rate ensures clarify in motion
- 1ms (MPRT) response time ensures smooth images
- AMD FreeSync™ Premium prevents screen tearing
- FHD 1080p resolution for clear detail
Product Description
With an ultimate immersive curved screen and 165Hz refresh rate, the ViewSonic VX2768-PC-MHD provides a stunning viewing experience.The monitor has been designed with a 1500R curved and borderless panel for an immersive experience. A high 165Hz refresh rate delivers clarity in motion while AMD FreeSync™ Premium, virtually eliminates screen tearing and stuttering for a fluid gaming experience. With 1ms MPRT response time, the monitor delivers smooth images without ghosting. The VX2768-PC-MHD is also equipped with ViewSonic’s exclusive ViewMode™ presets, which offer user-customized game modes, including FPS, RTS and MOBA game settings. In addition, a DisplayPort and two HDMI inputs offer flexible connectivity for gameplay.
- VESA Compatible(Wall Mount 100 x 100mm)
- Menu Controls
- Internal Speakers
- AC In
- Earphone
- DisplayPort
- HDMI x 2
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 27 Viewable Area (in.): 27 Panel Type: VA Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 3,000:1 (typ) Dynamic Contrast Ratio: 80M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + FRC) Aspect Ratio: 16:9 Response Time (MPRT): 1ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: 1500R Refresh Rate (Hz): 165 Variable Refresh Rate Technology: FreeSync Premium Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 85% size (Typ) sRGB: 120% size (Typ) Pixel Size: 0.311 mm (H) x 0.311 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 -
CONNECTOR
3.5mm Audio Out: 1 HDMI 1.4: 2 DisplayPort: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
AUDIO
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 17W Eco Mode (optimized): 22W Consumption (typical): 26W Consumption (max): 40W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: Joystick key: Up, Right, Down, Left, Center; Key 1 (favorite); Key 2 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: HDMI (v1.4): 30 ~ 180KHz, DisplayPort (v1.2): 30 ~ 200KHz Frequency Vertical: HDMI (v1.4): 48 ~ 144Hz, DisplayPort (v1.2): 48 ~ 165Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2) -
ERGONOMICS
Tilt (Forward/Back): -3º / 21º -
WEIGHT (IMPERIAL)
Net (lbs): 11 Net Without Stand (lbs): 9.6 Gross (lbs): 14.9 -
WEIGHT (METRIC)
Net (kg): 5 Net Without Stand (kg): 4.4 Gross (kg): 6.8 -

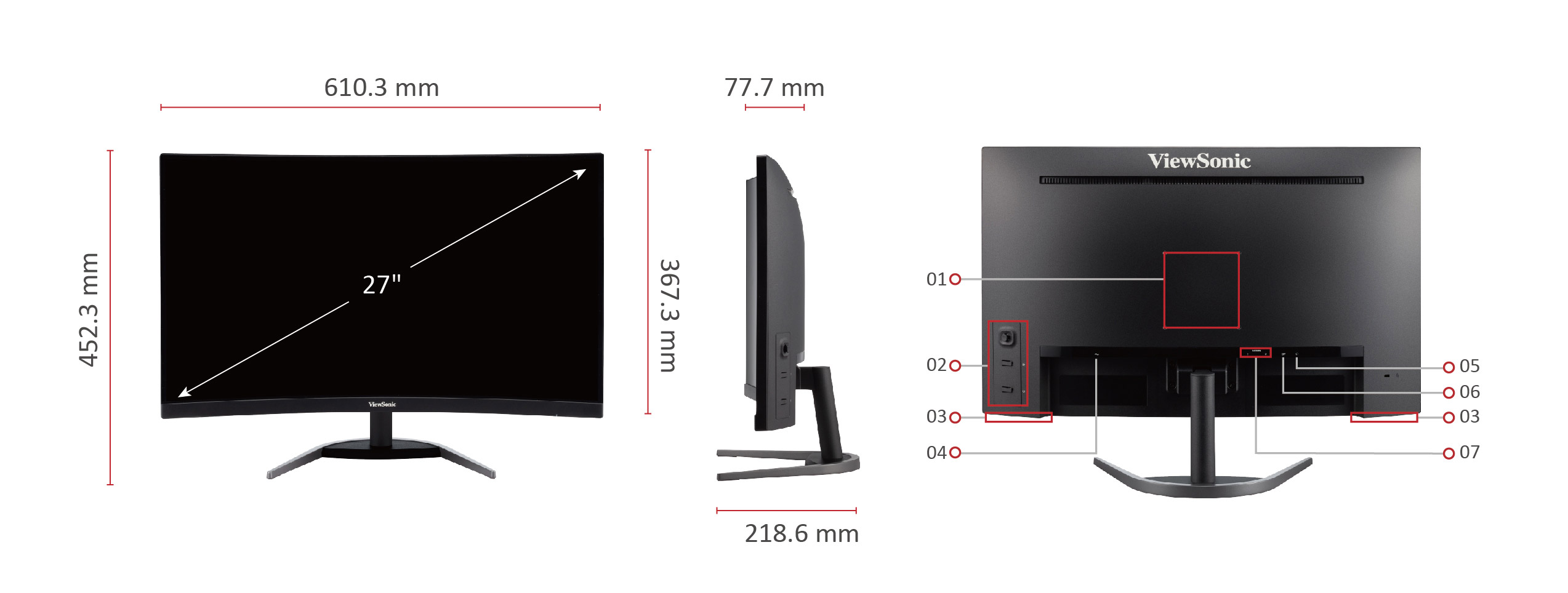

DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 26.8 x 18.4 x 6.5 Physical (in.): 24 x 17.8 x 8.6 Physical Without Stand (in.): 24 x 14.5 x 3.1 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 680 x 467 x 166 Physical (mm): 610 x 452 x 219 Physical Without Stand (mm): 610 x 367 x 78 -
GENERAL
PACKAGE CONTENTS: B08D5L82B6 xVX2768-PC-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1, Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
