LCD Display
VG2239m-LED
Key Features
Product Description

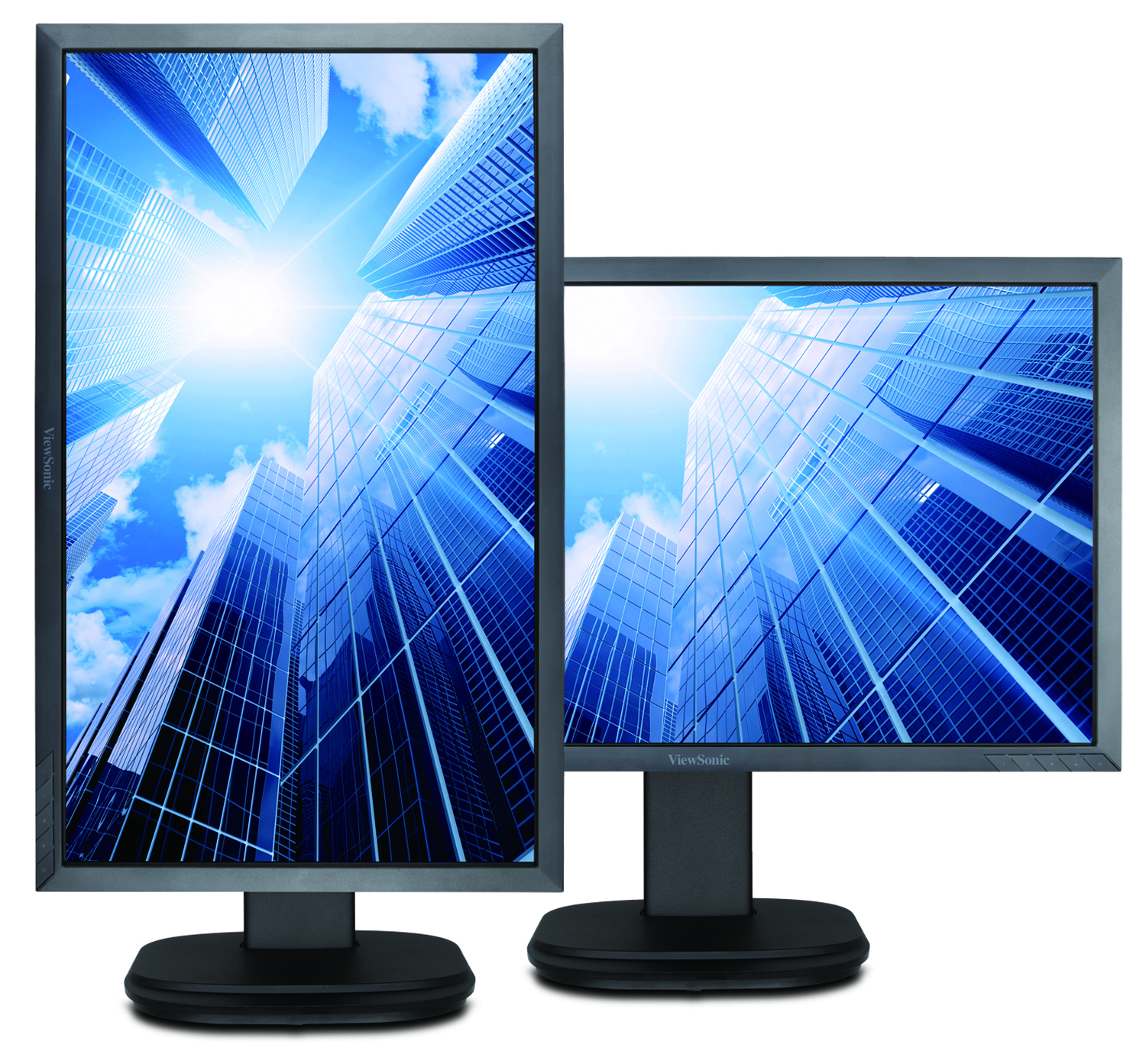

The VG2239m-LED widescreen monitor is one of two new members of ViewSonic’s new VG39 family. Its 56cm/22” (55cm/21.5” viewable) display with a native Full HD resolution. What makes it even more appealing is the LED backlight for up to 50% energy savings. This monitor is also fully ergonomic with 90º pivot, height adjust, swivel and tilt. The slim bezel design coupled with hidden stereo speakers make the VG2239m-LED a space saver. You can put it on your desk or mount on your wall or on any VESA compliant monitor stand.
Visit Us
- www.viewsonic.com
-
LCD
Type: 56cm / 22” (55cm / 21.5” viewable) wide Display Area: 21.5 inch Optimum Resolution: 1920x1080 Contrast Ratio: 1000 :1 (typical), 20,000,000:1 (DCR) Brightness: 250 cd/m2 (typ) Viewing Angles: 170º horizontal, 160º vertical Response Time: 5ms Panel Surface: Anti-glare, hard-coating (3H) Light Source: 30,000 hours (min.) -
VIDEO INPUT
Analog: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p) Digital: DVI-D (TMDS, 100Ω), Display Port Frequency: Fh: 24-82KHz; Fv: 50-75Hz Sync: H/V separated (TTL) -
COMPATIBILITY
PC: VGA up to 1920 x 1080 @ 60Hz (preferred) Mac: Power Mac (up to 1920 x 1080) -
CONNECTOR
Analog: 15-pin mini D-sub (VGA) Digital: DVI-D (with HDCP), DisplayPort USB: x 2 (V2,0, 1-up / 2-down) Audio: Out: 3.5mm Headphones; In:3.5mm Power: Internal Power Board, 3-pin plug (CEE22) -
AUDIO
Speakers: 2 watt (x2) -
POWER
Voltage: AC 100–240V (universal), +/-10% Wide Range Consumption: 24W (Typ.); Optimize: 19W (Typ.); Off/Standby <= 0.5W -
CONTROLS
Basic: Power, 1, down, up, 2 OSD: Auto Image Adjust, Contrast/Brightness, Input Select, DisplayPort, Audio Adjust, Audio Input, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
-
OPERATING CONDITIONS
Temperature: 32° F to 104° F (0° C to 40° C) Humidity: 10% to 90% (non-condensing) -
DIMENSIONS
Physical: 512.4mm (width) x 418mm (height) x 239.6mm (depth) -
WEIGHT
Net: 4.7 kg -
WALL MOUNT
VESA® 100x100 mm
