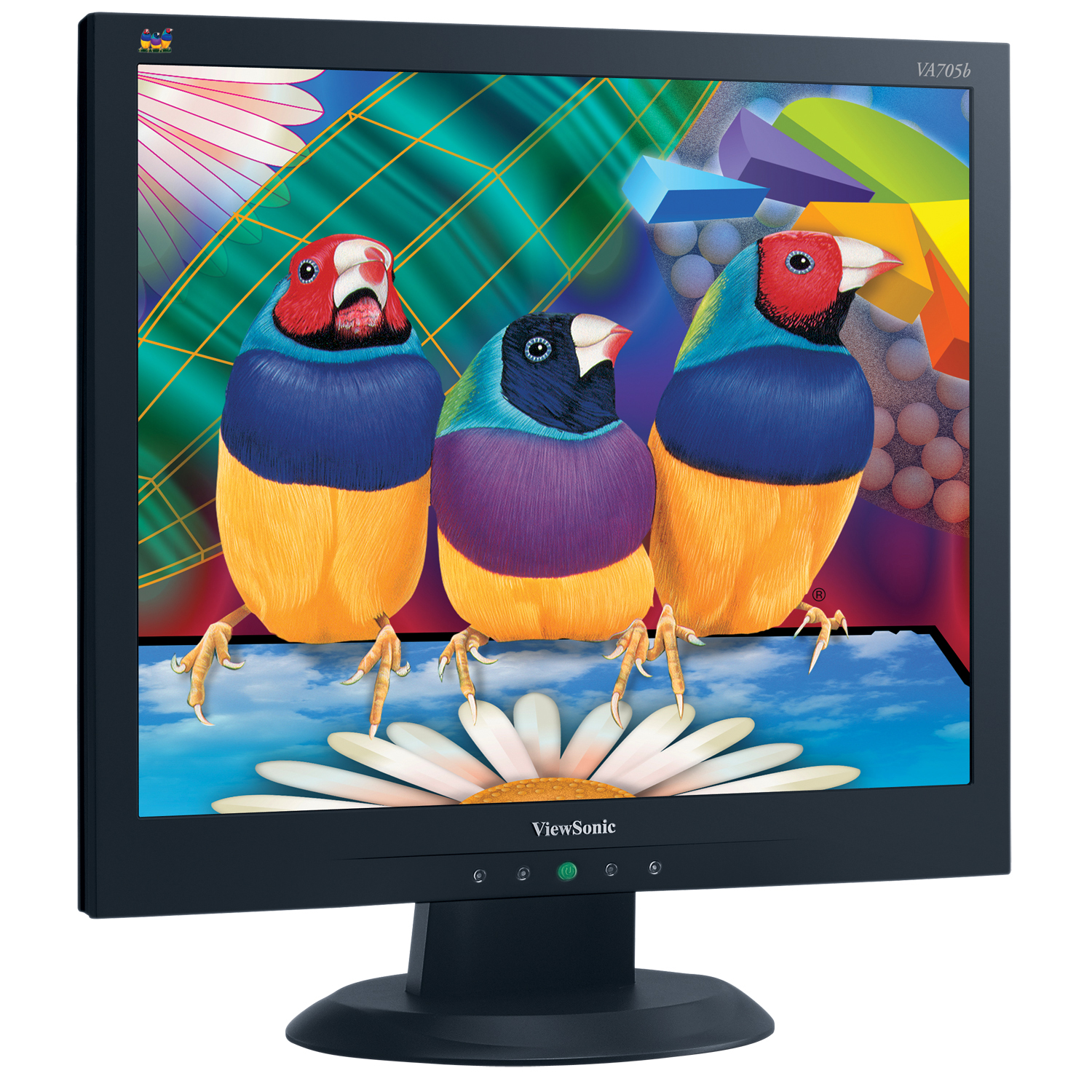

LCD Display
VA705b
Key Features
Product Description
ViewSonic's RELIABLE PERFORMER DELIVERS ON A PROMISE OF QUALITY STANDARDS like 250cd/m2 of brightness and 1000:1 contrast ratio or stunning, bright images. The VA705b features a 5ms video response time that produces crystal-clear graphics and HD quality video for full brilliant, detailed color. SIMPLICITY IS EXECUTED THROUGH ITS CLEAN LINES, SLIM BEZEL. The VESA® wall mount makes the VA705b an unobtrusive integration to any decor. Packed with a powerful OnView® control interface, precise performance is always a priority in this extremely affordable package. The stylish VA705 LCD display is an ideal choice for SOHO, education and government users.
Visit Us
- www.viewsonic.com
-
LCD
Type: 17" Color TFT Active Matrix LCD Display Area: 17 inch Optimum Resolution: 1280x1024 Contrast Ratio: 1000:1 (typical) Brightness: 250 cd/m2 (typ) Viewing Angles: 160° horizontal, 160° vertical (CR≥10 / CR≥5 Response Time: 5ms Panel Surface: Anti-Glare, Hard coating (3H) Light Source: 50,000 hours (minium) -
VIDEO INPUT
Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p) Frequency: Fh: 24-82KHz; Fv: 50-75Hz Sync: Separate Sync -
COMPATIBILITY
PC: VGA up to 1280×1024 Non Interlaced Mac: 1280×1024 Non Interlaced -
CONNECTOR
Analog: 1×15 pin mini D-sub Power: Built-in power Adapter, 3-Pin plug -
POWER
Voltage: AC 100-240V (Universal); 50/60Hz(Switch) Consumption: 19W (typical) / 20.5W (maximum) -
CONTROLS
Basic: [1], [2], Power, Down, Up OSD: Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 6500K, 5400K, User Color [R, G, B], Information, Manual Image Adjust H/V Position, Horizontal Size, Fine Tune, Sharpness, Setup Menu Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, OSD Pivot, Memory Recall
-
OPERATING CONDITIONS
Temperature: 0 - 40 (°C) / 32 - 104 (°F) Humidity: 10 - 90 (%) -
DIMENSIONS
Physical: 379mm (width) x 400mm (height) x 210mm (depth) -
WEIGHT
Net: 4.0 kg -
WALL MOUNT
100mm x 100mm
